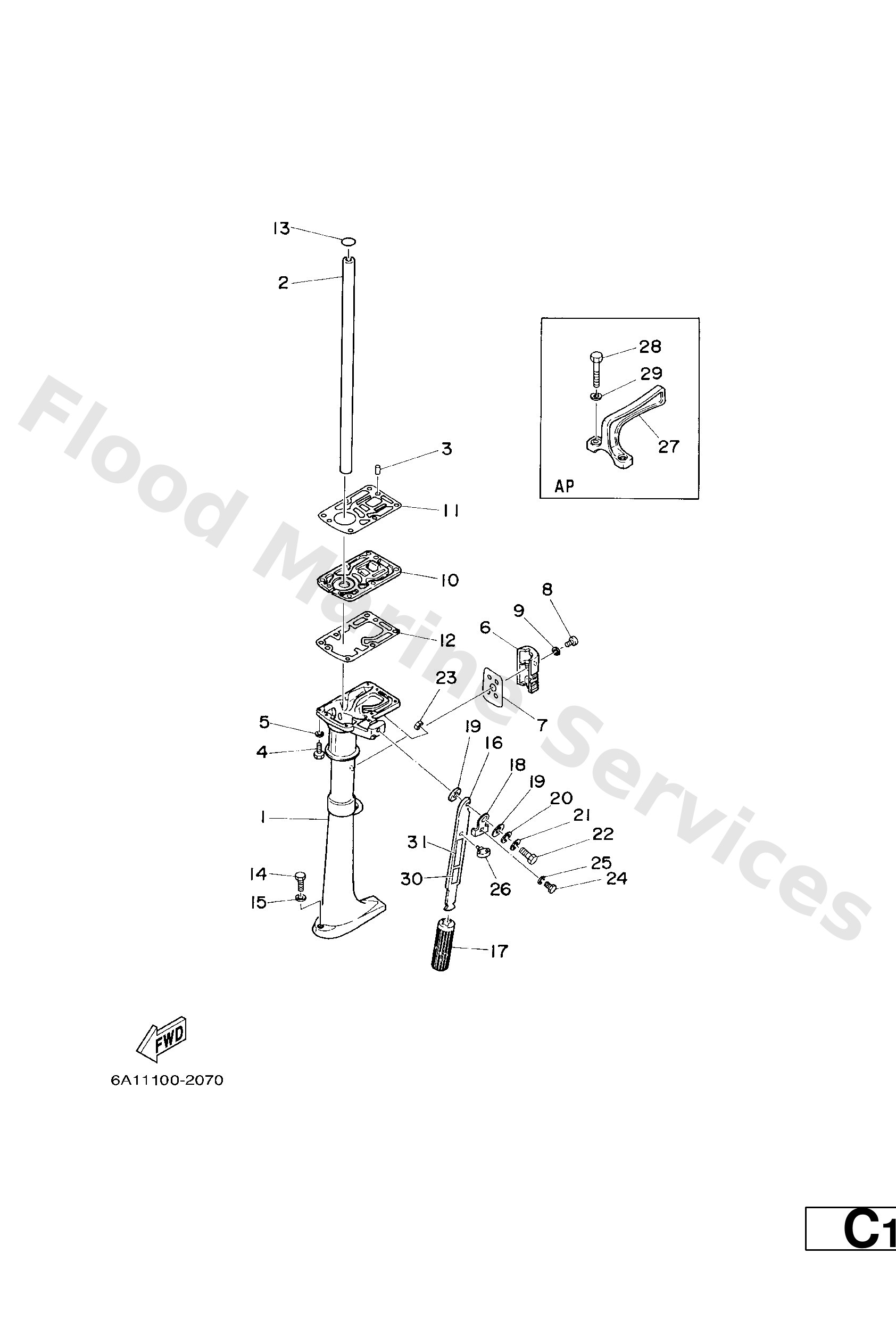

Diagram: UPPER CASING

Diagram

Parts List

6A145111024D
Casing, upper
Diagram Reference: 1
Get Part
6A14511300
Pipe
Diagram Reference: 2
Get Part
9360515065
Pin, dowel
Diagram Reference: 3
Get Part
97095--06025
Bolt
Diagram Reference: 4
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 5
Get Part
6A14515100
Cover, upper casing
Diagram Reference: 6
Get Part
6A14511500
Gasket, upper casing
Diagram Reference: 7
Get Part
97880--06016
Screw pan head
Diagram Reference: 8
Get Part
92990--06600
Washer, plain (646)
Diagram Reference: 9
Get Part
6A141137005B
Guide,exhaust
Diagram Reference: 10
Get Part
6A114613A0
Gasket,exhaust 1
Diagram Reference: 11
Get Part
64614623A1
Gasket, exhaust
Diagram Reference: 12
Get Part
93210--19123
O-ring (646)
Diagram Reference: 13
Get Part
97095--06030
Bolt(jf7)
Diagram Reference: 14
Get Part
6A142111004D
Handle, steering
Diagram Reference: 16
Get Part
6464211902
Grip, steering handle
Diagram Reference: 17
Get Part
6A14218100
Washer
Diagram Reference: 18
Get Part
9020109117
Washer 1 6154367300
Diagram Reference: 19
Get Part
92990--08200
Ybs66-8 washer, plain
Diagram Reference: 20
Get Part
92990--08100
Ybs67-8 washer, spring
Diagram Reference: 21
Get Part
9010108M11
Bolt(6a1)
Diagram Reference: 22
Get Part
95380--08600
Nut (661)
Diagram Reference: 23
Get Part
97095--06010
Bolt
Diagram Reference: 24
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 25
Get Part
6464259100
Holder, shear pin
Diagram Reference: 26
Get Part
646421210094 (AP)
Bracket
Diagram Reference: 27
Get Part
97095--06055 (AP)
Bolt, hexagon w/w deep recess
Diagram Reference: 28
Get Part
92990--06100 (AP)
Washer(6a1)
Diagram Reference: 29
Get Part
6A1--2415A--41
Label, caution
Diagram Reference: 30
Get Part
6A1--2415A--51
Label, Caution
Diagram Reference: 31
Get Part
