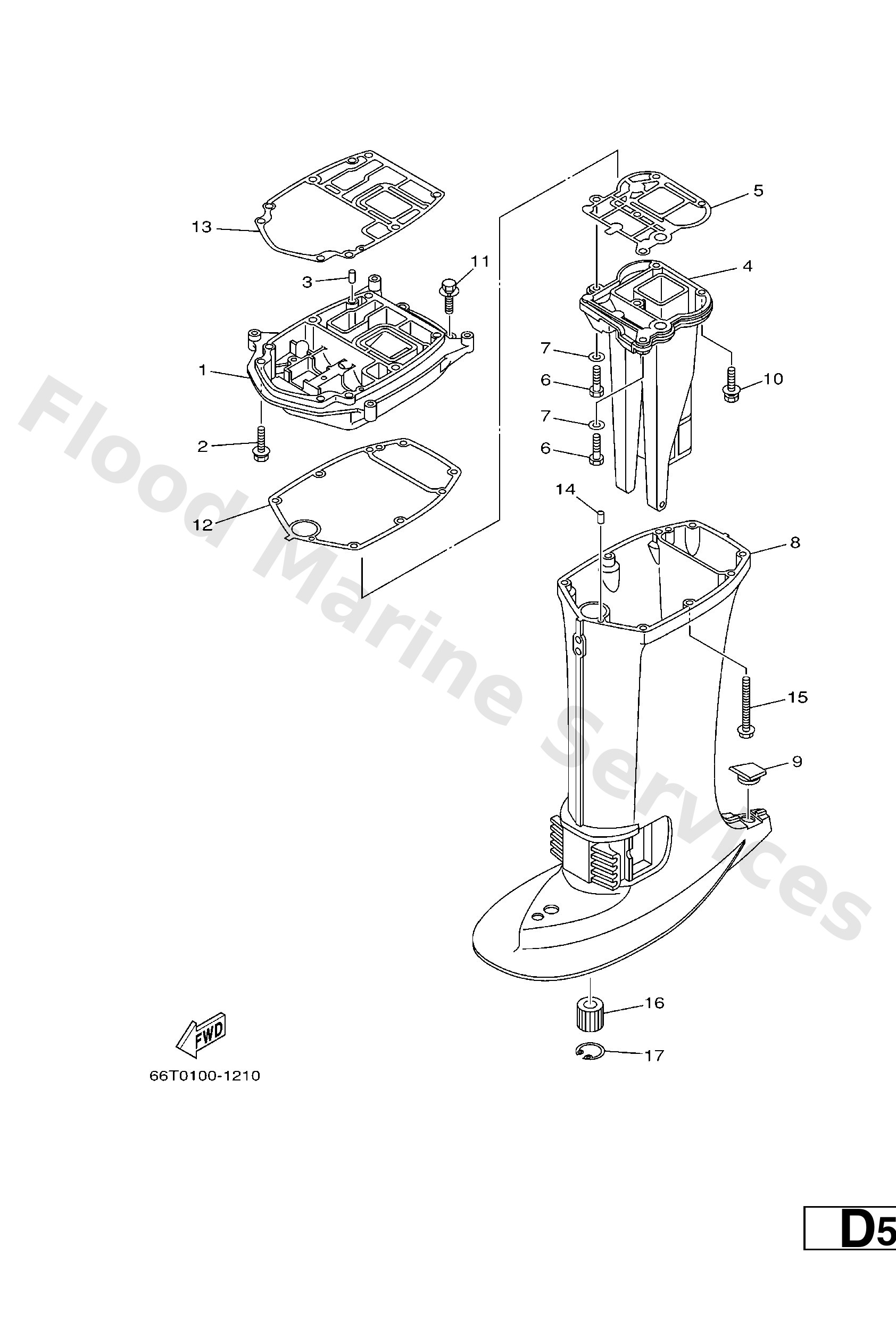

Diagram: UPPER CASING

Diagram

Parts List

66T41137005B
Guide, exhaust
Diagram Reference: 1
Get Part
9011908M79
Bolt, hexagon (fj1)
Diagram Reference: 2
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 3
Get Part
66T41131105B (L(21.7"))
Manifold, ext. 1
Diagram Reference: 4
Get Part
66T41133A0
Gasket, exhaust manifold 1
Diagram Reference: 5
Get Part
9707508030
Bolt, hexagon (fj1)
Diagram Reference: 6
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 7
Get Part
66T45111104D (L(21.7"))
Casing, upper
Diagram Reference: 8
Get Part
63D4515500
Cap
Diagram Reference: 9
Get Part
9757508545
Bolt, hexagon w/w deep recess
Diagram Reference: 10
Get Part
66T45114A0
Gasket, upper casing
Diagram Reference: 12
Get Part
66T45113A0
Gasket, upper casing
Diagram Reference: 13
Get Part
9011908M42
Bolt, with washer
Diagram Reference: 15
Get Part
6794531800 (L(21.7"))
Bushing, drive shaft 3
Diagram Reference: 16
Get Part
9342030042 (L(21.7"))
Circlip (650)
Diagram Reference: 17
Get Part
