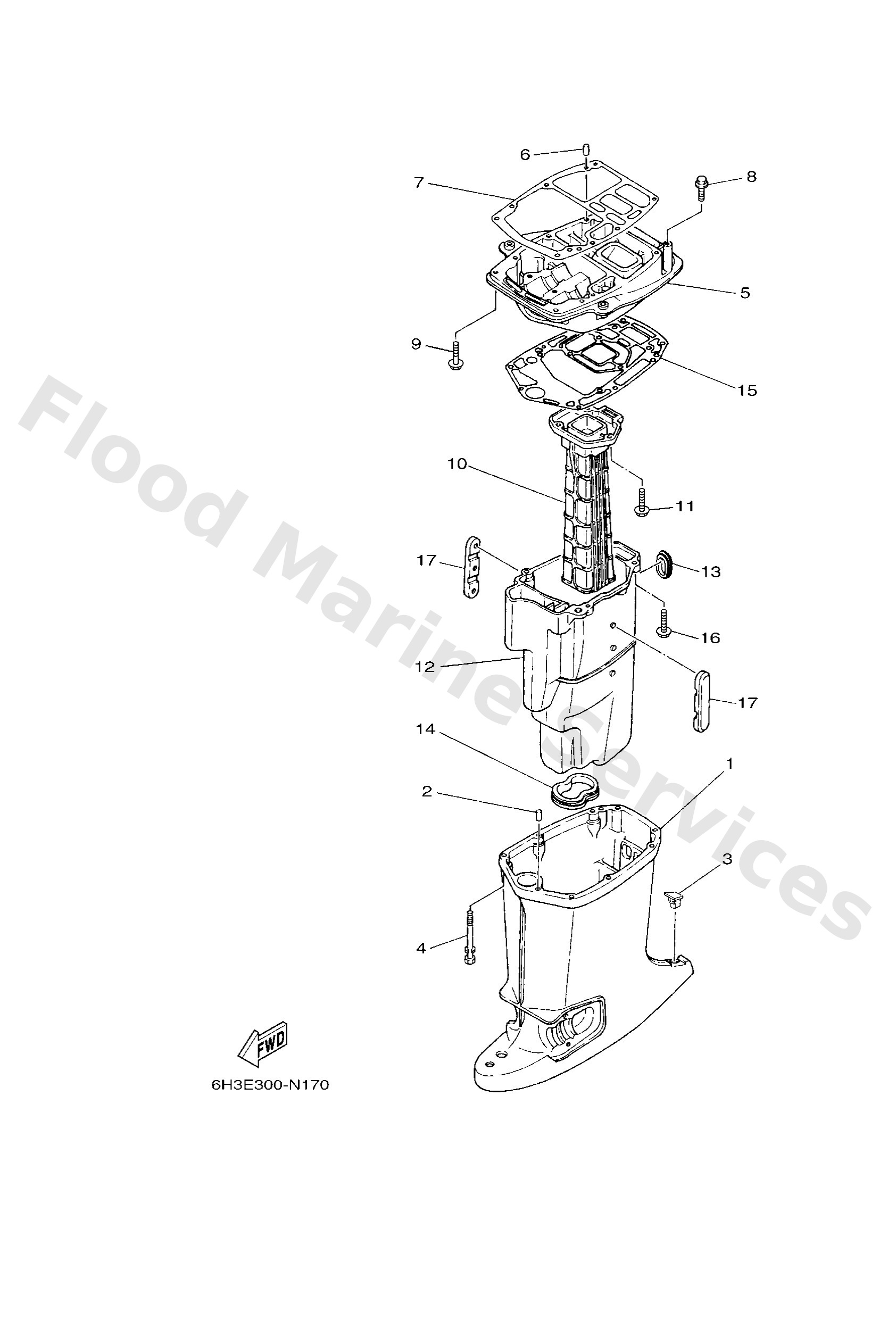

Diagram: UPPER CASING

Diagram

Parts List

6H345111128D (L(20.5"))
Casing, upper
Diagram Reference: 1
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 2
Get Part
6C54515500
Cap
Diagram Reference: 3
Get Part
9011908M81
Bolt, with washer
Diagram Reference: 4
Get Part
6H34113701CA
Guide, exhaust
Diagram Reference: 5
Get Part
6H345113A0
Gasket, upper casing
Diagram Reference: 7
Get Part
9757508530
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Get Part
9757508535
Bolt(70w)
Diagram Reference: 9
Get Part
6H34113100CA
Manifold, ext
Diagram Reference: 10
Get Part
6H31471111CA (L(20.5"))
Muffler 1
Diagram Reference: 12
Get Part
6H34512700
Seal 1
Diagram Reference: 13
Get Part
6H34512300
Gasket, muffler
Diagram Reference: 14
Get Part
6H345114A1
Gasket, upper casing
Diagram Reference: 15
Get Part
6H31473710 (L(20.5"))
Damper, muffler
Diagram Reference: 17
Get Part
