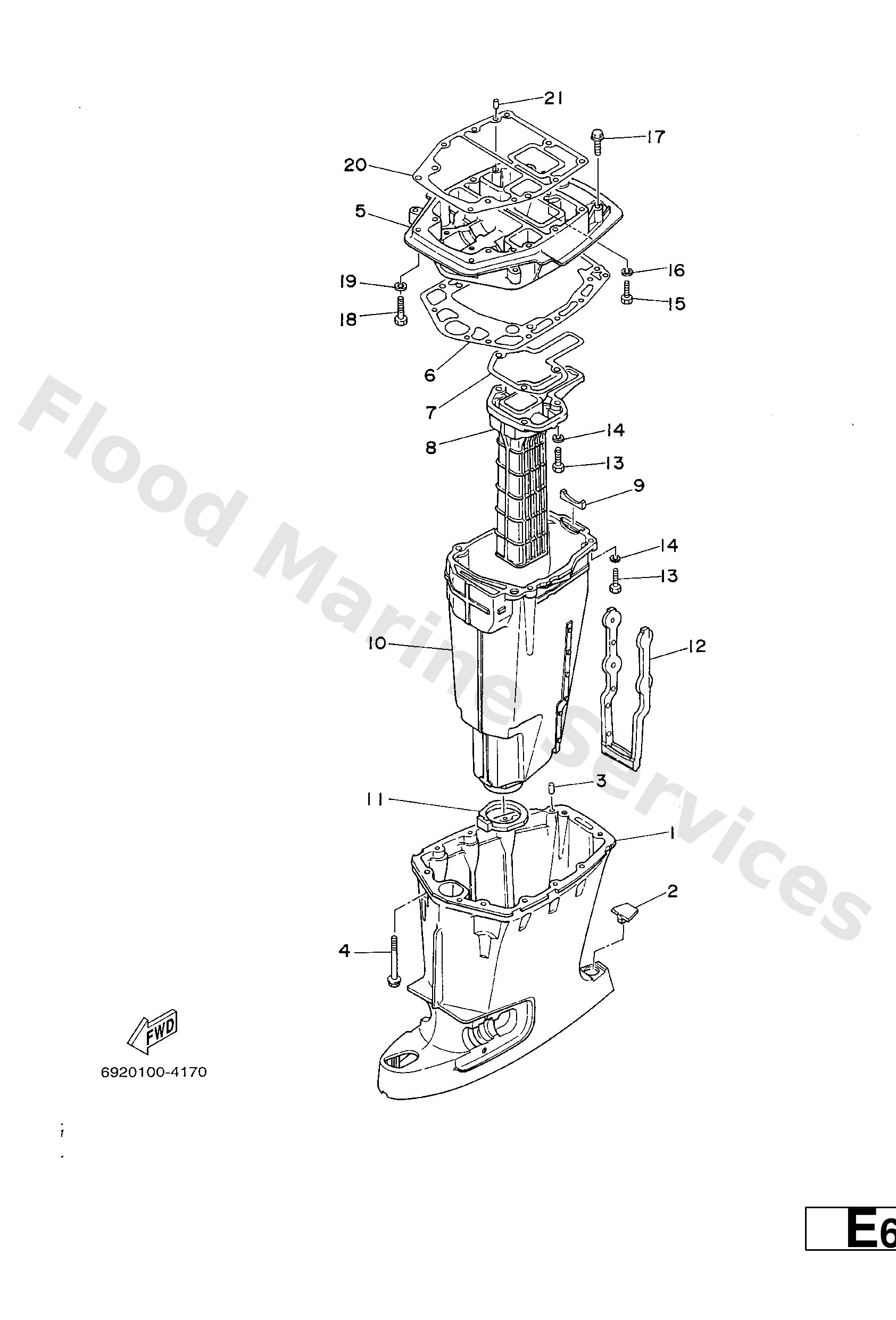

Diagram: UPPER CASING

Diagram

Parts List

68845111044D
Casing, upper
Diagram Reference: 1
Get Part
663--45155--10
Cap
Diagram Reference: 2
Get Part
93606--12019
Pin, dowel (614)
Diagram Reference: 3
Get Part
90119--08M80
Bolt, with washer(688)
Diagram Reference: 4
Get Part
688411370394
Guide, exhaust
Diagram Reference: 5
Get Part
688--45114--A1
Gasket, upper casing
Diagram Reference: 6
Get Part
688--41134--A0
Gasket, exhaust manifold
Diagram Reference: 7
Get Part
68841131005B (85A)
Manifold, ext. 1
Diagram Reference: 8
Get Part
69241131005B (75A)
Manifold, ext. 1
Diagram Reference: 8
Get Part
688--41133--00
Gasket, exhaust manifold 1
Diagram Reference: 9
Get Part
68814711015B
Muffler 1
Diagram Reference: 10
Get Part
688--45123--00
Gasket, muffler
Diagram Reference: 11
Get Part
663--14737--10
Damper, muffler
Diagram Reference: 12
Get Part
97075--08030
Bolt, hexagon (fj1)
Diagram Reference: 13
Get Part
92995--08100
Ybs67-8 washer, spring
Diagram Reference: 14
Get Part
97075--08025
Bolt, hexagon deep recess
Diagram Reference: 15
Get Part
90119--08M79
Bolt, hexagon (fj1)
Diagram Reference: 17
Get Part
97075--08035
Bolt(70w)
Diagram Reference: 18
Get Part
688--45113--A0
Gasket, upper casing
Diagram Reference: 20
