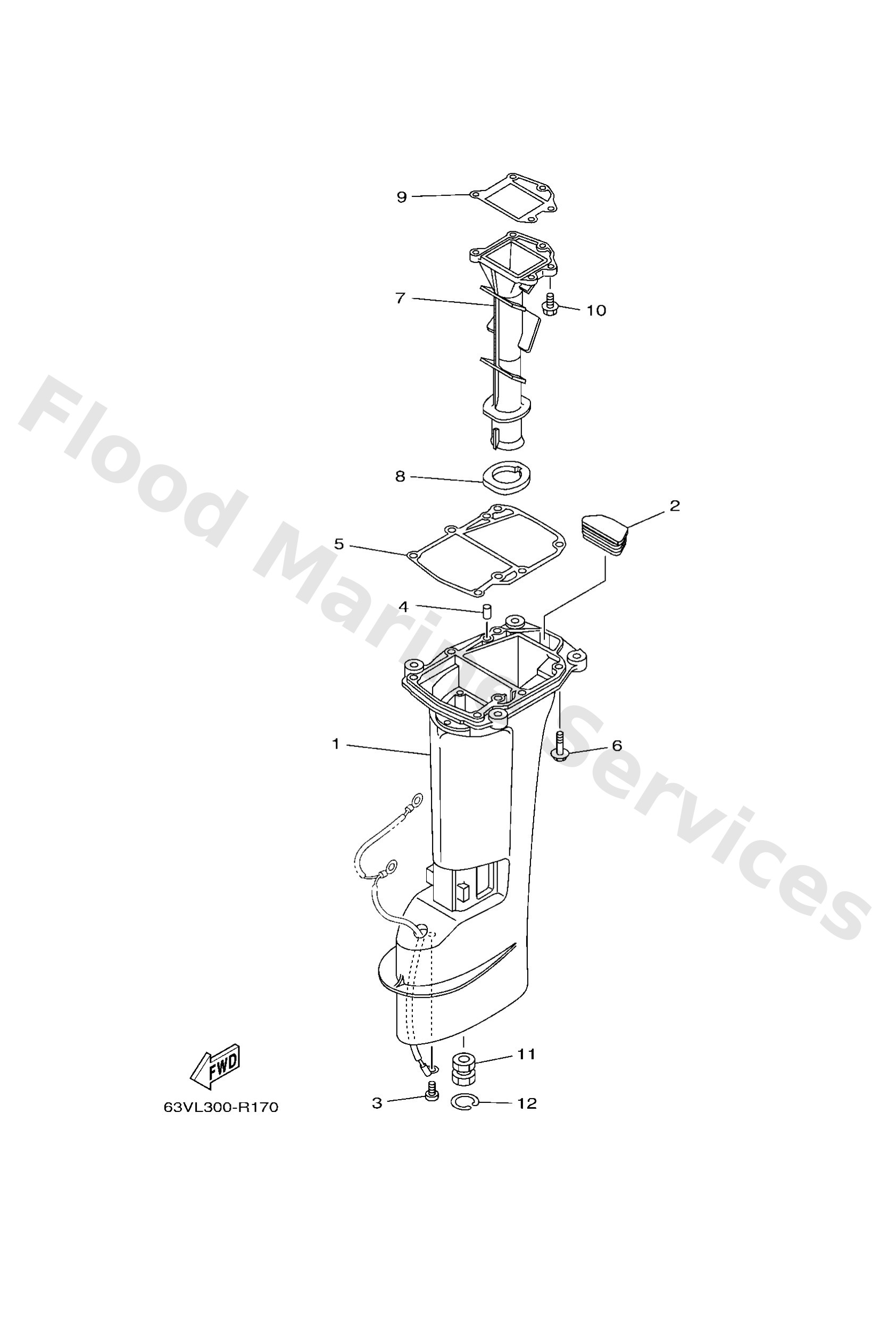

Diagram: UPPER CASING

Diagram

Parts List

63V45111158D (L(22.3"))
Casing, upper
Diagram Reference: 1
Get Part
63V45111058D (S(17.3"))
Casing, upper
Diagram Reference: 1
Get Part
63V4512601
Plate, seal damper
Diagram Reference: 2
Get Part
9015706M06
Screw, pan head(6m7)
Diagram Reference: 3
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 4
Get Part
63V45113A1
Gasket, upper casing
Diagram Reference: 5
Get Part
9757508530
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Get Part
65F4113100CA
Manifold, ext. 1
Diagram Reference: 7
Get Part
63V4113500
Gasket, exhaust manifold
Diagram Reference: 8
Get Part
63V41133A1
Gasket, exhaust manifold 1
Diagram Reference: 9
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 10
Get Part
6824531800 (L(22.3"))
Bushing, drive shaft
Diagram Reference: 11
Get Part
9342030042 (L(22.3"))
Circlip (650)
Diagram Reference: 12
