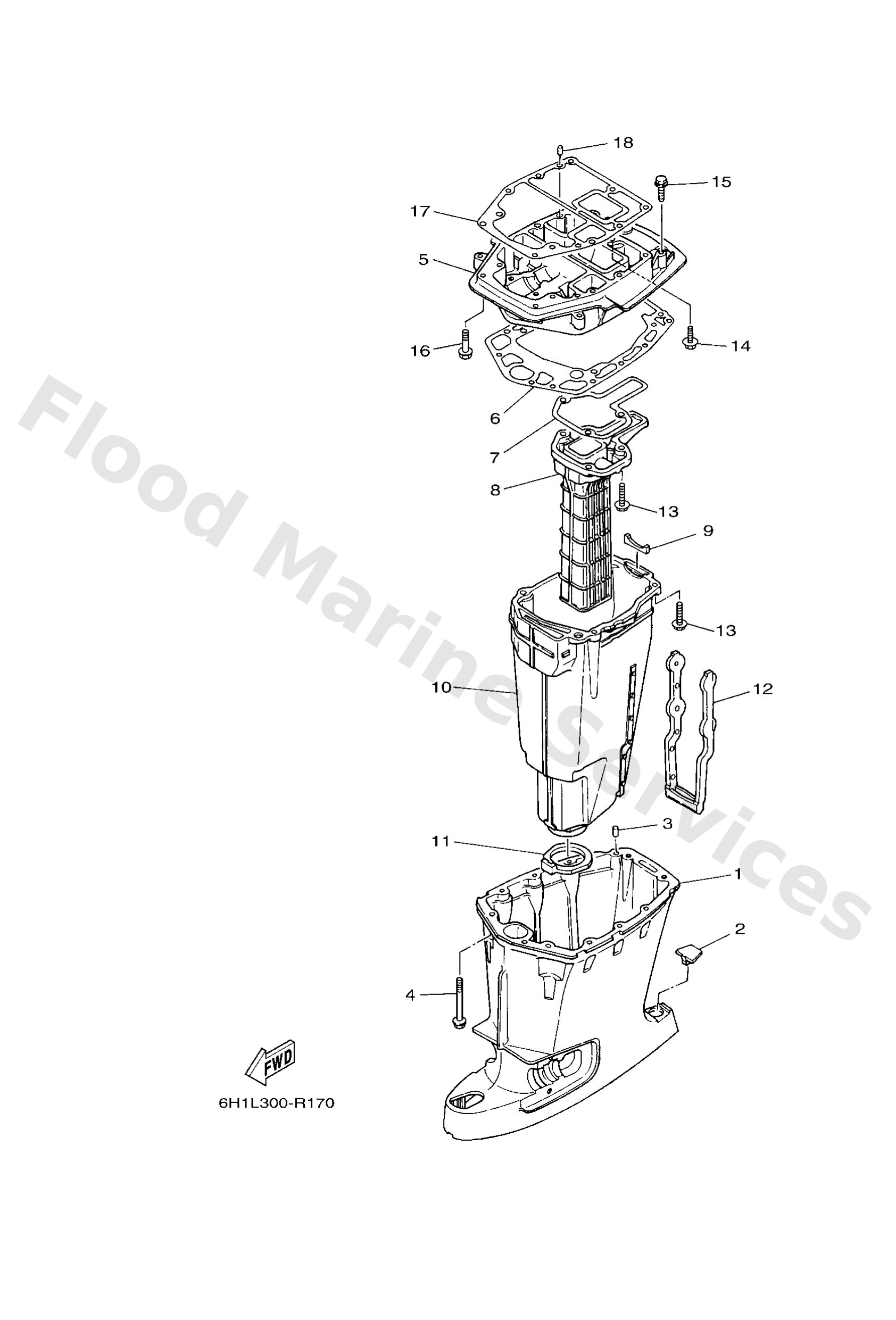

Diagram: UPPER CASING

Diagram

Parts List

68845111048D
Casing, upper
Diagram Reference: 1
Get Part
6634515510
Cap
Diagram Reference: 2
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 3
Get Part
9011908M80
Bolt, with washer(688)
Diagram Reference: 4
Get Part
6884113709CA
Guide, exhaust
Diagram Reference: 5
Get Part
68845114A1
Gasket, upper casing
Diagram Reference: 6
Get Part
68841134A0
Gasket, exhaust manifold
Diagram Reference: 7
Get Part
6884113100CA
Manifold, ext. 1
Diagram Reference: 8
Get Part
6884113300
Gasket, exhaust manifold 1
Diagram Reference: 9
Get Part
6881471101CA
Muffler 1
Diagram Reference: 10
Get Part
6884512300
Gasket, muffler
Diagram Reference: 11
Get Part
6631473710
Damper, muffler
Diagram Reference: 12
Get Part
9757508530
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Get Part
9757508525
Bolt, with washer
Diagram Reference: 14
Get Part
9757508535
Bolt(70w)
Diagram Reference: 16
Get Part
68845113A0
Gasket, upper casing
Diagram Reference: 17
