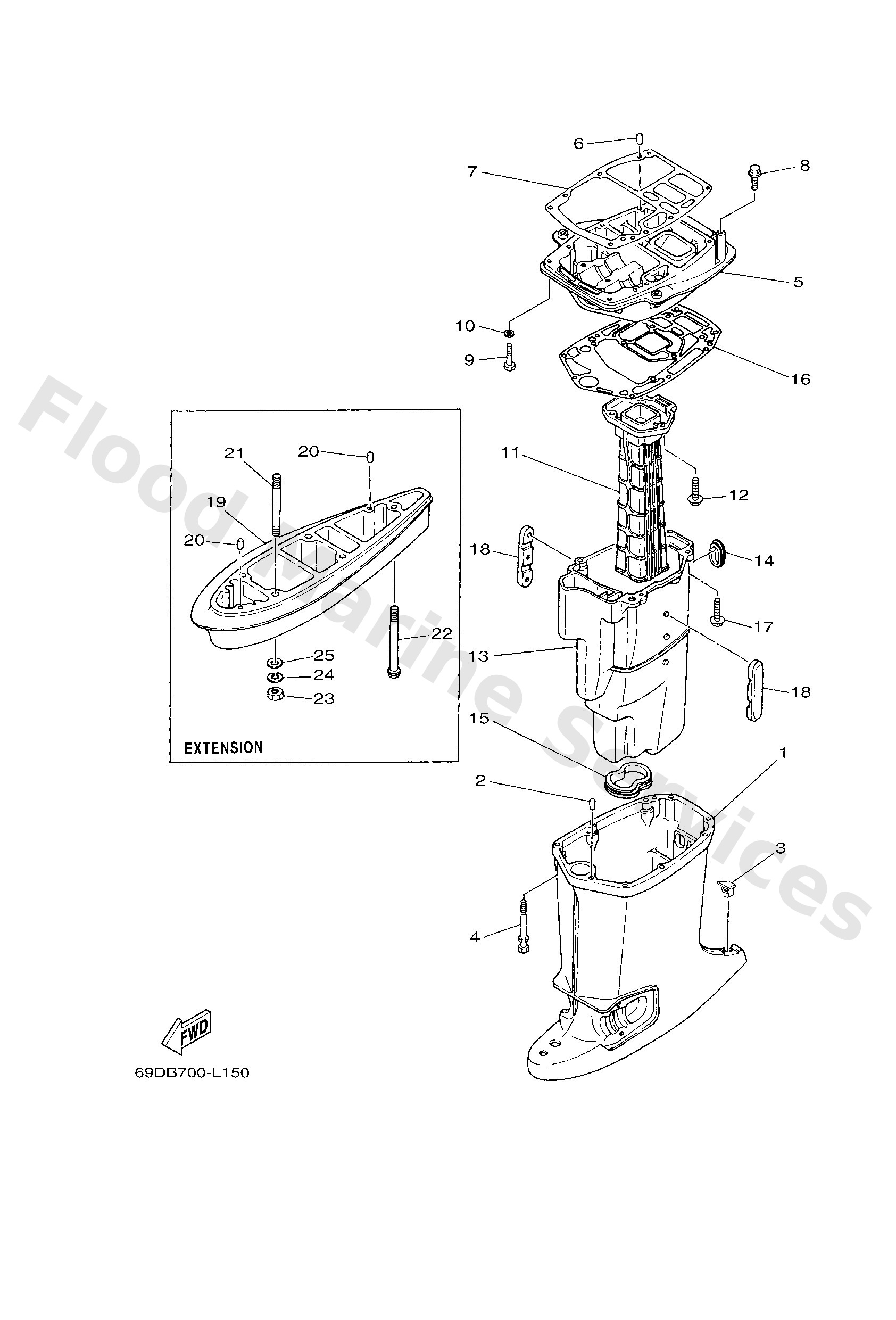

Diagram: UPPER CASING
Parts List
Casing, upper
Diagram Reference: 1
Pin, dowel (614)
Diagram Reference: 2
Bolt, with washer
Diagram Reference: 4
Guide, exhaust
Diagram Reference: 5
Gasket, upper casing
Diagram Reference: 7
Bolt, hexagon (fj1)
Diagram Reference: 8
Bolt(70w)
Diagram Reference: 9
Ybs67-8 washer, spring
Diagram Reference: 10
Manifold, ext. 1
Diagram Reference: 11
Muffler 1
Diagram Reference: 13
Seal 1
Diagram Reference: 14
Gasket, muffler
Diagram Reference: 15
Gasket, upper casing
Diagram Reference: 16
Damper, muffler
Diagram Reference: 18
Extension
Diagram Reference: 19
Bolt, stud(6a3)
Diagram Reference: 21
Bolt, with washer
Diagram Reference: 22
Nut(624)
Diagram Reference: 23
Ybs67-10 washer, spring
Diagram Reference: 24
Washer, plate
Diagram Reference: 25
