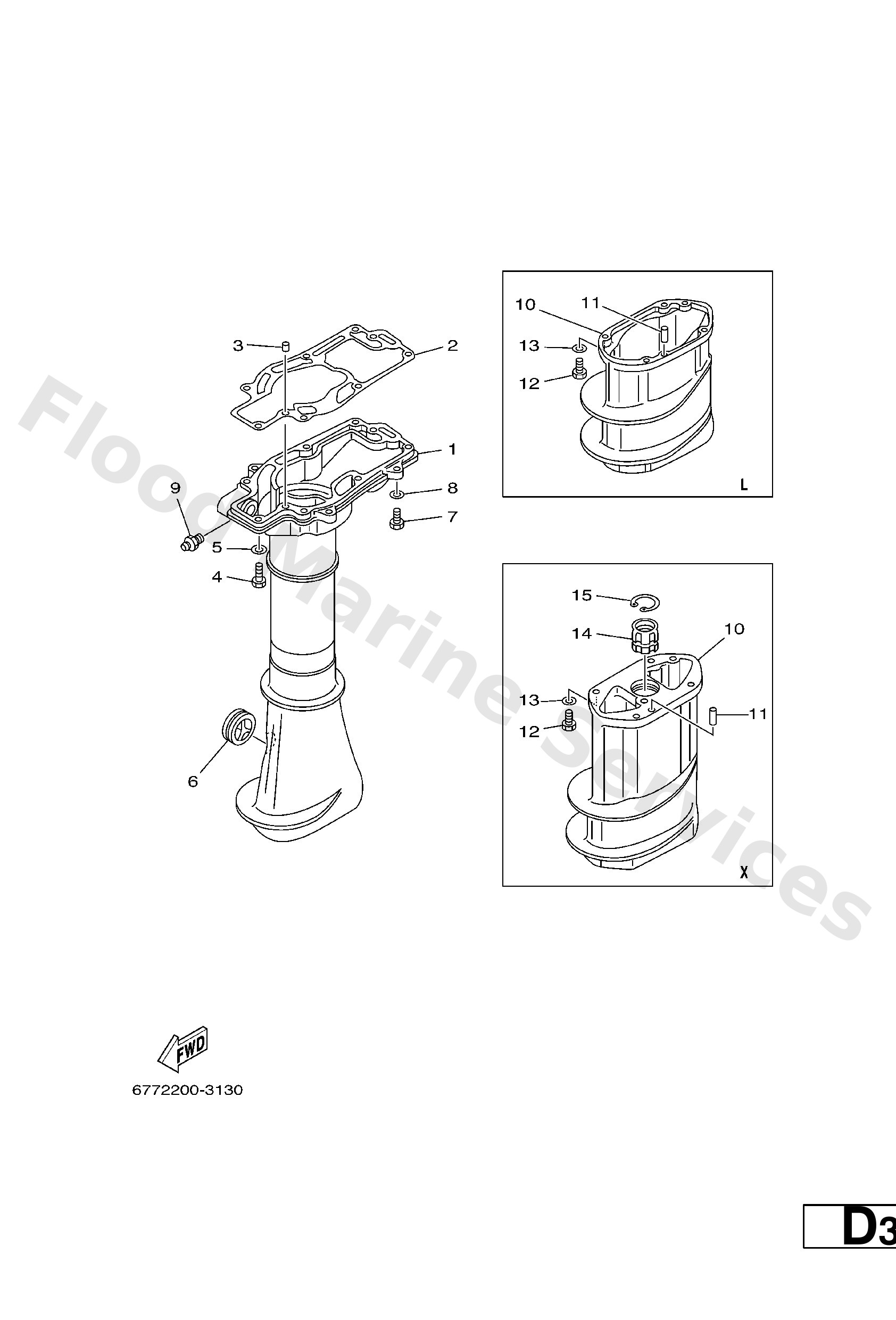

Diagram: UPPER CASING

Diagram

Parts List

677−45111−01−4D

Casing, upper

Diagram Reference: 1

677−45113−A1

Gasket, upper casing

Diagram Reference: 2

93605−08041

Pin, Dowel

Diagram Reference: 3

97095−06025

Bolt

Diagram Reference: 4

92995−06600 (L/X)

Washer, plain (646)

Diagram Reference: 13

647−45151−01

Cover, upper casing

Diagram Reference: 6

97095−06020 (L/X)

Bolt(7u8)

Diagram Reference: 12

93700−06M03

Nipple, grease(6a1)

Diagram Reference: 9

647−45211−10−4D (L)

Extension

Diagram Reference: 10

655−45211−20−4D (X)

Extension

Diagram Reference: 10

93604−08062 (L/X)

Pin,dowel (626)

Diagram Reference: 11

655−45318−00 (X)

Bushing, drive shaft 3

Diagram Reference: 14

93420−26M00 (X)

Circlip

Diagram Reference: 15
