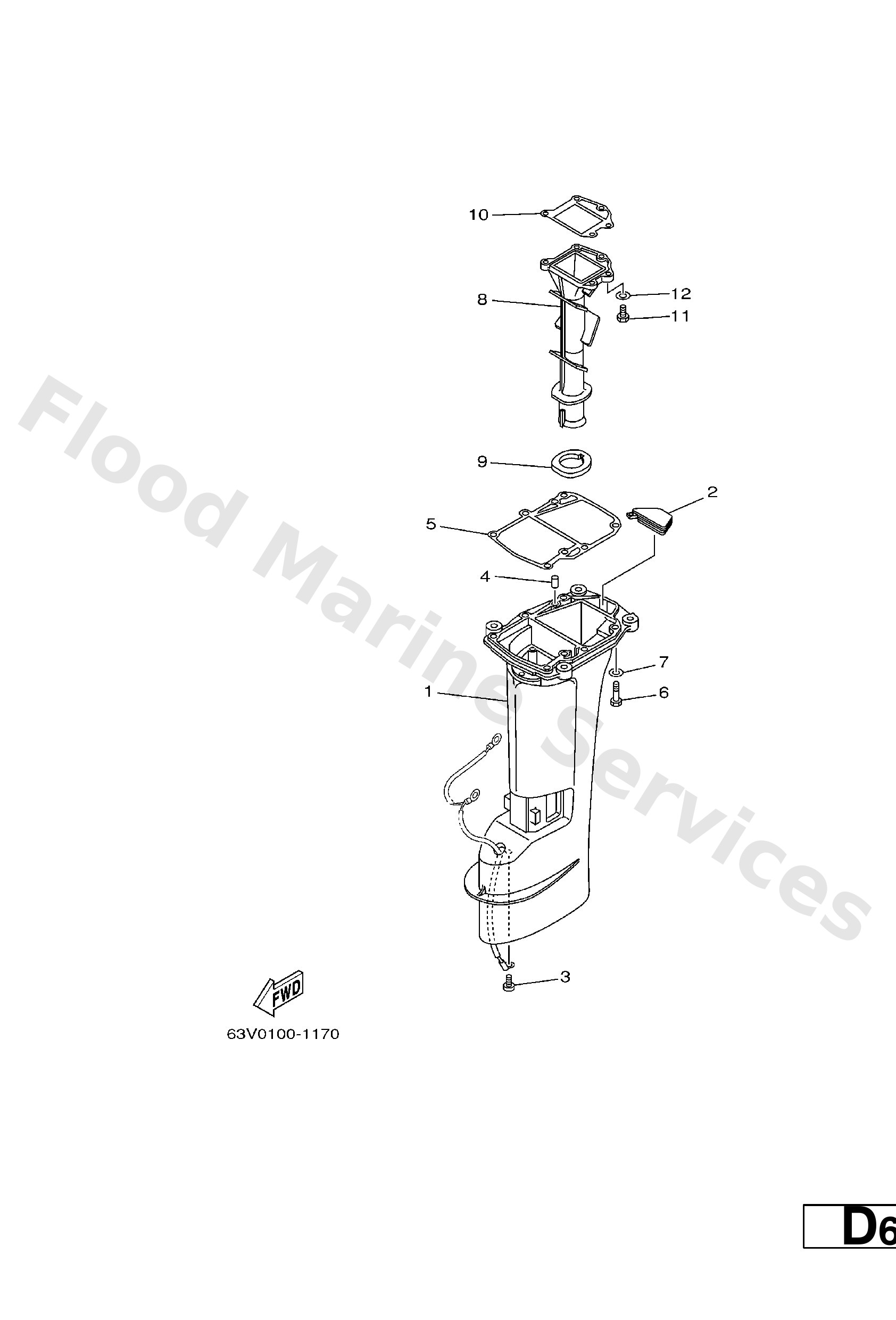

Diagram: UPPER CASING

Diagram

Parts List

63V−45111−04−4D (S)
16 −
Diagram Reference: 1
Get Part
63V−45111−14−4D (L)
16 −
Diagram Reference: 1
Get Part
63V−45126−00
Plate, seal damper
Diagram Reference: 2
Get Part
90157−06M06
Screw, pan head(6m7)
Diagram Reference: 3
Get Part
93606−12019
Pin, dowel (614)
Diagram Reference: 4
Get Part
63V−45113−A1
Gasket, upper casing
Diagram Reference: 5
Get Part
97095−08030
Bolt, hexagon (fj1)
Diagram Reference: 6
Get Part
92995−08600
Washer, plain (663)
Diagram Reference: 7
Get Part
65F−41131−00−5B
Manifold, ext. 1
Diagram Reference: 8
Get Part
63V−41135−00
Gasket, exhaust manifold
Diagram Reference: 9
Get Part
63V−41133−A1
Gasket, exhaust manifold 1
Diagram Reference: 10
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 11
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 12
Get Part
