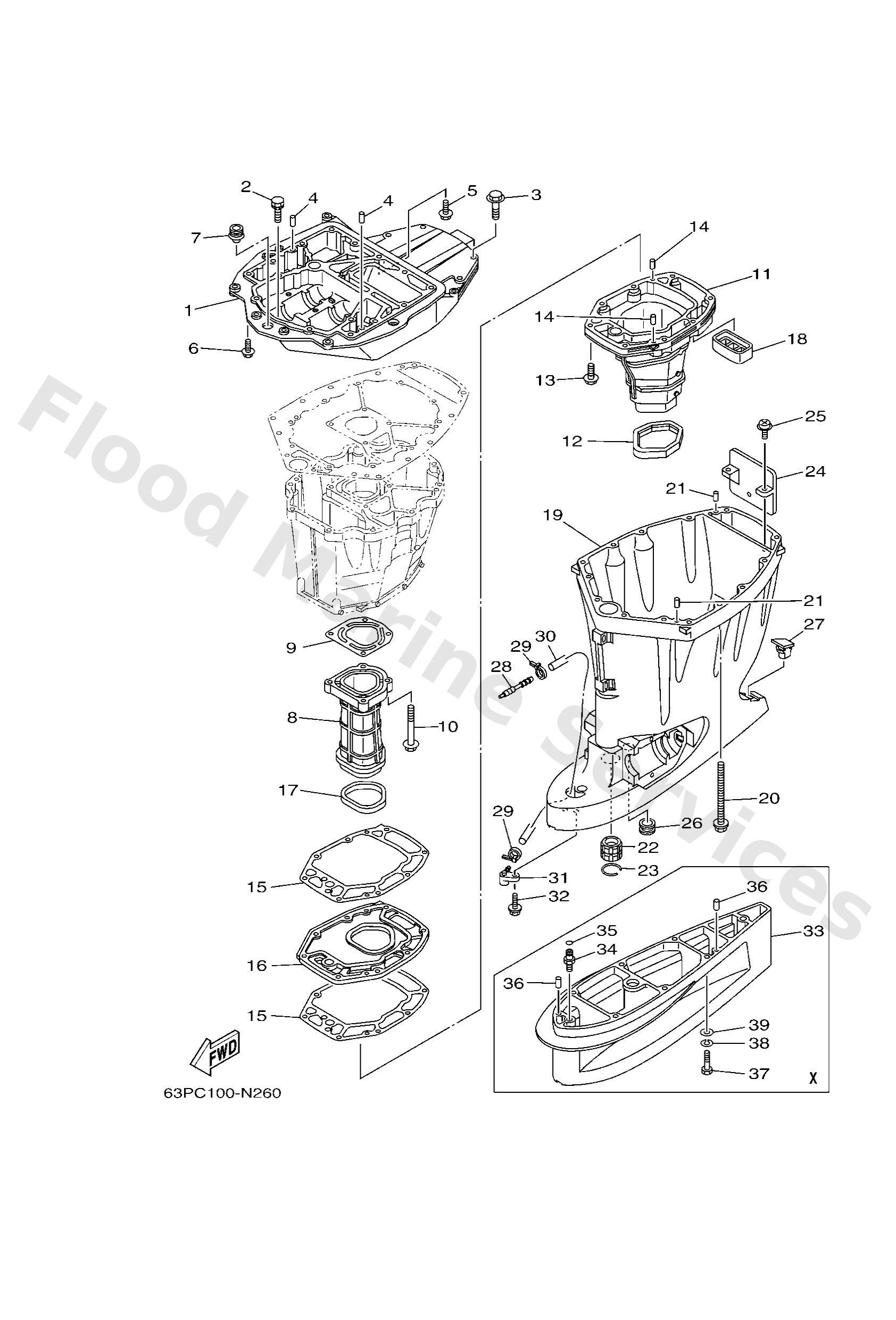

Parts List
Guide, exhaust
Diagram Reference: 1
Bolt, with washer
Diagram Reference: 2
Bolt, hexagon w/w deep recess
Diagram Reference: 3
Pin, dowel(6t4)
Diagram Reference: 36
Bolt, with washer
Diagram Reference: 5
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Grommet
Diagram Reference: 7
Manifold, ext. 1
Diagram Reference: 8
Gasket, exhaust manifold 1
Diagram Reference: 9
Bolt, hexagon w/w deep recess
Diagram Reference: 10
Muffler 1
Diagram Reference: 11
Gasket, muffler
Diagram Reference: 12
Bolt(70w)
Diagram Reference: 13
Pin, dowel
Diagram Reference: 14
Gasket, exhaust manifold
Diagram Reference: 15
Plate
Diagram Reference: 16
Seal, ext. 1
Diagram Reference: 17
Seal
Diagram Reference: 18
Casing, upper
Diagram Reference: 19
Bolt, with washer
Diagram Reference: 20
Bushing, drive shaft 3
Diagram Reference: 22
Circlip (6a0)
Diagram Reference: 23
Cover, exhaust
Diagram Reference: 24
Screw, with washer(6h2)
Diagram Reference: 25
Damper, water seal 2
Diagram Reference: 26
Cap
Diagram Reference: 27
End, nipple
Diagram Reference: 28
Clamp
Diagram Reference: 29
Hose (l1050)
Diagram Reference: 30
Nipple, hose
Diagram Reference: 31
Bolt, with washer(61n)
Diagram Reference: 32
Extension
Diagram Reference: 33
Nipple, hose
Diagram Reference: 34
O-ring (11m)
Diagram Reference: 35
Bolt(64d)
Diagram Reference: 37
Ybs67-10 washer, spring
Diagram Reference: 38
Washer, plate
Diagram Reference: 39
