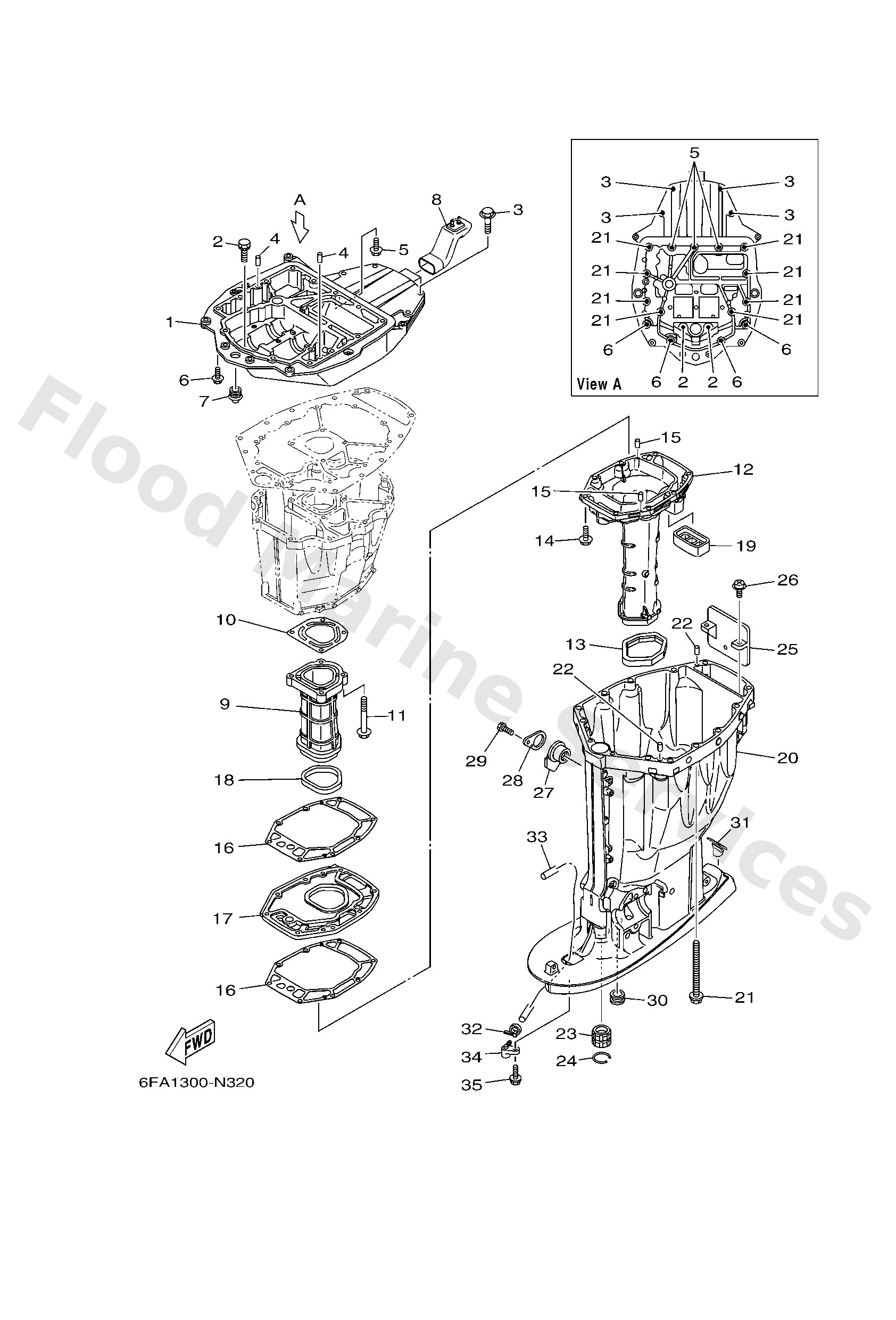

Parts List
Guide, exhaust
Diagram Reference: 1
Bolt, with washer
Diagram Reference: 2
Bolt, hexagon w/w deep recess
Diagram Reference: 3
Pin, dowel(6t4)
Diagram Reference: 4
Bolt, with washer
Diagram Reference: 5
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Grommet
Diagram Reference: 7
Seal, rubber
Diagram Reference: 8
Manifold, ext. 1
Diagram Reference: 9
Gasket, exhaust manifold 1
Diagram Reference: 10
Bolt, hexagon w/w deep recess
Diagram Reference: 11
Muffler 1
Diagram Reference: 12
Muffler 1
Diagram Reference: 12
Gasket, muffler
Diagram Reference: 13
Bolt(70w)
Diagram Reference: 14
Pin, dowel
Diagram Reference: 15
Gasket, exhaust manifold
Diagram Reference: 16
Plate
Diagram Reference: 17
Seal, ext. 1
Diagram Reference: 18
Seal
Diagram Reference: 19
Casing, upper
Diagram Reference: 20
Casing, upper
Diagram Reference: 20
Bolt, with washer
Diagram Reference: 21
Bushing, drive shaft 3
Diagram Reference: 23
Circlip (6a0)
Diagram Reference: 24
Cover, exhaust
Diagram Reference: 25
Screw, with washer(6h2)
Diagram Reference: 26
Damper 1
Diagram Reference: 27
Cover, upper casing 2
Diagram Reference: 28
Bolt(gh1)
Diagram Reference: 29
Damper, water seal 2
Diagram Reference: 30
Cap
Diagram Reference: 31
Cap
Diagram Reference: 31
Clamp
Diagram Reference: 32
Hose (l1680)
Diagram Reference: 33
Hose (l1800)
Diagram Reference: 33
Nipple, hose
Diagram Reference: 34
Bolt, with washer(61n)
Diagram Reference: 35
