Yamaha Outboard Parts - UPPER CASING - F2.5AMH (2003) | Flood Marine

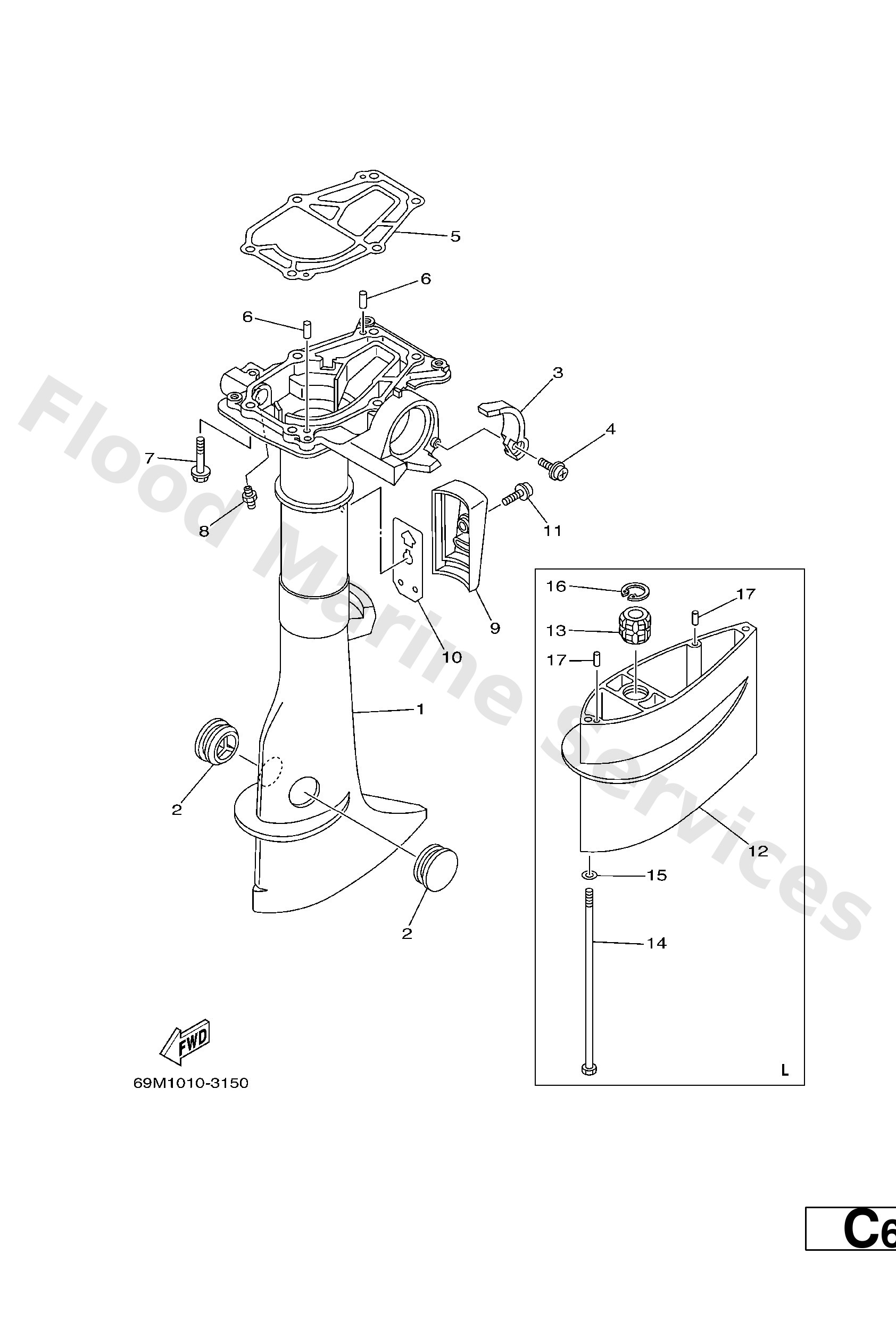

Diagram: UPPER CASING

Diagram

Parts List

Reference
Description
Price


2
647−45151−01
Cover, upper casing
Loading…

↗
3
69M−G5152−00
Cover,upper casing 2
Loading…

↗
4
90159−05M12
Screw, with washer(6t4)
Loading…

↗
5
69M−45113−A0
Gasket, upper casing
Loading…

↗
17
93604−12M07 L
Pin, dowel (688)
Loading…

↗
7
97575−06535
Bolt, hexagon w/w deep recess
Loading…

↗
8
93700−06M03
Nipple, grease(6a1)
Loading…

↗
9
69M−G5151−00
Cover,upper casing 1
Loading…

↗
10
69M−G5115−00
Gasket,upper casing
Loading…

↗
11
90159−06M11
Screw, with washer(6l2)
Loading…

↗
13
6L5−45318−00 L
Bushing, drive shaft
Loading…

↗
14
90101−06M18 L
Bolt(6l5)
Loading…

↗
15
92990−06600 L
Washer, plain (646)
Loading…

↗
16
93420−22M03 L
Cir clip (6e0)
Loading…

↗
