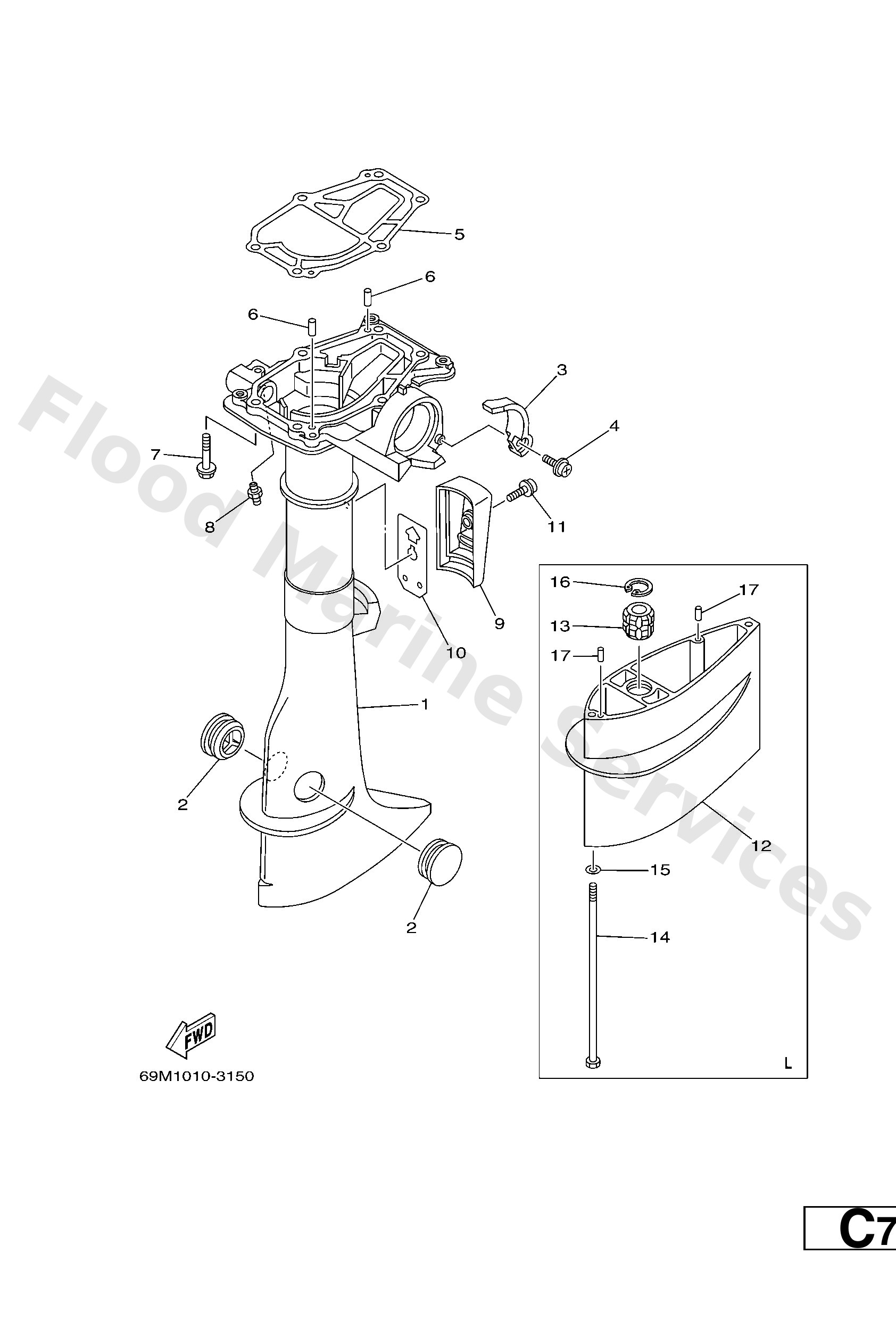

Diagram: UPPER CASING

Diagram

Parts List

69MG5111004D
Casing,upper
Diagram Reference: 1
Get Part
6474515101
Cover, upper casing
Diagram Reference: 2
Get Part
69MG515200
Cover,upper casing 2
Diagram Reference: 3
Get Part
9015905M12
Screw, with washer(6t4)
Diagram Reference: 4
Get Part
69M45113A0
Gasket, upper casing
Diagram Reference: 5
Get Part
9360412M07 (L)
Pin, dowel (688)
Diagram Reference: 17
Get Part
9757506535
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 8
Get Part
69MG515100
Cover,upper casing 1
Diagram Reference: 9
Get Part
69MG511500
Gasket,upper casing
Diagram Reference: 10
Get Part
9015906M11
Screw, with washer(6l2)
Diagram Reference: 11
Get Part
69MG5211004D (L)
Extention
Diagram Reference: 12
Get Part
6L54531800 (L)
Bushing, drive shaft
Diagram Reference: 13
Get Part
9010106M18 (L)
Bolt(6l5)
Diagram Reference: 14
Get Part
9299006600 (L)
Washer, plain (646)
Diagram Reference: 15
Get Part
9342022M03 (L)
Cir clip (6e0)
Diagram Reference: 16
Get Part
