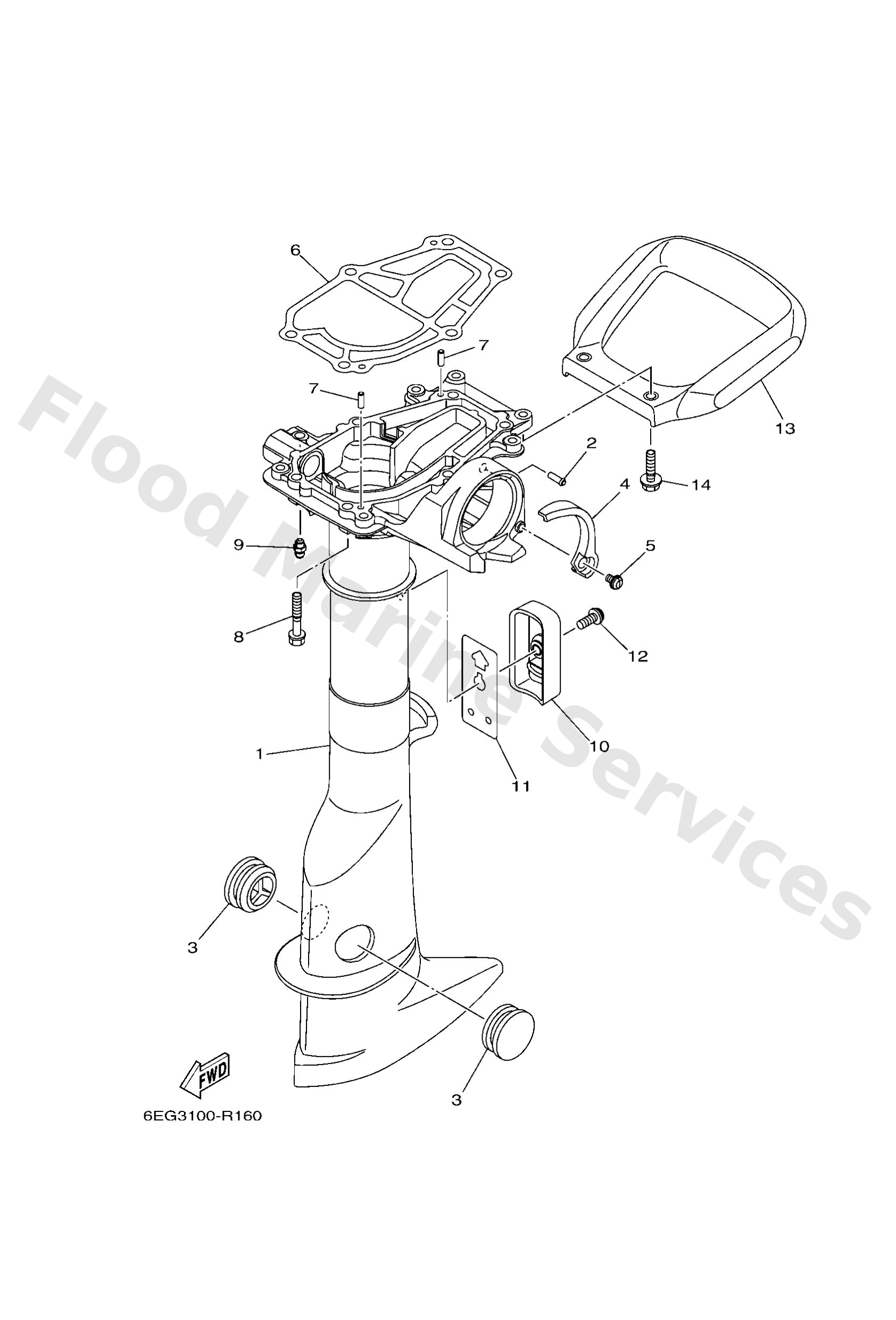

Diagram: UPPER CASING

Diagram

Parts List

6EG45111008D
Casing, Upper
Diagram Reference: 1
Get Part
6502437800
Pipe, joint 2
Diagram Reference: 2
Get Part
6474515102
Cover, upper casing
Diagram Reference: 3
Get Part
6EG4515200
Cover, upper casing 2
Diagram Reference: 4
Get Part
9015905M12
Screw, with washer(6t4)
Diagram Reference: 5
Get Part
6EG4511300
Gasket, upper casing
Diagram Reference: 6
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 7
Get Part
97E7506535
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Get Part
9370006004
Nipple, grease(6a1)
Diagram Reference: 9
Get Part
6EG4515100
Cover, Upper Casing
Diagram Reference: 10
Get Part
6EG4511500
Gasket, upper casing
Diagram Reference: 11
Get Part
9015906M11
Screw, with washer(6l2)
Diagram Reference: 12
Get Part
6EG4273100
Carrying handle
Diagram Reference: 13
Get Part
97E9506525
Bolt, hexagon w/w deep recess
Diagram Reference: 14
