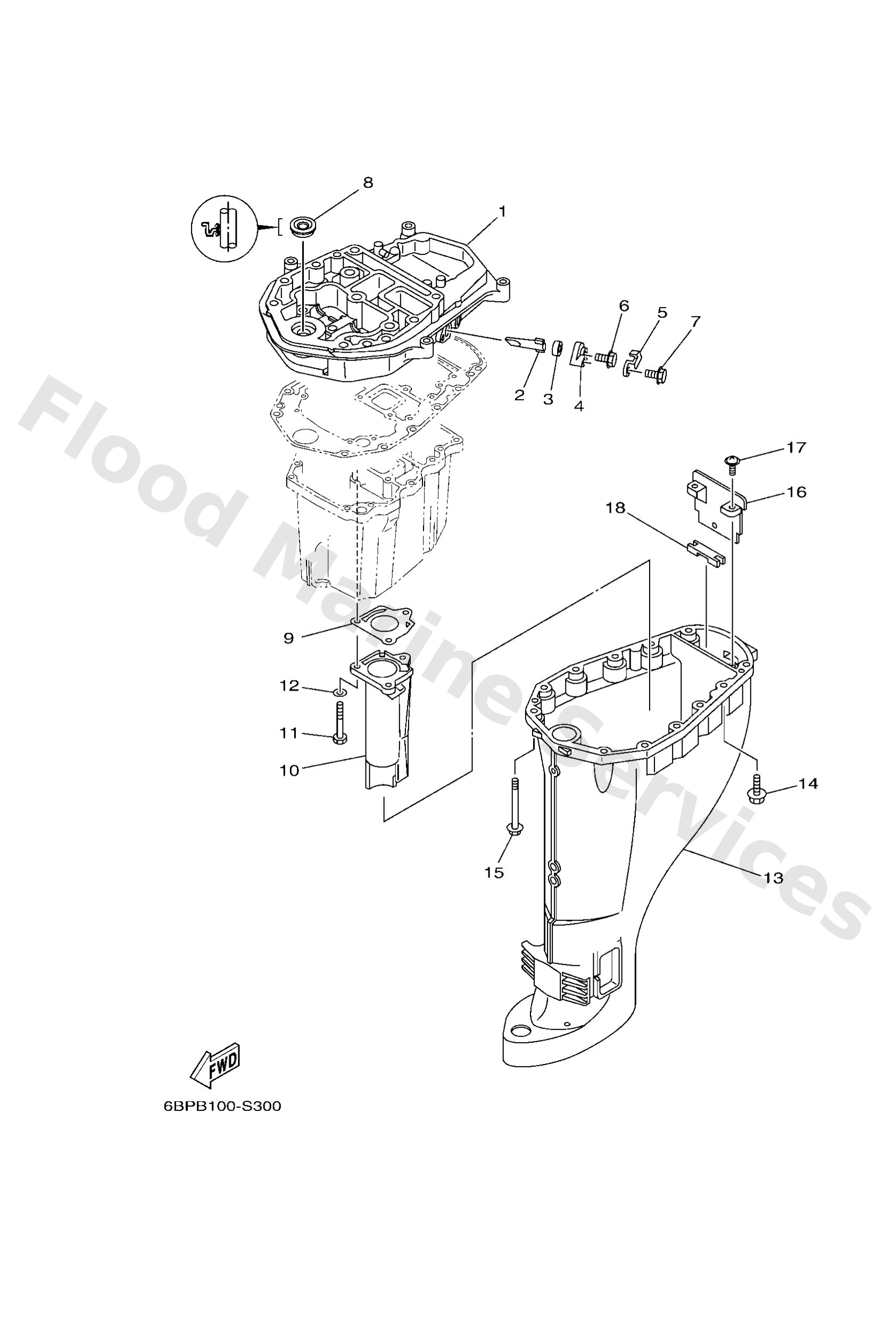

Diagram: UPPER CASING

Diagram

Parts List

67C4113720CA
Guide, exhaust
Diagram Reference: 1
Get Part
62Y1132500
Anode
Diagram Reference: 2
Get Part
66M1132800
Grommet, anode
Diagram Reference: 3
Get Part
66M113270094
Cover, anode
Diagram Reference: 4
Get Part
66M1253500
Plate
Diagram Reference: 5
Get Part
9759505512
Bolt, hexagon
Diagram Reference: 6
Get Part
9751306520
Bolt, with washer(61b)
Diagram Reference: 7
Get Part
9310316011
Oil seal
Diagram Reference: 8
Get Part
67C4113300
Gasket, exhaust manifold 1
Diagram Reference: 9
Get Part
68U4113100CA
Manifold, ext. 1
Diagram Reference: 10
Get Part
9707506050
Bolt(jf7)
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
6BP45111008D (S(16.7"))
Casing, upper
Diagram Reference: 13
Get Part
6D545111108D (L(21.7"))
Casing, upper
Diagram Reference: 13
Get Part
9757508530
Bolt, hexagon w/w deep recess
Diagram Reference: 14
Get Part
9011908132
Bolt, with washer
Diagram Reference: 15
Get Part
65W4515100
Cover, upper casing
Diagram Reference: 16
Get Part
9798005216
Screw, pan w/ plain
Diagram Reference: 17
Get Part
65W4512800
Seal 2
Diagram Reference: 18
