F40BET (2007)
UPPER CASING

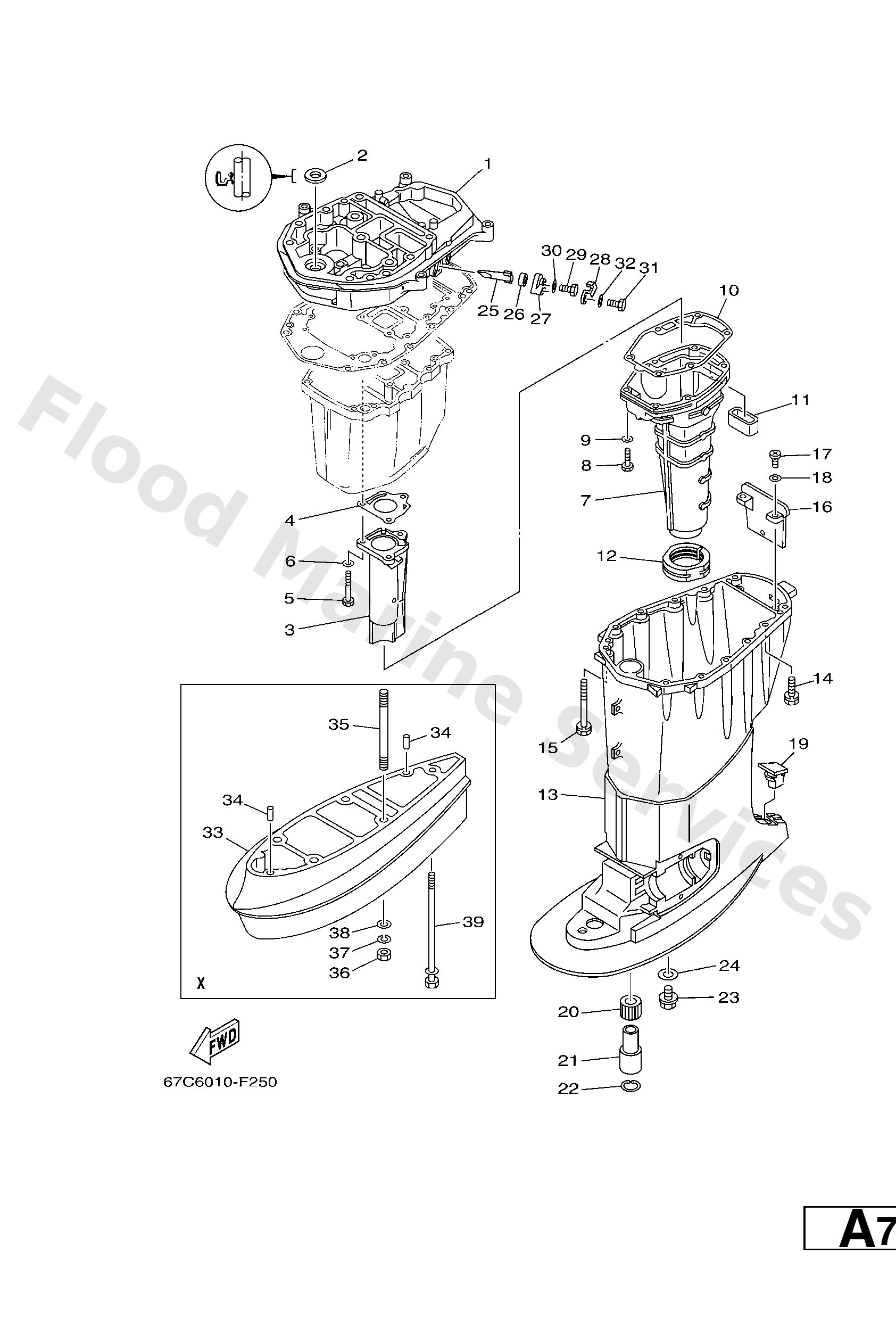

Diagram: UPPER CASING
Parts List
67C411371194
Guide, exhaust (67c-13)
Diagram Reference: 1
Get Part
9311016004
Oil seal
Diagram Reference: 2
Get Part
67C41131005B
Manifold, ext. 1
Diagram Reference: 3
Get Part
67C4113300
Gasket, exhaust manifold 1
Diagram Reference: 4
Get Part
9707506050
Bolt(jf7)
Diagram Reference: 5
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 6
Get Part
67C14711005B
(S(16.1"))
Muffler 1
Diagram Reference: 7
Get Part
67C14711125B
(L(21.0"),X(25.5"))
Muffler 1
Diagram Reference: 7
Get Part
9707506025
Bolt
Diagram Reference: 8
Get Part
62Y4113401
Gasket, exhaust manifold
Diagram Reference: 10
Get Part
62Y4512700
Seal
Diagram Reference: 11
Get Part
67C4512300
Gasket, muffler
Diagram Reference: 12
Get Part
67C45111004D
(S(16.1"))
Casing, Upper
Diagram Reference: 13
Get Part
67C45111214D
(L(21.0"),X(25.5"))
Casing, Upper
Diagram Reference: 13
Get Part
9011908M79
Bolt, hexagon (fj1)
Diagram Reference: 14
Get Part
9011908M82
Bolt, with washer(697)
Diagram Reference: 15
Get Part
67C4515100
Cover, upper casing
Diagram Reference: 16
Get Part
9788005016
Screw, pan head(6b0)
Diagram Reference: 17
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 18
Get Part
6C54515500
(L(21.0"),X(25.5"))
Cap
Diagram Reference: 19
Get Part
63D4515500
(S(16.1"))
Cap
Diagram Reference: 19
Get Part
6794531800
(L(21.0"),X(25.5"))
Bushing, drive shaft 3
Diagram Reference: 20
Get Part
9038723002
(L(21.0"),X(25.5"))
Collar
Diagram Reference: 21
Get Part
9342036M01
(L(21.0"),X(25.5"))
Circlip (6a0)
Diagram Reference: 22
Get Part
9034014M06
(L(21.0"),X(25.5"))
Plug, straight screw(62y)
Diagram Reference: 23
Get Part
9043014M09
(L(21.0"),X(25.5"))
Gasket
Diagram Reference: 24
Get Part
62Y1132500
Anode
Diagram Reference: 25
Get Part
66M1132800
Grommet, anode
Diagram Reference: 26
Get Part
66M113270094
Cover, anode
Diagram Reference: 27
Get Part
66M1253500
Plate
Diagram Reference: 28
Get Part
9709505012
Bolt, hexagon
Diagram Reference: 29
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 30
Get Part
9701306020
Bolt(62y)
Diagram Reference: 31
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 32
Get Part
63D45211024D
(X(25.5"))
Extension
Diagram Reference: 33
Get Part
9360612019
(X(25.5"))
Pin, dowel (614)
Diagram Reference: 34
Get Part
9011610M53
(X(25.5"))
Bolt, stud
Diagram Reference: 35
Get Part
9538010600
(X(25.5"))
Nut(624)
Diagram Reference: 36
Get Part
9299010100
(X(25.5"))
Ybs67-10 washer, spring
Diagram Reference: 37
Get Part
9299010600
(X(25.5"))
Washer, plate
Diagram Reference: 38
Get Part
9011908M00
(X(25.5"))
Bolt, with washer(62x)
Diagram Reference: 39
Get Part
