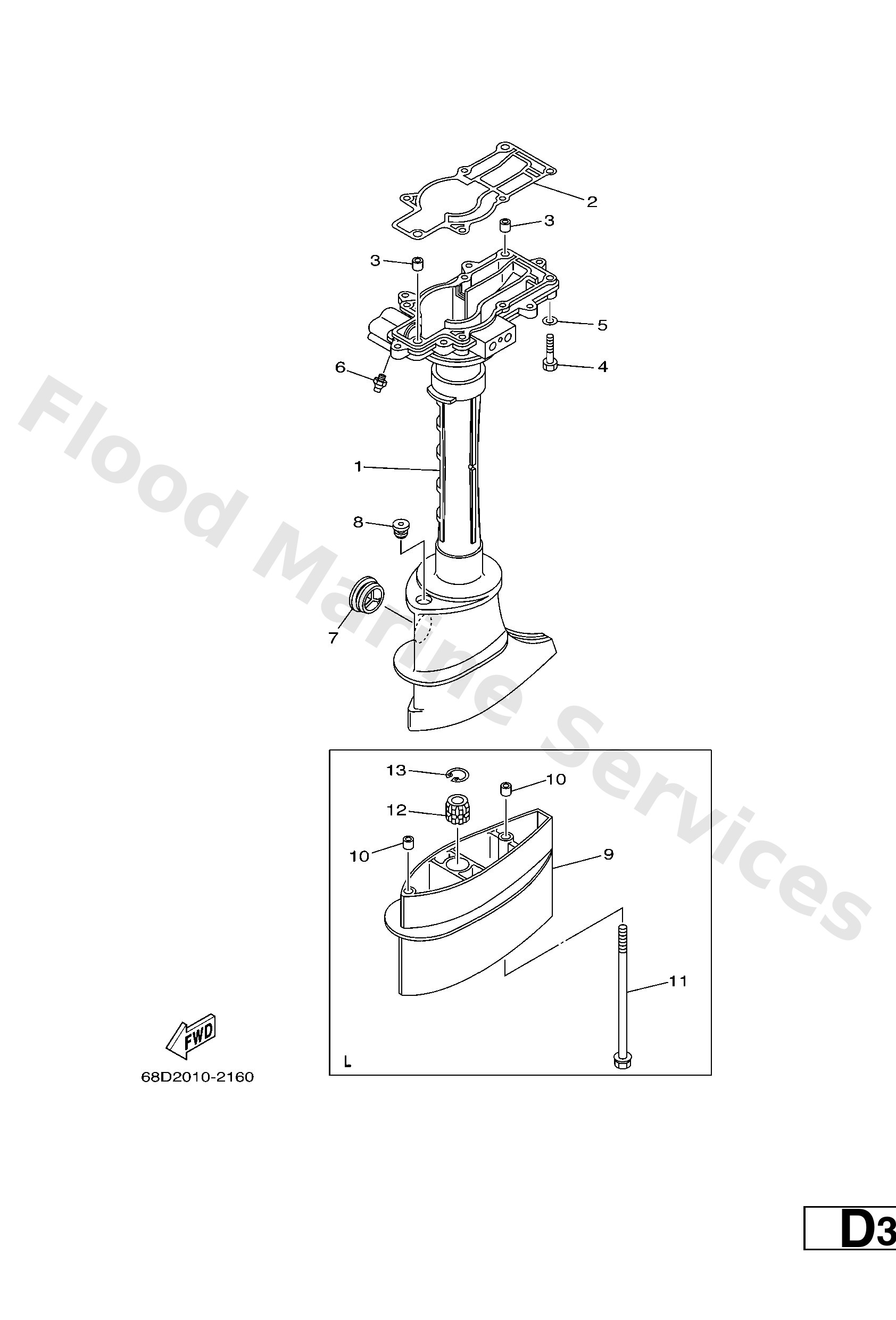

Diagram: UPPER CASING

Diagram

Parts List

68DG5111014D
Casing, Upper
Diagram Reference: 1
Get Part
67D45113A0
Gasket, upper casing
Diagram Reference: 2
Get Part
9038706806 (L(22.1"))
Collar(6e0)
Diagram Reference: 10
Get Part
9709506035
Bolt(j52)
Diagram Reference: 4
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 5
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 6
Get Part
6474515101
Cover, upper casing
Diagram Reference: 7
Get Part
9048010M13
Grommet (6e0)
Diagram Reference: 8
Get Part
68DG5211004D (L(22.1"))
Extension
Diagram Reference: 9
Get Part
9011906M77 (L(22.1"))
Bolt, with washer
Diagram Reference: 11
Get Part
6E04531801 (L(22.1"))
Bushing, drive shaft 3
Diagram Reference: 12
Get Part
9342022M03 (L(22.1"))
Cir clip (6e0)
Diagram Reference: 13
Get Part
