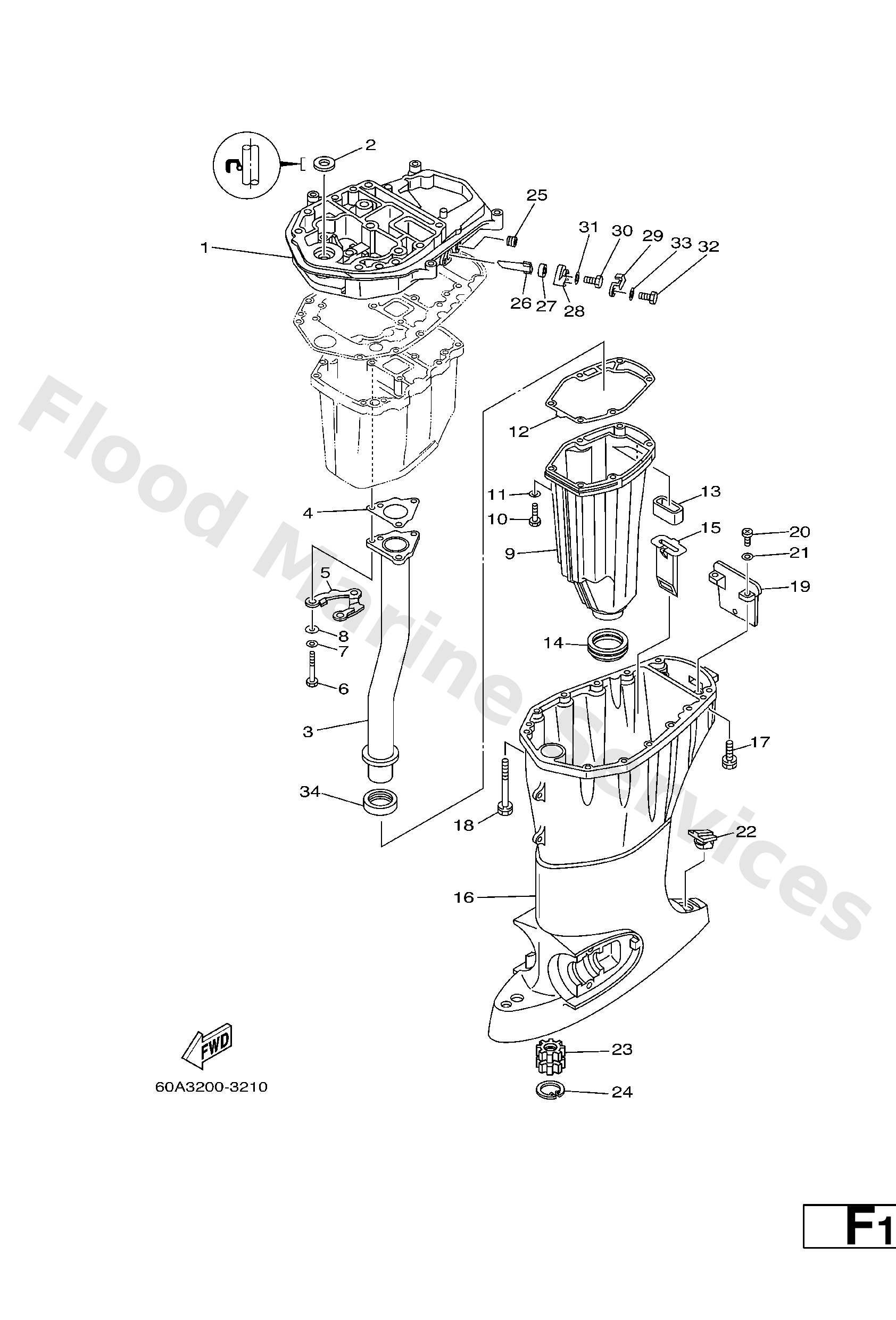

Diagram: UPPER CASING

Diagram

Parts List

64J−41137−01−94
Guide, exhaust
Diagram Reference: 1
Get Part
93103−18011
Oil seal
Diagram Reference: 2
Get Part
64J−41131−10
Manifold, ext. 1
Diagram Reference: 3
Get Part
64J−41133−10
Gasket, exhaust manifold 1
Diagram Reference: 4
Get Part
64J−41116−00
Protector
Diagram Reference: 5
Get Part
97075−06050
Bolt(jf7)
Diagram Reference: 6
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 7
Get Part
90201−06015
Washer, plate
Diagram Reference: 8
Get Part
64J−14711−00−5B
Muffler 1
Diagram Reference: 9
Get Part
97075−06025
Bolt
Diagram Reference: 10
Get Part
62Y−41134−01
Gasket, exhaust manifold
Diagram Reference: 12
Get Part
62Y−45127−00
Seal
Diagram Reference: 13
Get Part
663−45123−00
Gasket, muffler
Diagram Reference: 14
Get Part
64J−77123−00
Guide 1
Diagram Reference: 15
Get Part
62Y−45111−21−4D
Casing, upper
Diagram Reference: 16
Get Part
90119−08M79
Bolt, hexagon (fj1)
Diagram Reference: 17
Get Part
90119−08M82
Bolt, with washer(697)
Diagram Reference: 18
Get Part
62Y−45151−00
Cover, upper casing
Diagram Reference: 19
Get Part
97880−05016
Screw, pan head(6b0)
Diagram Reference: 20
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 21
Get Part
6H3−45155−00
Cap
Diagram Reference: 22
Get Part
69W−45318−00
Bushing, drive shaft
Diagram Reference: 23
Get Part
93420−36M01
Circlip (6a0)
Diagram Reference: 24
Get Part
68T−11112−00
21 −
Diagram Reference: 25
Get Part
62Y−11325−00
Anode
Diagram Reference: 26
Get Part
66M−11328−00
Grommet, anode
Diagram Reference: 27
Get Part
66M−11327−00−94
Cover, anode
Diagram Reference: 28
Get Part
66M−12535−00
Plate
Diagram Reference: 29
Get Part
97095−05012
Bolt, hexagon
Diagram Reference: 30
Get Part
92995−05600
Washer, plain (646)
Diagram Reference: 31
Get Part
97013−06020
Bolt(62y)
Diagram Reference: 32
Get Part
92903−06600
Washer, plain (646)
Diagram Reference: 33
Get Part
64J−46132−10
Gasket 1
Diagram Reference: 34
Get Part
