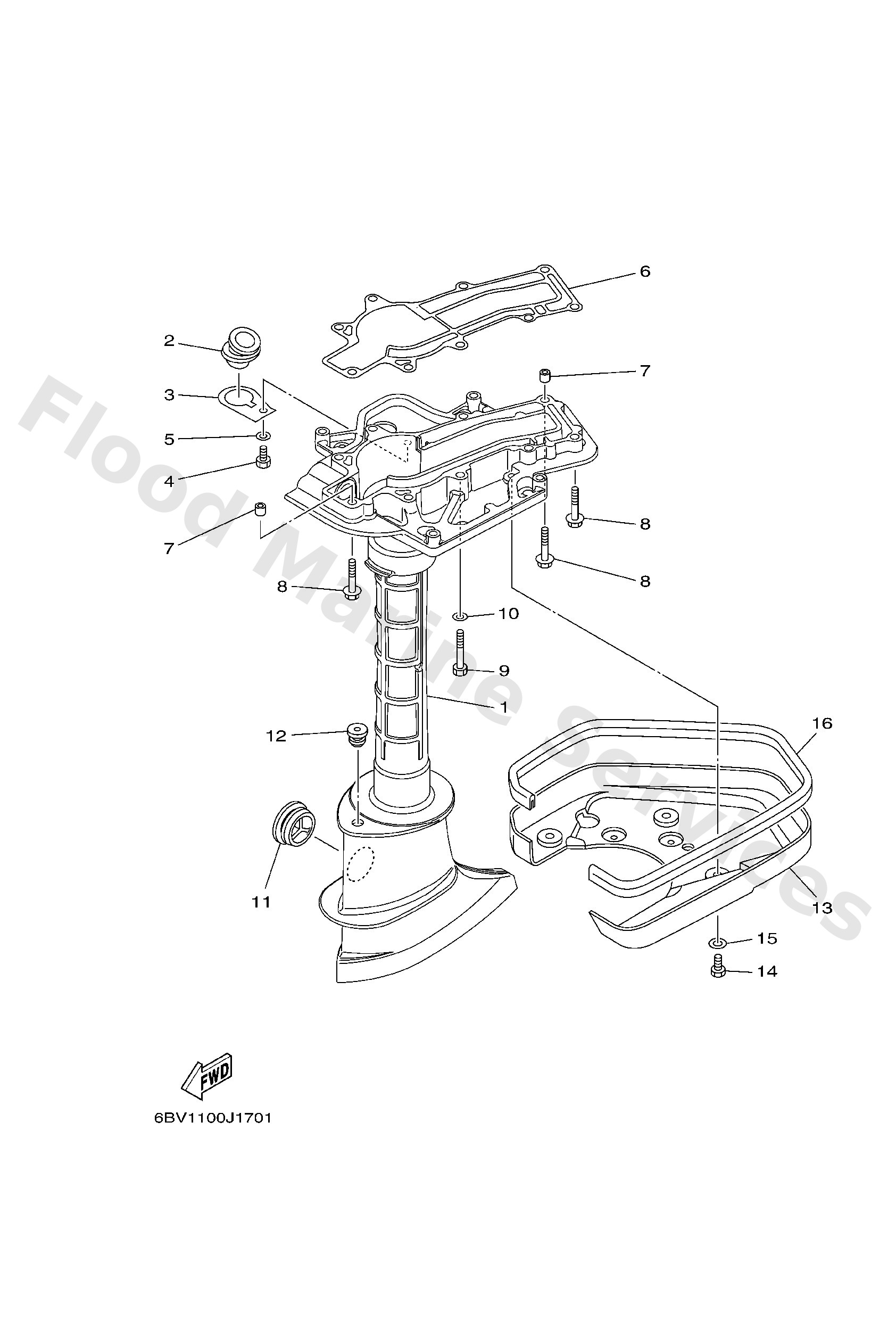

Diagram: UPPER CASING

Diagram

Parts List

6BXG5111004D
Upper casing & grease nipple
Diagram Reference: 1
Get Part
6BX1531600
Damper 1
Diagram Reference: 2
Get Part
6BXG532100
Plate
Diagram Reference: 3
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 4
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 5
Get Part
6BX4511300
Gasket, upper casing
Diagram Reference: 6
Get Part
9038706806
Collar(6e0)
Diagram Reference: 7
Get Part
9757506540
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Get Part
9707506050
Bolt(jf7)
Diagram Reference: 9
Get Part
6474515101
Cover, upper casing
Diagram Reference: 11
Get Part
9048010M13
Grommet (6e0)
Diagram Reference: 12
Get Part
6BXG272300
Cover, bottom
Diagram Reference: 13
Get Part
6BX4271600
Rubber, seal 1
Diagram Reference: 16
Get Part
