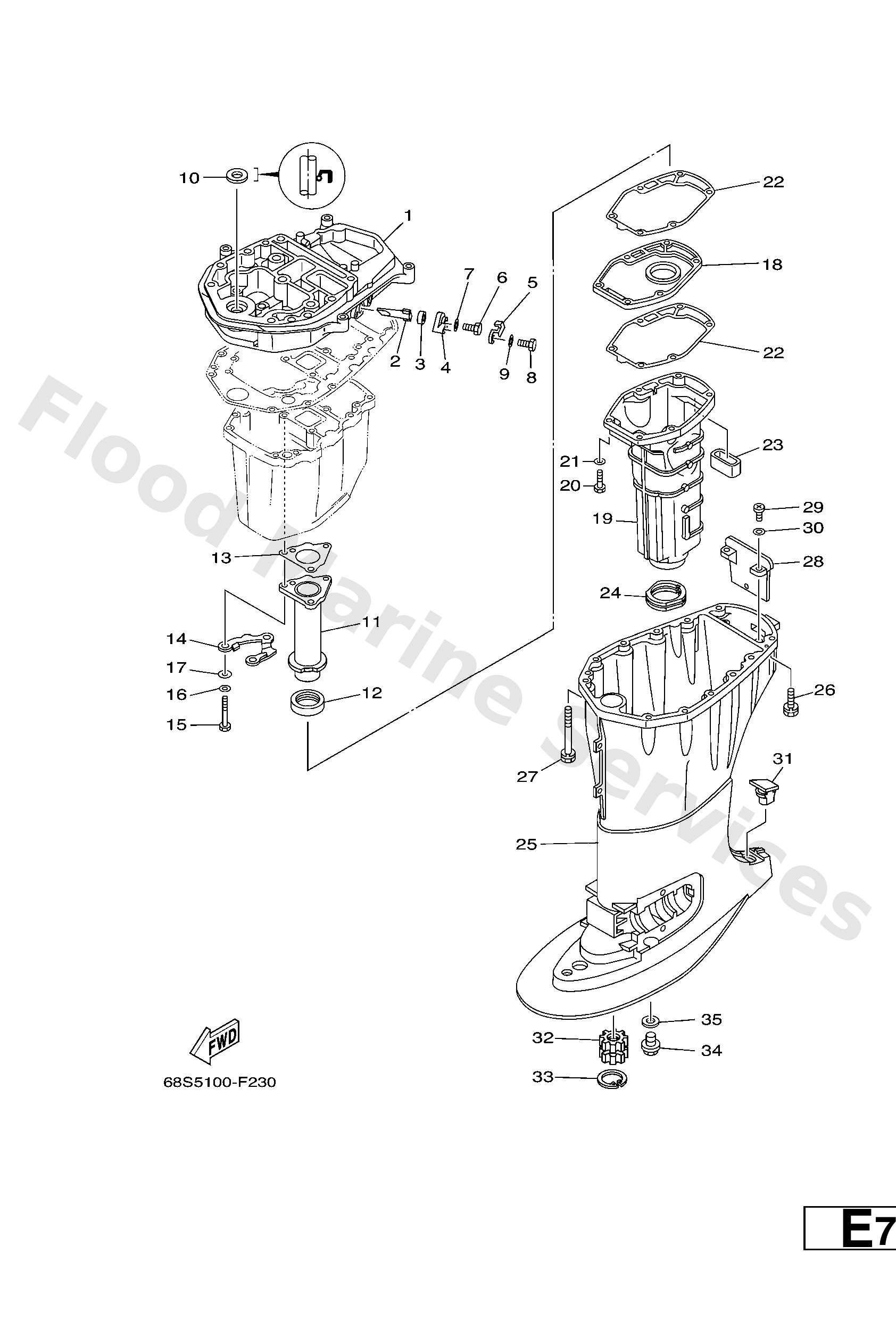

Diagram: UPPER CASING

Diagram

Parts List

69W411370294
Guide, Exhaust
Diagram Reference: 1
Get Part
62Y1132500
Anode
Diagram Reference: 2
Get Part
66M1132800
Grommet, anode
Diagram Reference: 3
Get Part
66M113270094
Cover, anode
Diagram Reference: 4
Get Part
66M1253500
Plate
Diagram Reference: 5
Get Part
9709505012
Bolt, hexagon
Diagram Reference: 6
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 7
Get Part
9701306020
Bolt(62y)
Diagram Reference: 8
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 9
Get Part
9310318011
Oil seal
Diagram Reference: 10
Get Part
69W4113100
Manifold, Ext. 1
Diagram Reference: 11
Get Part
64J4613210
Gasket 1
Diagram Reference: 12
Get Part
64J4113310
Gasket, exhaust manifold 1
Diagram Reference: 13
Get Part
64J4111600
Protector
Diagram Reference: 14
Get Part
9707506050
Bolt(jf7)
Diagram Reference: 15
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 16
Get Part
9020106015
Washer, plate
Diagram Reference: 17
Get Part
69W45181005B
Plate
Diagram Reference: 18
Get Part
69W14711005B
Muffler 1
Diagram Reference: 19
Get Part
9707506025
Bolt
Diagram Reference: 20
Get Part
62Y4113401
Gasket, exhaust manifold
Diagram Reference: 22
Get Part
62Y4512700
Seal
Diagram Reference: 23
Get Part
67C4512300
Gasket, muffler
Diagram Reference: 24
Get Part
67C45111214D
Casing, Upper
Diagram Reference: 25
Get Part
9011908M79
Bolt, hexagon (fj1)
Diagram Reference: 26
Get Part
9011908M82
Bolt, with washer(697)
Diagram Reference: 27
Get Part
67C4515100
Cover, upper casing
Diagram Reference: 28
Get Part
9788005016
Screw, pan head(6b0)
Diagram Reference: 29
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 30
Get Part
6C54515500
Cap
Diagram Reference: 31
Get Part
69W4531800
Bushing, drive shaft
Diagram Reference: 32
Get Part
9342036M01
Circlip (6a0)
Diagram Reference: 33
Get Part
9034014M06
Plug, straight screw(62y)
Diagram Reference: 34
Get Part
9043014M09
Gasket
Diagram Reference: 35
Get Part
