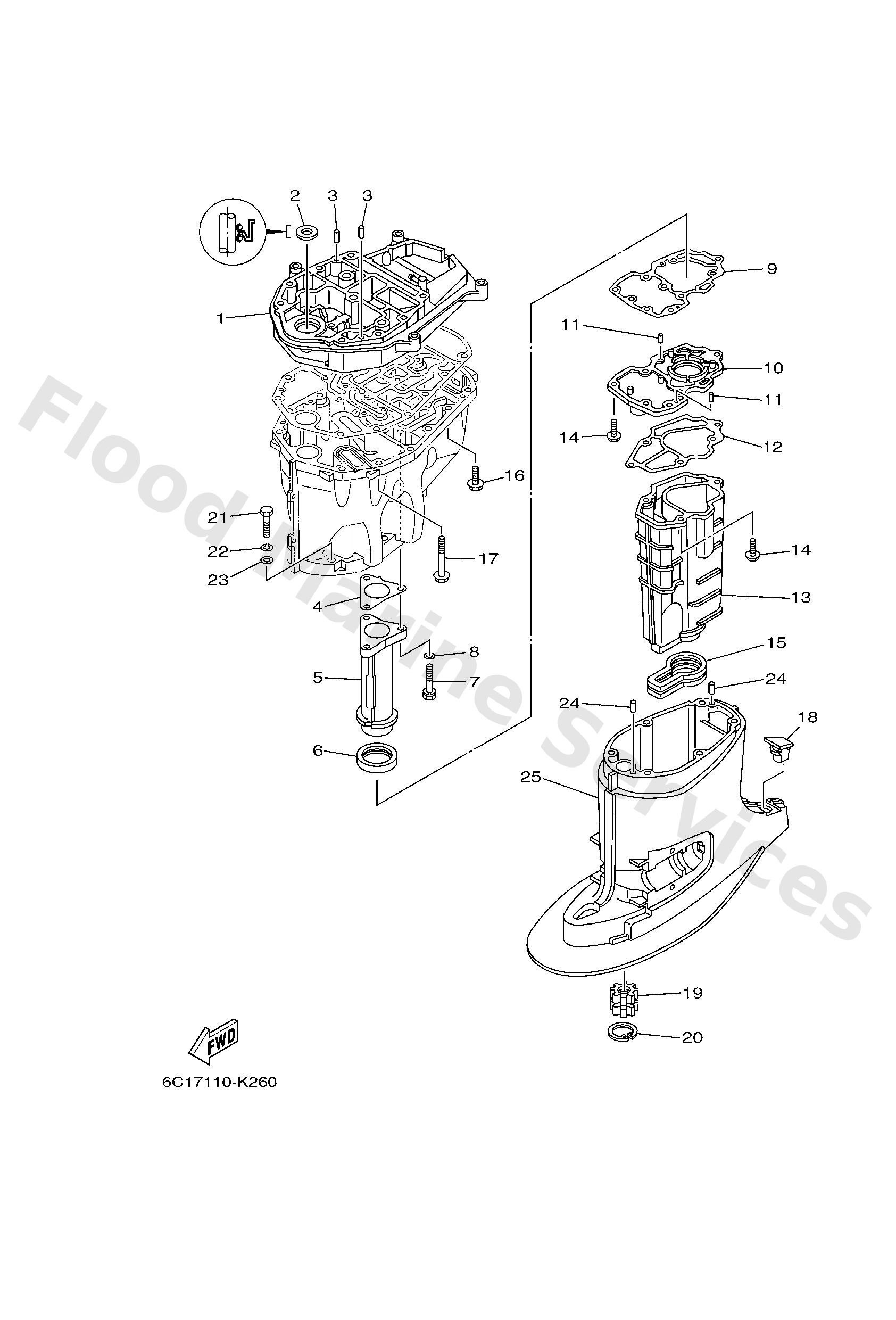

Diagram: UPPER CASING

Diagram

Parts List

6C54113701CA
Guide, exhaust
Diagram Reference: 1
Get Part
9310318011
Oil seal
Diagram Reference: 2
Get Part
9360812M05
Pin, dowel b (6e5)
Diagram Reference: 3
Get Part
6C54113300
Gasket, exhaust manifold 1
Diagram Reference: 4
Get Part
6C54113100CA
Manifold, ext. 1
Diagram Reference: 5
Get Part
6C54613200
Gasket 1
Diagram Reference: 6
Get Part
9011906261
Bolt, with washer
Diagram Reference: 7
Get Part
9020106015
Washer, plate
Diagram Reference: 8
Get Part
6C54113400
Gasket, exhaust manifold
Diagram Reference: 9
Get Part
6C54518100CA
Plate
Diagram Reference: 10
Get Part
9360410M03
Pin, dowel (688)
Diagram Reference: 11
Get Part
6C54113500
Gasket, exhaust manifold
Diagram Reference: 12
Get Part
6C51471100CA
Muffler 1
Diagram Reference: 13
Get Part
9757506525
Bolt, hexagon w/w deep recess
Diagram Reference: 14
Get Part
6C54512300
Gasket, muffler
Diagram Reference: 15
Get Part
9011908102
Bolt, with washer
Diagram Reference: 16
Get Part
9011908132
Bolt, with washer
Diagram Reference: 17
Get Part
6C54515500
Cap
Diagram Reference: 18
Get Part
69W4531800
Bushing, drive shaft
Diagram Reference: 19
Get Part
9342036M01
Circlip (6a0)
Diagram Reference: 20
Get Part
9707510045
Bolt(64d)
Diagram Reference: 21
Get Part
9299510100
Ybs67-10 washer, spring
Diagram Reference: 22
Get Part
9299510600
Washer, plate
Diagram Reference: 23
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 24
Get Part
6C545111008D
Casing, upper
Diagram Reference: 25
Get Part
