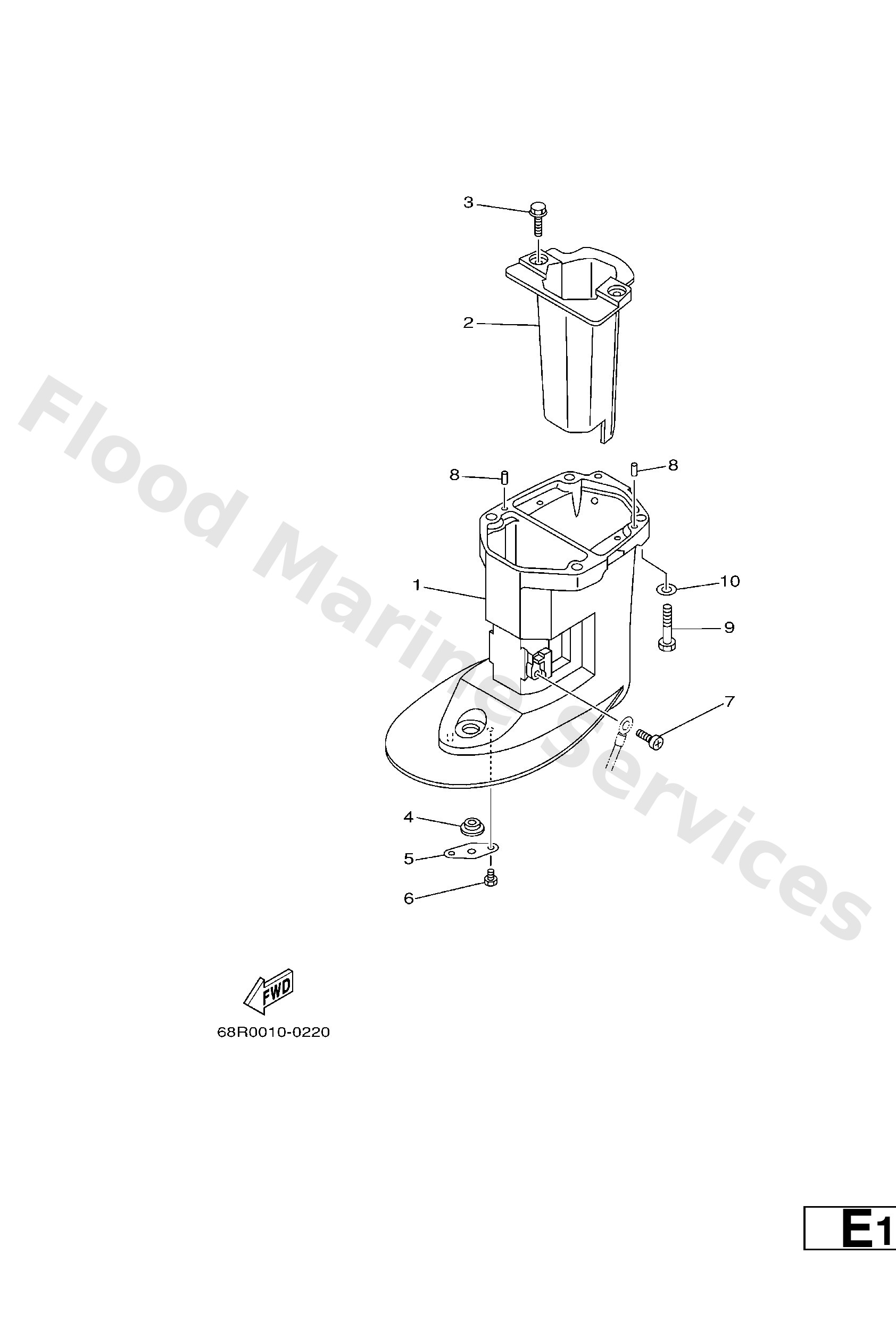

Diagram: UPPER CASING

Diagram

Parts List

68T45111004D (S)
Casing upper
Diagram Reference: 1
Get Part
68T45111104D (L)
Casing, upper
Diagram Reference: 1
Get Part
68T14711005B
Muffler 1
Diagram Reference: 2
Get Part
9757506514
Bolt, hexagon w/w deep recess
Diagram Reference: 3
Get Part
9048014M54
Grommet
Diagram Reference: 4
Get Part
68T4532100
Plate
Diagram Reference: 5
Get Part
9709506008
Bolt (fj1)
Diagram Reference: 6
Get Part
9788505008
Screw, pan head
Diagram Reference: 7
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 8
Get Part
9707508035
Bolt(70w)
Diagram Reference: 9
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 10
Get Part
