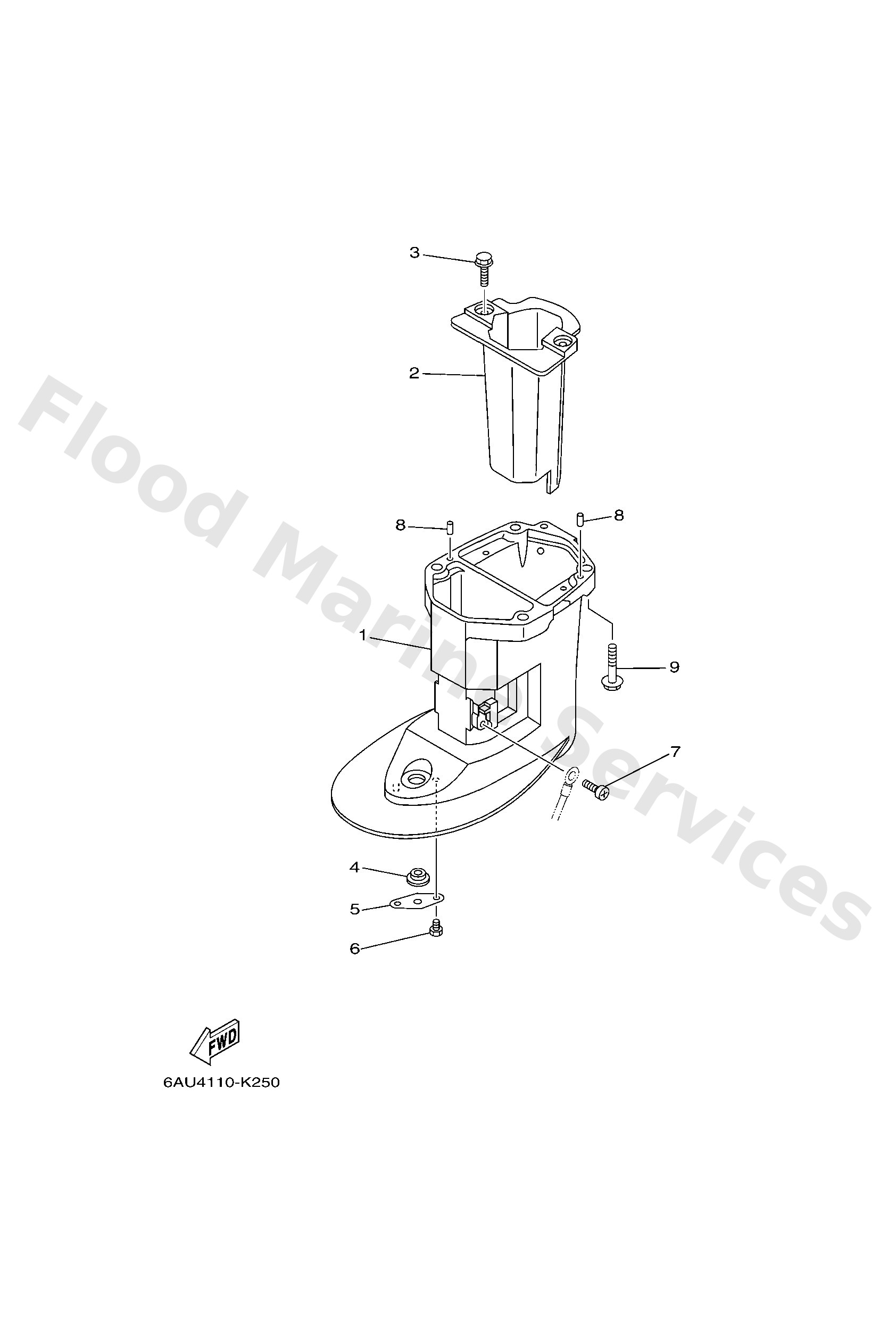

Diagram: UPPER CASING

Diagram

Parts List

60RG5111104D (L(22.1"))
Casing, upper
Diagram Reference: 1
Get Part
60RG5111004D (S(17.1"))
Casing upper
Diagram Reference: 1
Get Part
60RE471100CA
Muffler 1
Diagram Reference: 2
Get Part
9757506514
Bolt, hexagon w/w deep recess
Diagram Reference: 3
Get Part
9048014M54
Grommet
Diagram Reference: 4
Get Part
68T4532100
Plate
Diagram Reference: 5
Get Part
9709506008
Bolt (fj1)
Diagram Reference: 6
Get Part
9788505008
Screw, pan head
Diagram Reference: 7
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 8
Get Part
9757508535
Bolt(70w)
Diagram Reference: 9
Get Part
