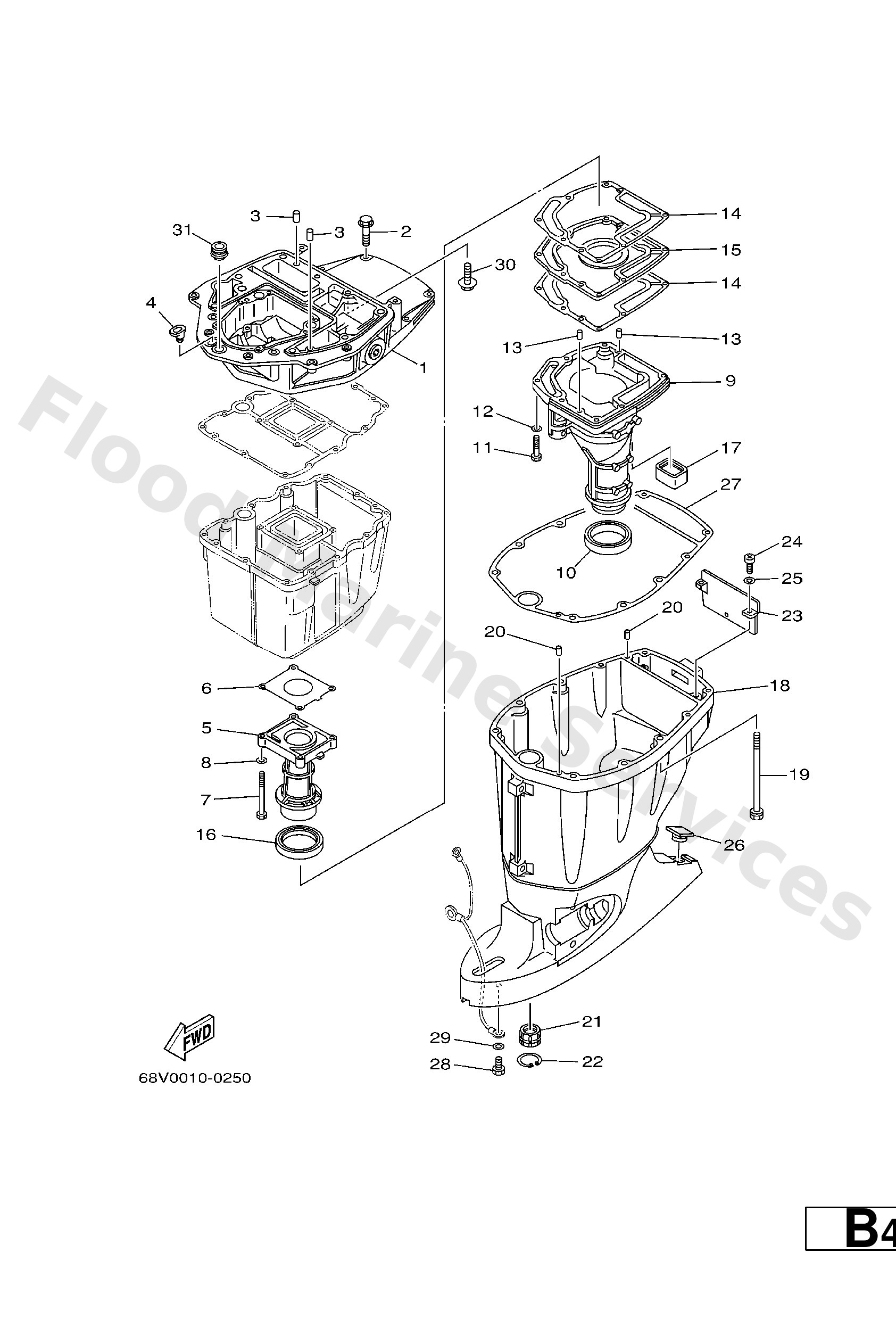

Diagram: UPPER CASING

Diagram

Parts List

67F−41137−01−94

Guide, exhaust

Diagram Reference: 1

97575−08540

Bolt, hexagon w/w deep recess

Diagram Reference: 2

93608−16M16

Pin, dowel(6t4)

Diagram Reference: 3

6G1−42727−00

Grommet

Diagram Reference: 4

67F−41131−00−5B

Manifold, ext. 1

Diagram Reference: 5

67F−41133−A0

Gasket, exhaust manifold 1

Diagram Reference: 6

97075−06070

Bolt(4kg)

Diagram Reference: 7

92995−06600

Washer, plain (646)

Diagram Reference: 8

68V−14711−10−5B (L)

Muffler 1

Diagram Reference: 9

68V−14711−30−5B (X)

Muffler 1

Diagram Reference: 9

68V−45123−00

Gasket, muffler

Diagram Reference: 10

97075−06030

Bolt(jf7)

Diagram Reference: 11

93606−19M23

Pin, dowel

Diagram Reference: 13

67F−41134−A0

Gasket, exhaust manifold

Diagram Reference: 14

67F−45181−00−5B

Plate

Diagram Reference: 15

67F−41138−00

Seal, ext. 1

Diagram Reference: 16

67F−45127−00

Seal

Diagram Reference: 17

68V−45111−10−8D (L)

Casing, upper

Diagram Reference: 18

68V−45111−30−8D (X)

Casing, upper

Diagram Reference: 18

90119−10M08

Bolt, with washer

Diagram Reference: 19

6E5−45318−00

Bushing, drive shaft 3

Diagram Reference: 21

93420−36M01

Circlip (6a0)

Diagram Reference: 22

67F−45151−00

Cover, upper casing

Diagram Reference: 23

97880−06016

Screw pan head

Diagram Reference: 24

92990−06600

Washer, plain (646)

Diagram Reference: 25

6H3−45155−00

Cap

Diagram Reference: 26

67F−45113−00

Gasket, upper casing

Diagram Reference: 27

97095−06010

Bolt

Diagram Reference: 28

90119−08M58

Bolt, with washer

Diagram Reference: 30

67F−42724−00

Grommet

Diagram Reference: 31
