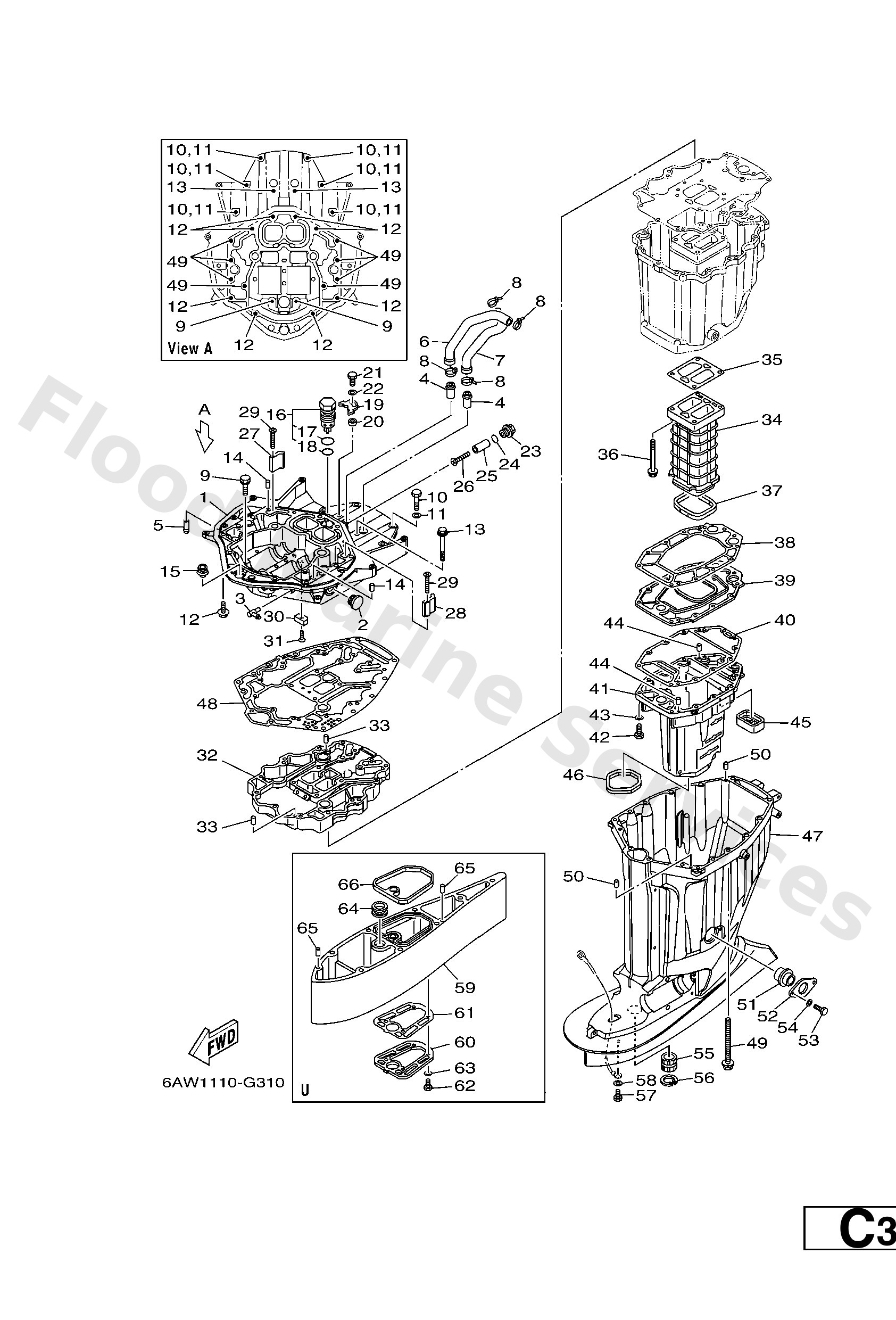

Parts List
Guide, Exhaust
Diagram Reference: 1
Plug, straight screw
Diagram Reference: 2
Nipple, hose
Diagram Reference: 3
Pipe 4
Diagram Reference: 4
Pipe
Diagram Reference: 5
Hose 5
Diagram Reference: 6
Hose,3
Diagram Reference: 7
Clamp(63m)
Diagram Reference: 8
Bolt, hexagon (fj1)
Diagram Reference: 9
Bolt(64d)
Diagram Reference: 10
Washer, plate
Diagram Reference: 11
Bolt, with washer
Diagram Reference: 12
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Pin, dowel(6t4)
Diagram Reference: 14
Grommet
Diagram Reference: 15
Pressure control valve assembly
Diagram Reference: 16
O-ring
Diagram Reference: 17
O-ring(72f)
Diagram Reference: 18
Plate, guide stopper 1
Diagram Reference: 19
Collar 8121444900
Diagram Reference: 20
Bolt(7u8)
Diagram Reference: 21
Washer, plain (646)
Diagram Reference: 63
Plug, blind
Diagram Reference: 23
O-ring(m01)
Diagram Reference: 24
Anode 7
Diagram Reference: 25
Screw, flat head
Diagram Reference: 26
Anode 8
Diagram Reference: 27
Anode 9
Diagram Reference: 28
Anode
Diagram Reference: 30
Screw, countersunk
Diagram Reference: 31
Manifold, ext. 1
Diagram Reference: 32
Manifold, exhaust
Diagram Reference: 34
Gasket, exhaust manifold
Diagram Reference: 35
Bolt, with washer
Diagram Reference: 36
Seal, ext. 1
Diagram Reference: 37
Gasket, exhaust manifold
Diagram Reference: 38
Plate
Diagram Reference: 39
Gasket, exhaust manifold 4
Diagram Reference: 40
Muffler 1
Diagram Reference: 41
Bolt(70w)
Diagram Reference: 42
Washer, plain (663)
Diagram Reference: 43
Pin, dowel
Diagram Reference: 44
Seal
Diagram Reference: 45
Gasket, muffler
Diagram Reference: 46
Casing, upper
Diagram Reference: 47
Gasket, upper casing
Diagram Reference: 48
Bolt, with washer
Diagram Reference: 49
Damper 1
Diagram Reference: 51
Cover, upper casing 2
Diagram Reference: 52
Bolt(gj3)
Diagram Reference: 53
Bushing, drive shaft
Diagram Reference: 55
Circlip
Diagram Reference: 56
Bolt
Diagram Reference: 57
Extension
Diagram Reference: 59
Cover, extension
Diagram Reference: 60
Gasket, plate
Diagram Reference: 61
Bolt(7u8)
Diagram Reference: 62
Damper, water seal 2
Diagram Reference: 64
Pin, dowel b (6e5)
Diagram Reference: 65
Damper
Diagram Reference: 66
