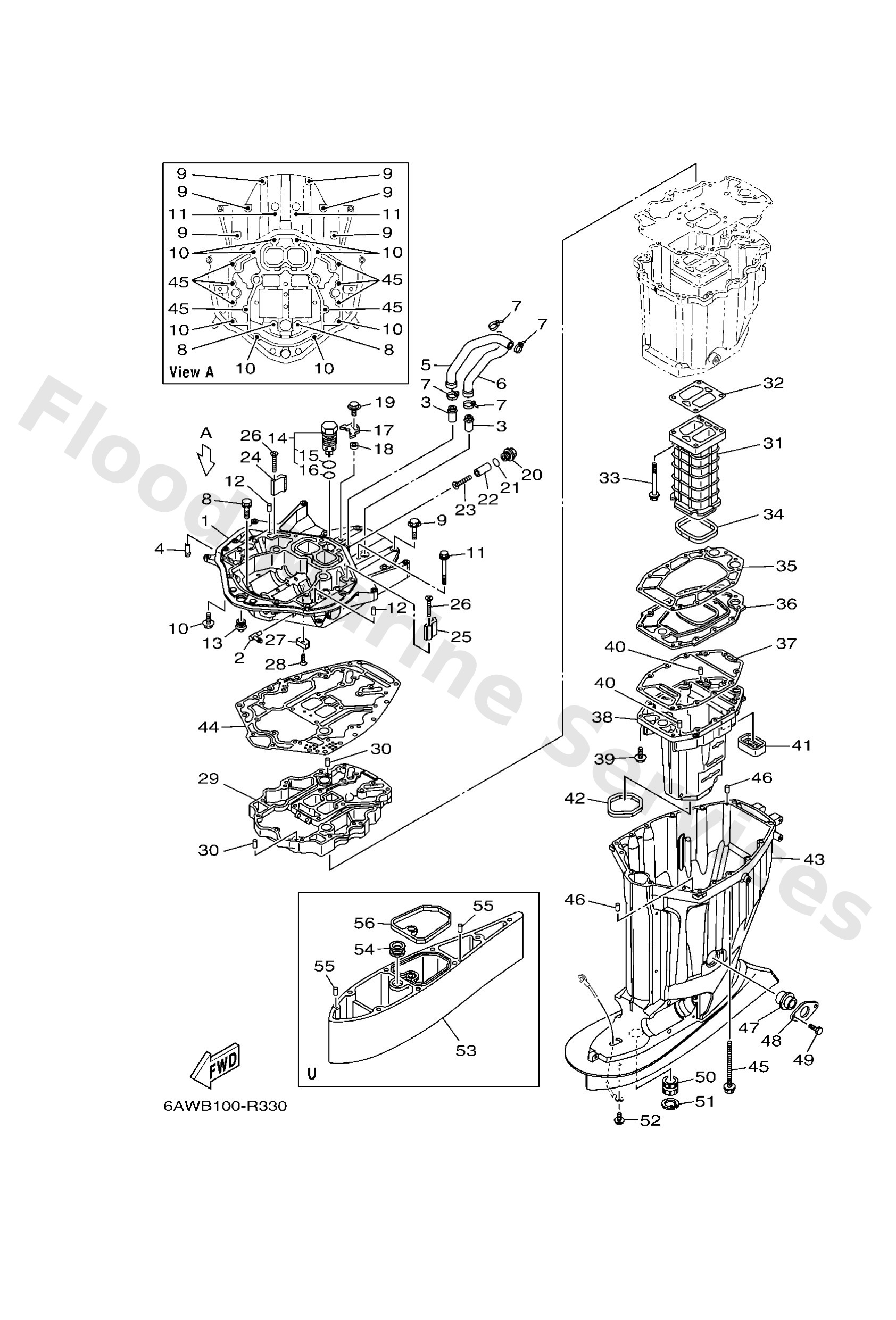

Parts List
Guide, exhaust
Diagram Reference: 1
Nipple, hose
Diagram Reference: 2
Pipe 4
Diagram Reference: 3
Pipe
Diagram Reference: 4
Hose 5
Diagram Reference: 5
Hose,3
Diagram Reference: 6
Clamp(63m)
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Bolt, with washer
Diagram Reference: 10
Bolt, hexagon w/w deep recess
Diagram Reference: 11
Pin, dowel(6t4)
Diagram Reference: 12
Grommet
Diagram Reference: 13
Pressure control valve assembly
Diagram Reference: 14
O-ring
Diagram Reference: 15
O-ring(72f)
Diagram Reference: 16
Plate, guide stopper 1
Diagram Reference: 17
Collar 8121444900
Diagram Reference: 18
Bolt(7u8)
Diagram Reference: 19
Plug, blind
Diagram Reference: 20
O-ring(m01)
Diagram Reference: 21
Anode 7
Diagram Reference: 22
Screw, flat head
Diagram Reference: 23
Anode 8
Diagram Reference: 24
Anode 9
Diagram Reference: 25
Anode
Diagram Reference: 27
Screw, countersunk
Diagram Reference: 28
Manifold, ext. 1
Diagram Reference: 29
Manifold, exhaust
Diagram Reference: 31
Gasket, exhaust manifold
Diagram Reference: 32
Bolt, with washer
Diagram Reference: 33
Seal, ext. 1
Diagram Reference: 34
Gasket, exhaust manifold
Diagram Reference: 35
Plate
Diagram Reference: 36
Gasket, exhaust manifold 4
Diagram Reference: 37
Muffler 1
Diagram Reference: 38
Bolt(70w)
Diagram Reference: 39
Pin, dowel
Diagram Reference: 40
Seal
Diagram Reference: 41
Gasket, muffler
Diagram Reference: 42
Casing, upper
Diagram Reference: 43
Gasket, upper casing
Diagram Reference: 44
Bolt, with washer
Diagram Reference: 45
Damper 1
Diagram Reference: 47
Cover, upper casing 2
Diagram Reference: 48
Bolt(gh1)
Diagram Reference: 49
Bushing, drive shaft
Diagram Reference: 50
Circlip
Diagram Reference: 51
Bolt, flange(7ht)
Diagram Reference: 52
Extension
Diagram Reference: 53
Damper, water seal 2
Diagram Reference: 54
Pin, dowel b (6e5)
Diagram Reference: 55
Damper
Diagram Reference: 56
