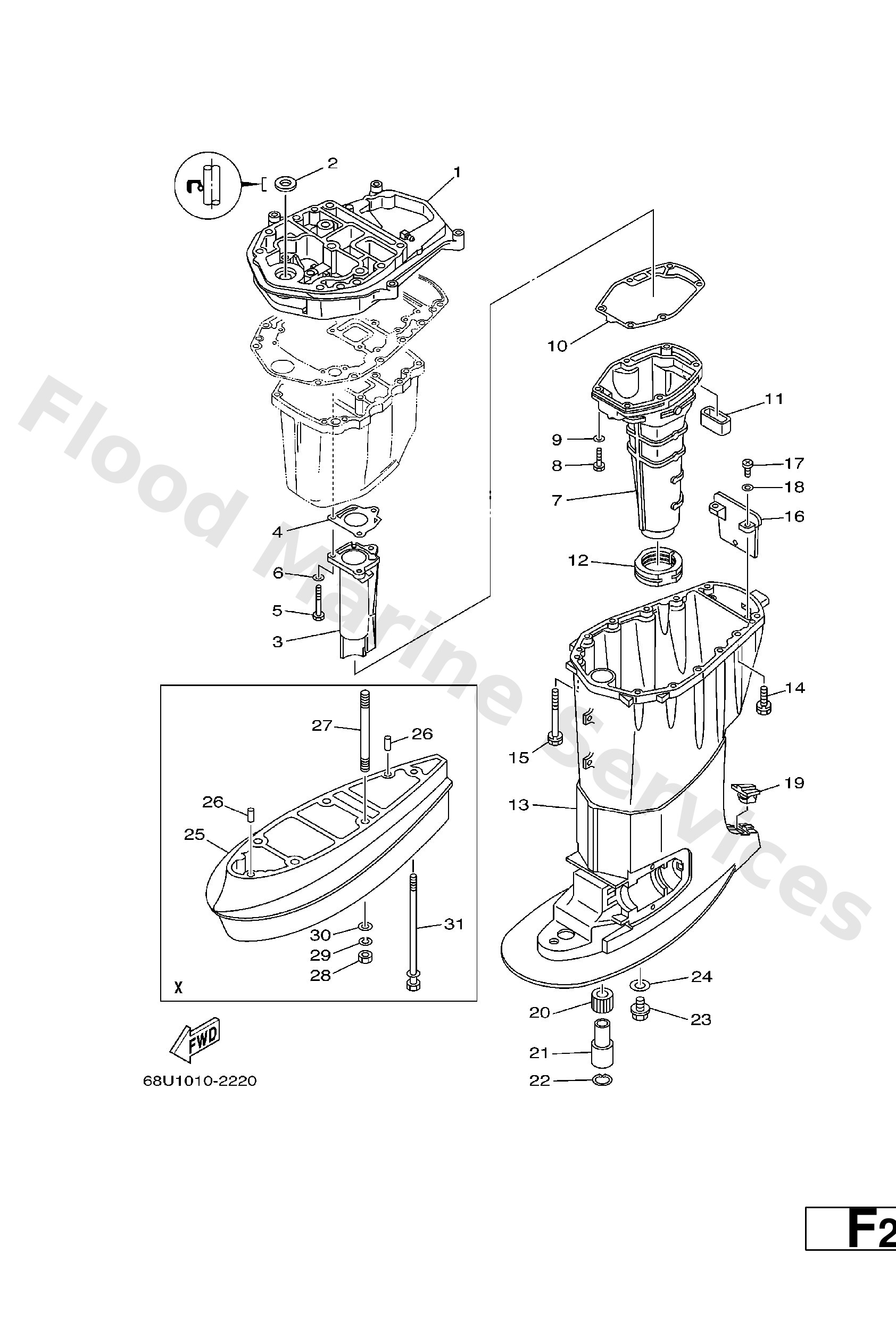

Diagram: UPPER CASING

Diagram

Parts List

68U411370094
Guide, exhaust
Diagram Reference: 1
Get Part
93104--16M01
Oil seal(6a8)
Diagram Reference: 2
Get Part
68U41131005B
Manifold, ext. 1
Diagram Reference: 3
Get Part
67C--41133--00
Gasket, exhaust manifold 1
Diagram Reference: 4
Get Part
97075--06050
Bolt(jf7)
Diagram Reference: 5
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 6
Get Part
67C14711125B
Muffler 1
Diagram Reference: 7
Get Part
97075--06025
Bolt
Diagram Reference: 8
Get Part
62Y4113401
Gasket, exhaust manifold
Diagram Reference: 10
Get Part
62Y--45127--00
Seal
Diagram Reference: 11
Get Part
67C--45123--00
Gasket, muffler
Diagram Reference: 12
Get Part
67C45111204D
Casing, upper
Diagram Reference: 13
Get Part
90119--08M79
Bolt, hexagon (fj1)
Diagram Reference: 14
Get Part
90119--08M80
Bolt, with washer(688)
Diagram Reference: 15
Get Part
67C--45151--00
Cover, upper casing
Diagram Reference: 16
Get Part
97880--05016
Screw, pan head(6b0)
Diagram Reference: 17
Get Part
92990--05600
Washer, plain (646)
Diagram Reference: 18
Get Part
6H34515500
Cap
Diagram Reference: 19
Get Part
66T4531800
Bushing, drive shaft 3
Diagram Reference: 20
Get Part
90387--23002
Collar
Diagram Reference: 21
Get Part
93420--36M01
Circlip (6a0)
Diagram Reference: 22
Get Part
90340--14M06
Plug, straight screw(62y)
Diagram Reference: 23
Get Part
90430--14M09
Gasket
Diagram Reference: 24
Get Part
63D45211024D (X)
Extension
Diagram Reference: 25
Get Part
93606--12019 (X)
Pin, dowel (614)
Diagram Reference: 26
Get Part
90116--10M53 (X)
Bolt, stud
Diagram Reference: 27
Get Part
95380--10600 (X)
Nut(624)
Diagram Reference: 28
Get Part
92990--10100 (X)
Ybs67-10 washer, spring
Diagram Reference: 29
Get Part
92990--10600 (X)
Washer, plate
Diagram Reference: 30
Get Part
90119--08M00 (X)
Bolt, with washer(62x)
Diagram Reference: 31
