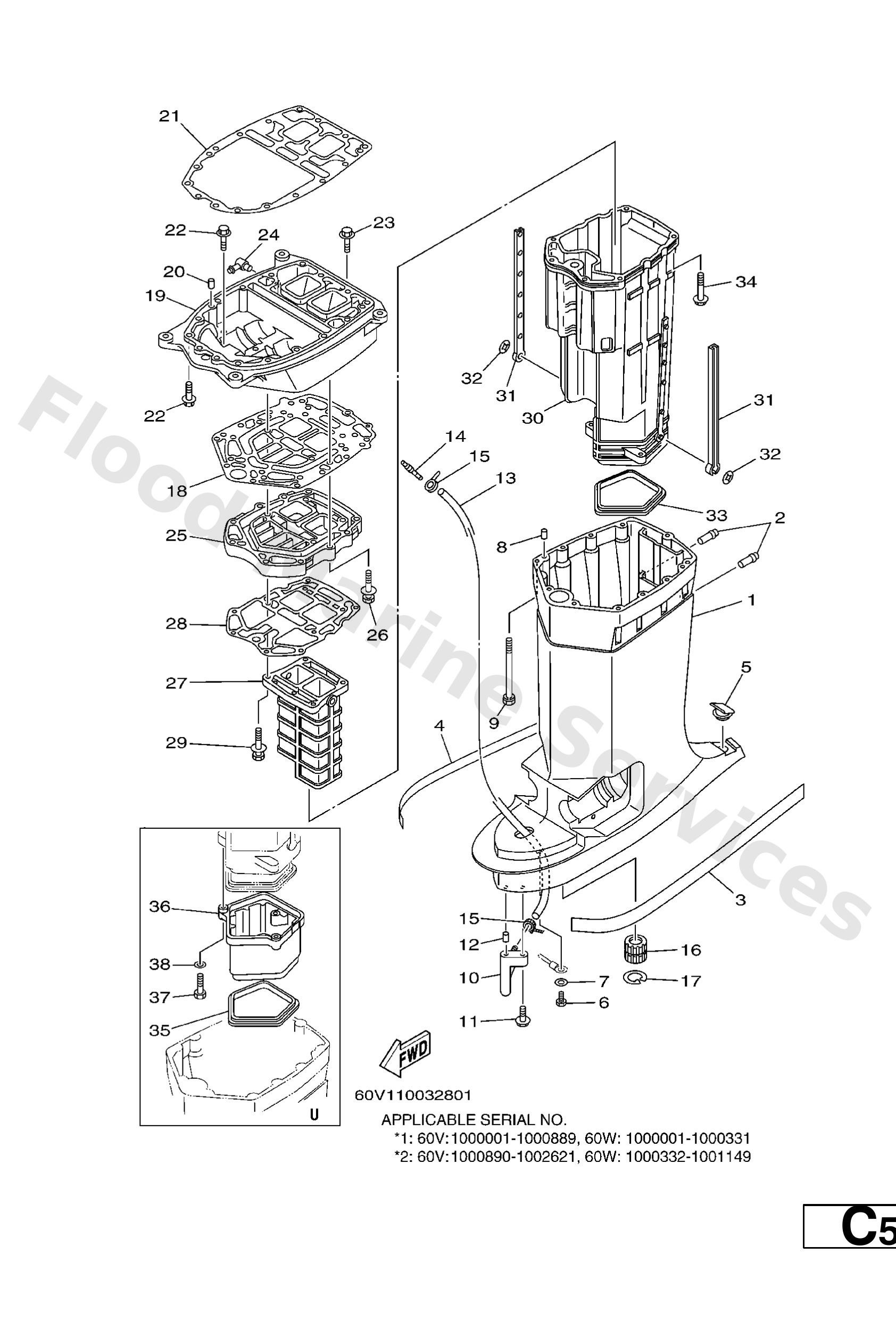

Diagram: UPPER CASING
Parts List
Casing, Upper
Diagram Reference: 1
Casing, Upper
Diagram Reference: 1
Pipe, joint
Diagram Reference: 2
Mark 1
Diagram Reference: 3
Mark
Diagram Reference: 4
Bolt
Diagram Reference: 6
Washer, plain (646)
Diagram Reference: 38
Pin, dowel b (6e5)
Diagram Reference: 8
Bolt, with washer
Diagram Reference: 9
Nipple, hose
Diagram Reference: 10
Bolt, with washer
Diagram Reference: 11
Pin, dowel (614)
Diagram Reference: 12
Hose (l1160)
Diagram Reference: 13
Hose (l1160)
Diagram Reference: 13
End, nipple
Diagram Reference: 14
Clamp
Diagram Reference: 15
Bushing, drive shaft 3
Diagram Reference: 16
Circlip (6a0)
Diagram Reference: 17
Gasket, upper casing
Diagram Reference: 18
Guide, exhaust
Diagram Reference: 19
Gasket, upper casing
Diagram Reference: 21
Bolt, with washer
Diagram Reference: 22
Bolt, with washer
Diagram Reference: 23
Nipple, hose
Diagram Reference: 24
Manifold, Ext. 1
Diagram Reference: 25
Bolt, with washer
Diagram Reference: 22
Bolt, With Washer
Diagram Reference: 26
Manifold, exhaust
Diagram Reference: 27
Gasket, exhaust manifold
Diagram Reference: 28
Bolt, with washer
Diagram Reference: 29
Muffler 1
Diagram Reference: 30
Damper, muffler
Diagram Reference: 31
Nut, spring (6e5)
Diagram Reference: 32
Gasket, muffler
Diagram Reference: 35
Muffler 2
Diagram Reference: 36
Bolt(j52)
Diagram Reference: 37
