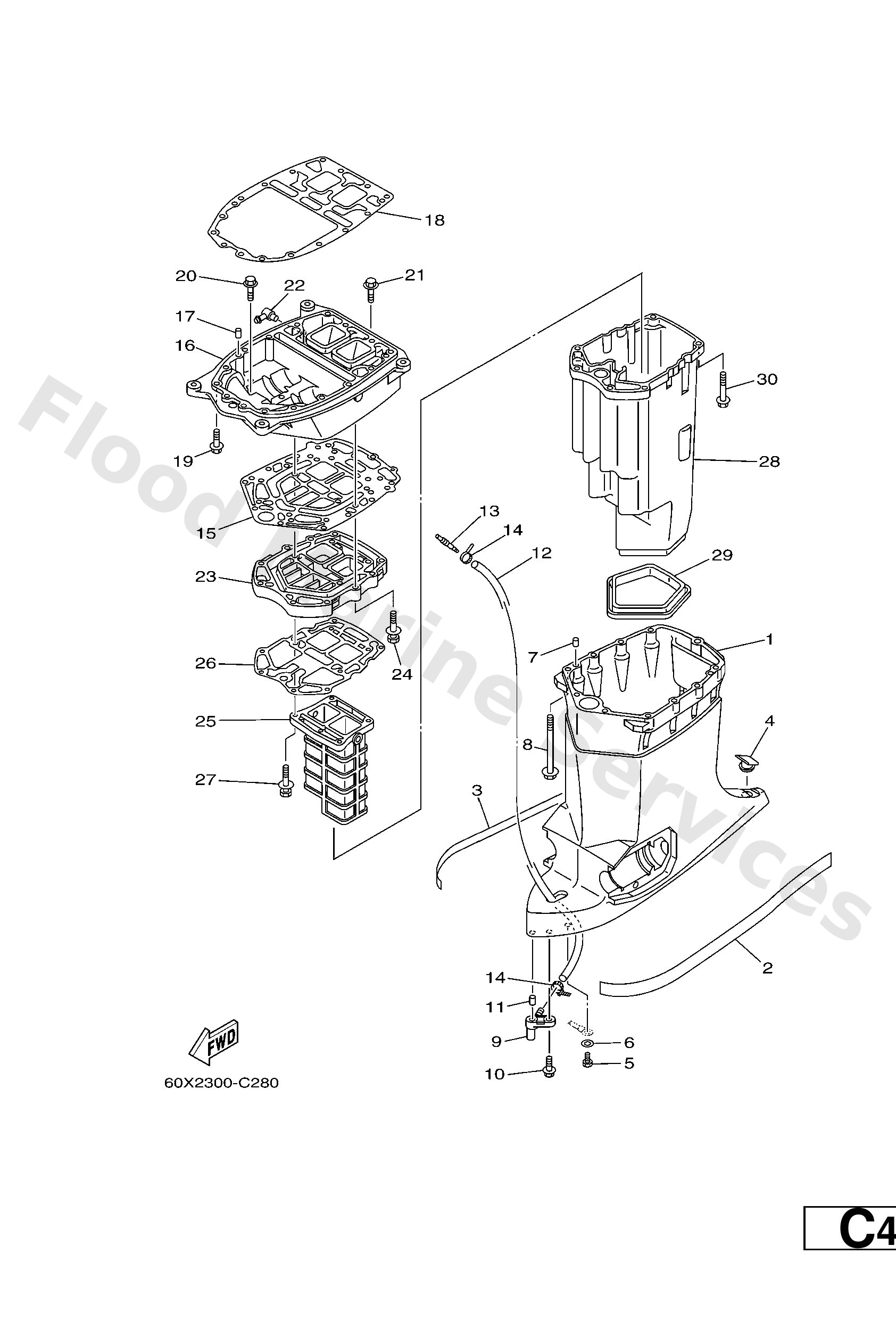

Diagram: UPPER CASING
Parts List
Casing, upper
Diagram Reference: 1
Mark 1
Diagram Reference: 2
Mark 2
Diagram Reference: 3
Bolt
Diagram Reference: 5
Washer, plain (646)
Diagram Reference: 6
Pin, dowel b (6e5)
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Nipple, hose
Diagram Reference: 9
Bolt, with washer
Diagram Reference: 10
Pin, dowel (614)
Diagram Reference: 11
Hose (l1160)
Diagram Reference: 12
End, nipple
Diagram Reference: 13
Clamp
Diagram Reference: 14
Gasket, upper casing
Diagram Reference: 15
Guide, exhaust
Diagram Reference: 16
Gasket, upper casing
Diagram Reference: 18
Bolt, with washer
Diagram Reference: 19
Bolt, With Washer
Diagram Reference: 20
Bolt, with washer
Diagram Reference: 21
Nipple, hose
Diagram Reference: 22
Bolt, With Washer
Diagram Reference: 24
Manifold, exhaust
Diagram Reference: 25
Gasket, exhaust manifold
Diagram Reference: 26
Bolt, with washer
Diagram Reference: 27
Muffler 1
Diagram Reference: 28
Gasket, muffler
Diagram Reference: 29
