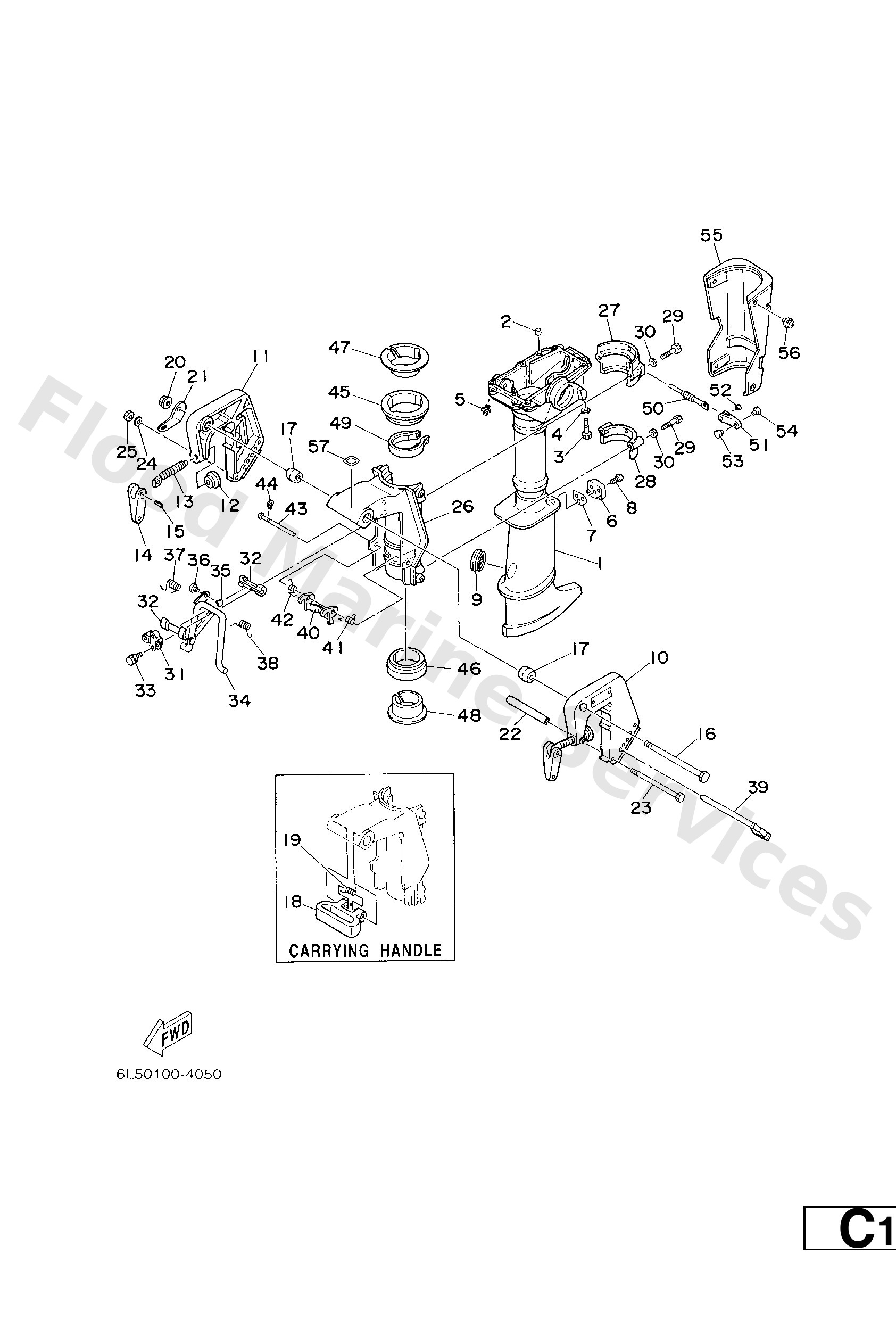

Diagram: UPPER CASING & BRACKET

Diagram

Parts List

6L545111024D
Casing, upper
Diagram Reference: 1
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 2
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 3
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 4
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 5
Get Part
6L54515200
Cover, upper casing 2
Diagram Reference: 6
Get Part
6L545115A0
Gasket,upper casing 3
Diagram Reference: 7
Get Part
9014905M08
Ybs53-525 screw,flat head
Diagram Reference: 8
Get Part
6474515101
Cover, upper casing
Diagram Reference: 9
Get Part
6L543111014D
Bracket, Clamp 1
Diagram Reference: 10
Get Part
6L543112004D
Bracket, Clamp 2
Diagram Reference: 11
Get Part
6204311400
Pad, transom clamp
Diagram Reference: 12
Get Part
6E04311601
Screw, transom clamp
Diagram Reference: 13
Get Part
6E04311801
Handle, transom clamp
Diagram Reference: 14
Get Part
9024304M01
Pin(6a1)
Diagram Reference: 15
Get Part
9010108M10
Bolt(6l5)
Diagram Reference: 16
Get Part
6G14313600
Piece, friction
Diagram Reference: 17
Get Part
6L54212100
Bracket
Diagram Reference: 18
Get Part
9050816M30
Spring, torsion(6l5)
Diagram Reference: 19
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 20
Get Part
6A14311301
Plate, clamp bracket
Diagram Reference: 21
Get Part
9038706M11
Collar
Diagram Reference: 22
Get Part
9010106335
Bolt, hexagon (624)
Diagram Reference: 23
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 24
Get Part
9538006600
Nut(661)
Diagram Reference: 25
Get Part
6L543311014D
Bracket, swivel 1
Diagram Reference: 26
Get Part
6L544511004D
Cover, upper mount
Diagram Reference: 27
Get Part
6L544553004D
Cover, lower mount
Diagram Reference: 28
Get Part
9709506035
Bolt(j52)
Diagram Reference: 29
Get Part
6E0433130094
Bracket, swivel 3
Diagram Reference: 31
Get Part
6204318900
Bushing
Diagram Reference: 32
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 33
Get Part
6L54318100
Lever, tilt stop 1
Diagram Reference: 34
Get Part
6L54419600
Indicator 3
Diagram Reference: 35
Get Part
6L54419700
Indicator 4
Diagram Reference: 36
Get Part
9050816020
Spring 6474319800
Diagram Reference: 37
Get Part
9050816021
Spring 6474318800
Diagram Reference: 38
Get Part
6L54316000
Tilt rod assembly
Diagram Reference: 39
Get Part
6L54361400
Plate, tilt lock
Diagram Reference: 40
Get Part
9050808M26
Spring, torsion(6l5)
Diagram Reference: 41
Get Part
9050808M27
Spring, torsion(6l5)
Diagram Reference: 42
Get Part
6L54365900
Shaft, reverse lock
Diagram Reference: 43
Get Part
9908005600
Circlip(22k)
Diagram Reference: 44
Get Part
6L54253700
Bushing, pivot shaft
Diagram Reference: 45
Get Part
6L54253800
Bushing, pivot shaft
Diagram Reference: 46
Get Part
6L54253900
Bushing, pivot shaft
Diagram Reference: 47
Get Part
6L54254900
Bushing, pivot shaft
Diagram Reference: 48
Get Part
6E04252803
Plate, friction
Diagram Reference: 49
Get Part
6L54252901
Screw, friction piece
Diagram Reference: 50
Get Part
6L54256100
Knob, steering lock
Diagram Reference: 51
Get Part
9026604M05
Rivet(6l5)
Diagram Reference: 52
Get Part
6L54331811
Cover
Diagram Reference: 55
Get Part
9015906M10
Screw, with washer(6l5)
Diagram Reference: 56
Get Part
6A14279201
Mark (100)1)
Diagram Reference: 57
