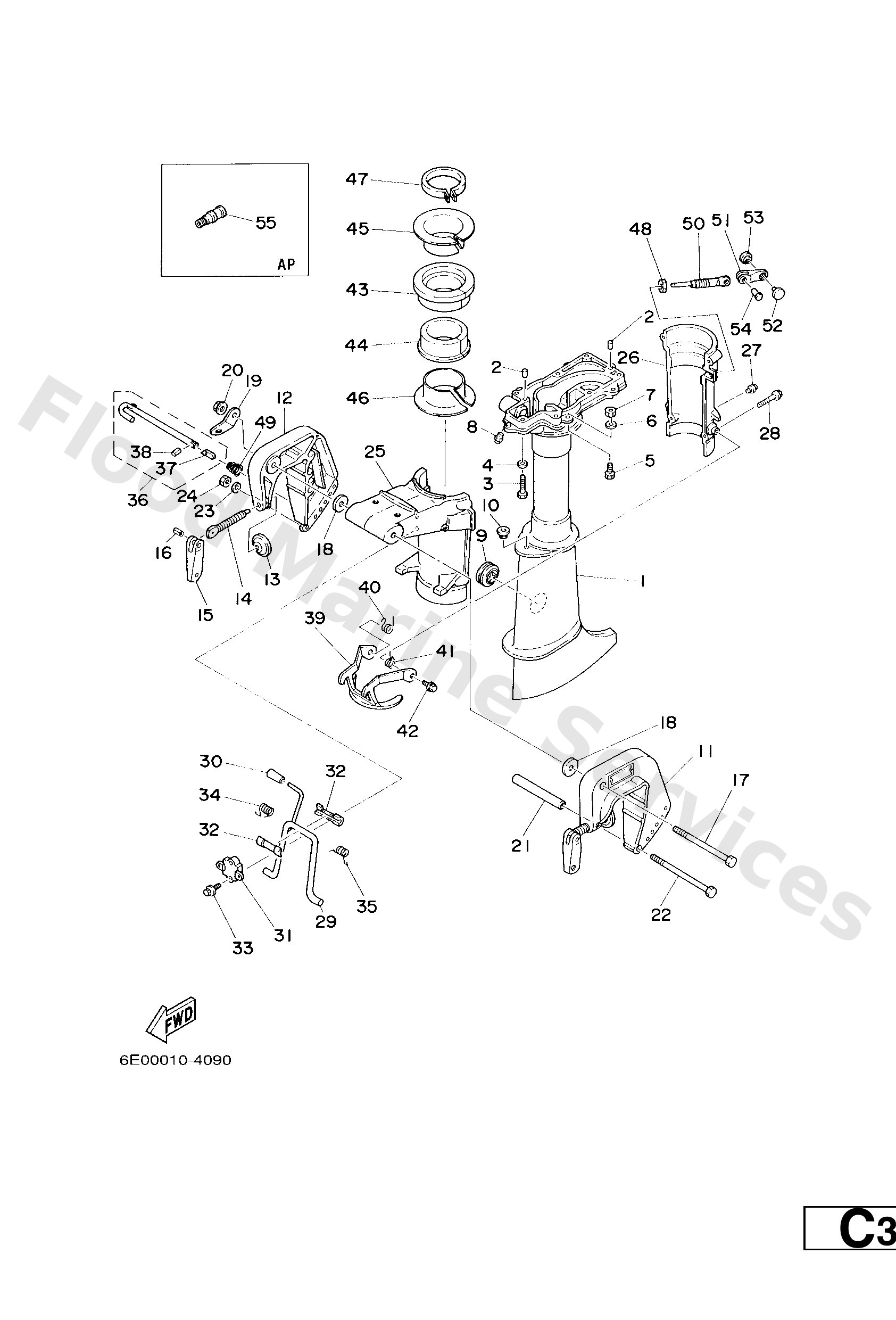

Diagram: UPPER CASING & BRACKET

Diagram

Parts List

6E045111124D (L)
Casing, upper
Diagram Reference: 1
Get Part
6E045111024D (S)
Casing, upper
Diagram Reference: 1
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 2
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 3
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 4
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
9538006700
Nut
Diagram Reference: 7
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 8
Get Part
6474515101
Cover, upper casing
Diagram Reference: 9
Get Part
9048010M13
Grommet (6e0)
Diagram Reference: 10
Get Part
6E043111024D
Bracket, clamp 1
Diagram Reference: 11
Get Part
6E043112014D
Bracket, clamp 2
Diagram Reference: 12
Get Part
6204311400
Pad, transom clamp
Diagram Reference: 13
Get Part
6E04311601
Screw, transom clamp
Diagram Reference: 14
Get Part
6E04311801
Handle, transom clamp
Diagram Reference: 15
Get Part
9024304M01
Pin(6a1)
Diagram Reference: 16
Get Part
9010108M07
Bolt(6e0)
Diagram Reference: 17
Get Part
9020108M03
Washer, plate(6e0)
Diagram Reference: 18
Get Part
6A14311301
Plate, clamp bracket
Diagram Reference: 19
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 20
Get Part
9038706M11
Collar
Diagram Reference: 21
Get Part
9010106335
Bolt, hexagon (624)
Diagram Reference: 22
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 23
Get Part
9538006600
Nut(661)
Diagram Reference: 24
Get Part
6E043311044D
Bracket, swivel 1
Diagram Reference: 25
Get Part
6E043312024D
Bracket, swivel 2
Diagram Reference: 26
Get Part
9589506035
Bolt, flange(4nx)
Diagram Reference: 28
Get Part
6E04318100
Lever, tilt stop 1
Diagram Reference: 29
Get Part
6E04363200
Knob, tilt
Diagram Reference: 30
Get Part
6E0433130094
Bracket, swivel 3
Diagram Reference: 31
Get Part
6204318900
Bushing
Diagram Reference: 32
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 33
Get Part
9050816020
Spring 6474319800
Diagram Reference: 34
Get Part
9050816021
Spring 6474318800
Diagram Reference: 35
Get Part
6E04316001
Tilt rod assembly
Diagram Reference: 36
Get Part
6894316500
Plate, tilt lock
Diagram Reference: 37
Get Part
9169030008
Pin. spring(656)
Diagram Reference: 38
Get Part
6E043614005B
Plate, tilt lock
Diagram Reference: 39
Get Part
9050814M10
Spring, torsion (6e0)
Diagram Reference: 40
Get Part
9050814M11
Spring, torsion (6e0)
Diagram Reference: 41
Get Part
9589506010
Bolt, flange(7ht)
Diagram Reference: 42
Get Part
6E04253702
Bushing, pivot shaft
Diagram Reference: 43
Get Part
6E04253802
Bushing, pivot shaft
Diagram Reference: 44
Get Part
6E04253900
Bushing, pivot shaft
Diagram Reference: 45
Get Part
6E04254900
Bushing, pivot shaft
Diagram Reference: 46
Get Part
6E04252803
Plate, friction
Diagram Reference: 47
Get Part
9538008600
Nut (661)
Diagram Reference: 48
Get Part
9050208M05
Spring, conical(6e0)
Diagram Reference: 49
Get Part
6L54252901
Screw, friction piece
Diagram Reference: 50
Get Part
6L54256100
Knob, steering lock
Diagram Reference: 51
Get Part
6L54419600
Indicator 3
Diagram Reference: 52
Get Part
6L54419700
Indicator 4
Diagram Reference: 53
Get Part
9026604M05
Rivet(6l5)
Diagram Reference: 54
Get Part
626281930194 (AP D)15MM)
Plug, water check
Diagram Reference: 55
Get Part
