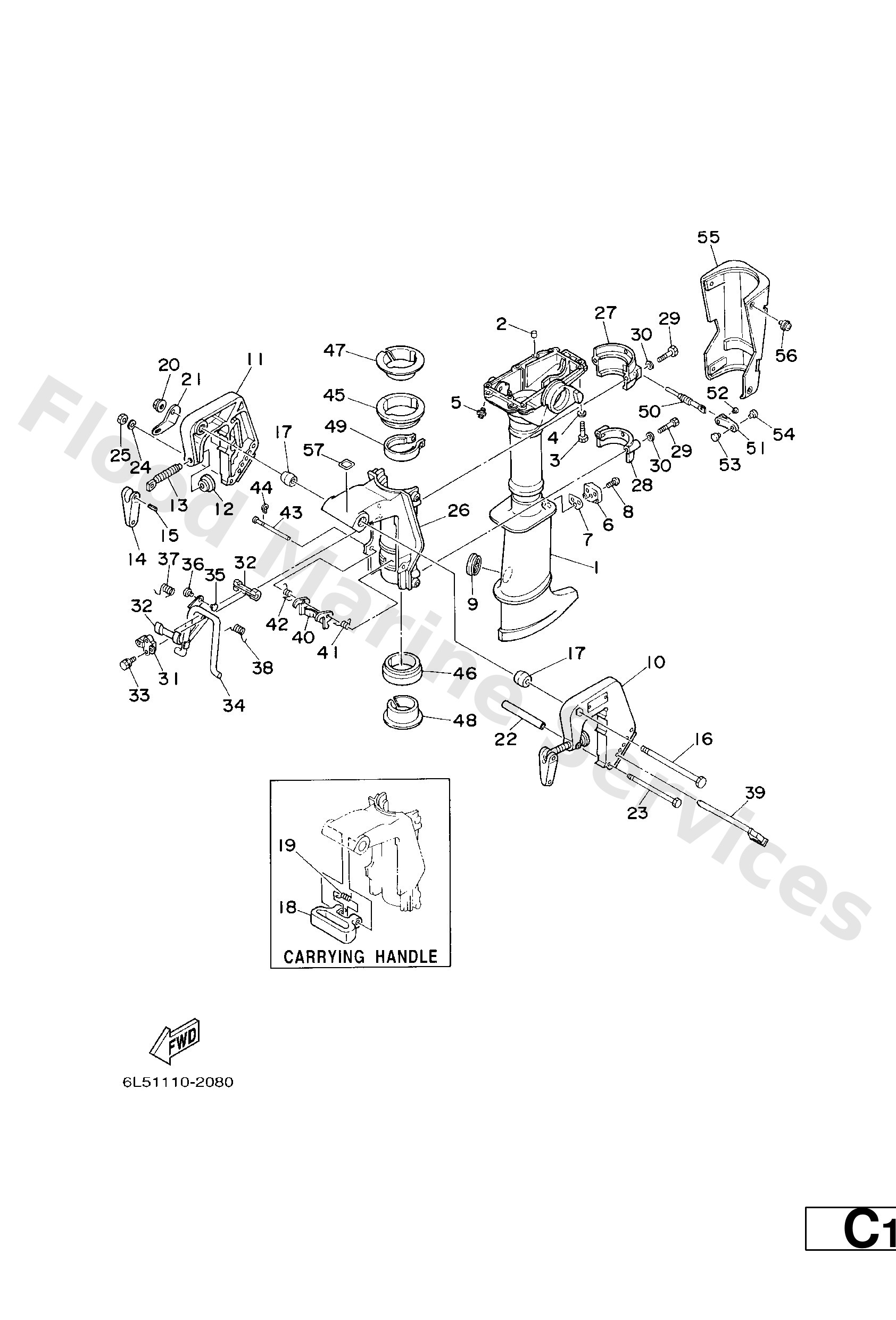

Diagram: UPPER CASING . BRACKET

Diagram

Parts List

6L5−45111−02−4D

Casing, upper

Diagram Reference: 1

93604−12M07

Pin, dowel (688)

Diagram Reference: 2

97095−06030

Bolt(jf7)

Diagram Reference: 3

92995−06600

Washer, plain (646)

Diagram Reference: 4

93700−06M03

Nipple, grease(6a1)

Diagram Reference: 5

6L5−45152−00

Cover, upper casing 2

Diagram Reference: 6

6L5−45115−A0

Gasket,upper casing 3

Diagram Reference: 7

90149−05M08

Ybs53-525 screw,flat head

Diagram Reference: 8

647−45151−01

Cover, upper casing

Diagram Reference: 9

6L5−43111−01−4D

Bracket, Clamp

Diagram Reference: 10

6L5−43112−00−4D

Bracket, Clamp

Diagram Reference: 11

620−43114−00

Pad, transom clamp

Diagram Reference: 12

6E0−43116−01

Screw, transom clamp

Diagram Reference: 13

6E0−43118−01

Handle, transom clamp

Diagram Reference: 14

90243−04M01

Pin(6a1)

Diagram Reference: 15

90101−08M10

Bolt(6l5)

Diagram Reference: 16

6G1−43136−00

Piece, friction

Diagram Reference: 17

6L5−42121−00

Bracket

Diagram Reference: 18

90508−16M30

Spring, torsion(6l5)

Diagram Reference: 19

90185−08057

Nut, nylon (6j8)

Diagram Reference: 20

6A1−43113−01

Plate, clamp bracket

Diagram Reference: 21

90387−06M11

Collar

Diagram Reference: 22

90101−06335

Bolt, hexagon (624)

Diagram Reference: 23

92990−06600

Washer, plain (646)

Diagram Reference: 24

95380−06600

Nut(661)

Diagram Reference: 25

6L5−43311−01−4D

Bracket, swivel 1

Diagram Reference: 26

6L5−44511−00−4D

Cover, upper mount

Diagram Reference: 27

6L5−44553−00−4D

Cover, lower mount

Diagram Reference: 28

97095−06035

Bolt(j52)

Diagram Reference: 29

6E0−43313−00−4D

Bracket, swivel 3

Diagram Reference: 31

620−43189−00

Bushing

Diagram Reference: 32

95895−06020

Bolt, flange(jk3)

Diagram Reference: 33

6L5−43181−00

Lever, tilt stop 1

Diagram Reference: 34

6L5−44196−20

Indicator 3

Diagram Reference: 35

6L5−44197−20

Indicator 4

Diagram Reference: 36

90508−16020

Spring 6474319800

Diagram Reference: 37

90508−16021

Spring 6474318800

Diagram Reference: 38

6L5−43160−00

Tilt rod assembly

Diagram Reference: 39

6L5−43614−00

Plate, tilt lock

Diagram Reference: 40

90508−08M26

Spring, torsion(6l5)

Diagram Reference: 41

90508−08M27

Spring, torsion(6l5)

Diagram Reference: 42

6L5−43659−00

Shaft, reverse lock

Diagram Reference: 43

99080−05600

Circlip(22k)

Diagram Reference: 44

6L5−42537−00

Bushing, pivot shaft

Diagram Reference: 45

6L5−42538−00

Bushing, pivot shaft

Diagram Reference: 46

6L5−42539−00

Bushing, pivot shaft

Diagram Reference: 47

6L5−42549−00

Bushing, pivot shaft

Diagram Reference: 48

6E0−42528−03

Plate, friction

Diagram Reference: 49

6L5−42529−01

Screw, friction piece

Diagram Reference: 50

6L5−42561−00

Knob, steering lock

Diagram Reference: 51

90266−04M05

Rivet(6l5)

Diagram Reference: 52

6L5−43318−11

Cover

Diagram Reference: 55

90159−06M10

Screw, with washer(6l5)

Diagram Reference: 56

6A1−42792−01

Mark (100)1)

Diagram Reference: 57
