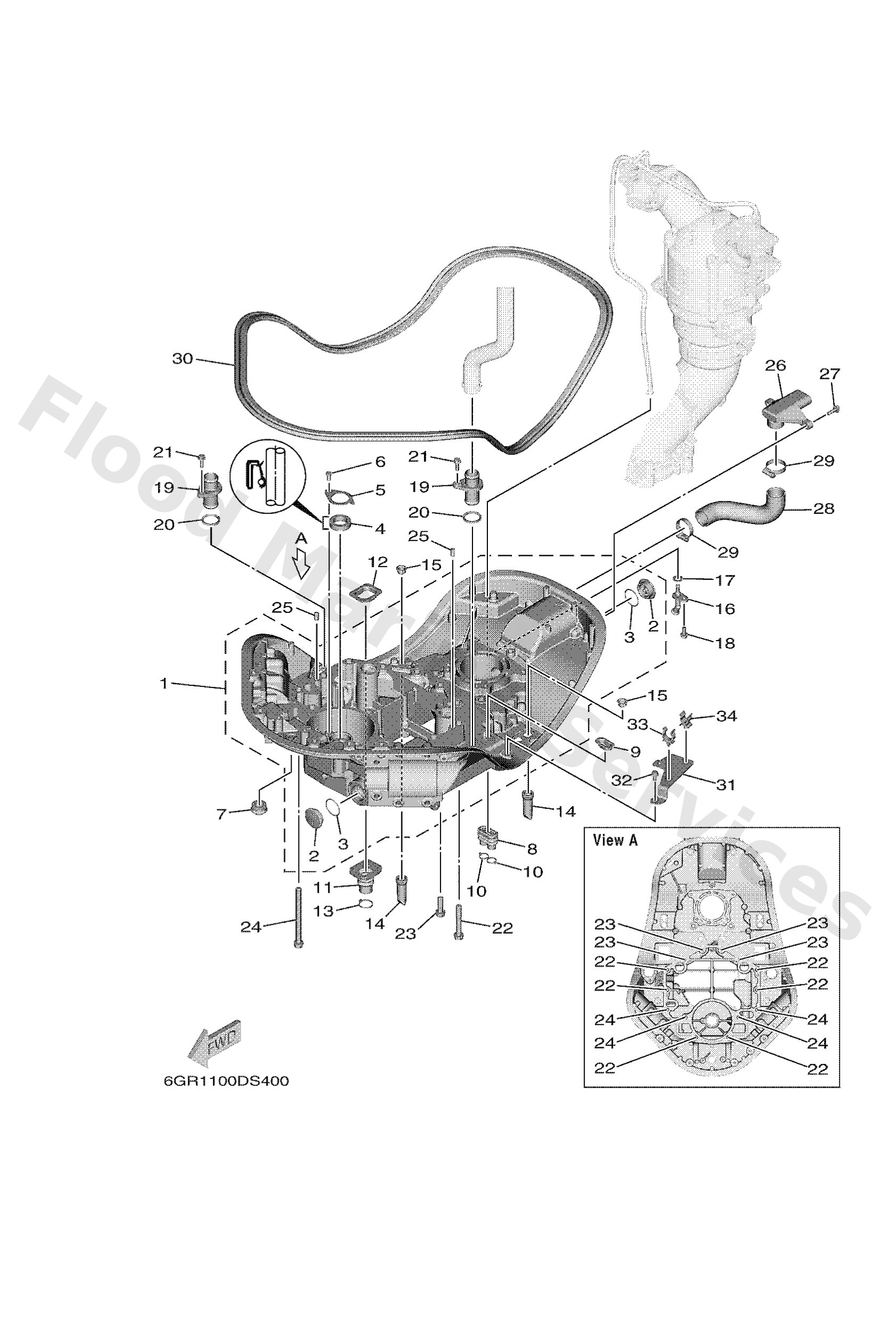

Diagram: UPPER CASING 1

Diagram

Parts List

6GR4113700
Guide, exhaust
Diagram Reference: 1
Get Part
9034032011
Plug, straight screw
Diagram Reference: 2
Get Part
9321032172
O-ring (341)
Diagram Reference: 3
Get Part
9310226004
Oil seal
Diagram Reference: 4
Get Part
6GR4129700
Washer, 1
Diagram Reference: 5
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 6
Get Part
6AW4272400
Grommet
Diagram Reference: 7
Get Part
6H14272621
Grommet
Diagram Reference: 8
Get Part
6BG4238400
Seal, cap
Diagram Reference: 9
Get Part
9046511M10
Clamp
Diagram Reference: 10
Get Part
6GR4272400
Grommet
Diagram Reference: 11
Get Part
6GR4238400
Seal, cap
Diagram Reference: 12
Get Part
9046511M59
Clamp(63m)
Diagram Reference: 13
Get Part
6DA4271700
Rubber, seal 2
Diagram Reference: 14
Get Part
6DA4238400
Seal, cap
Diagram Reference: 15
Get Part
6GR4439100
Nipple, hose
Diagram Reference: 16
Get Part
60V4274710
Pad
Diagram Reference: 17
Get Part
9589506016
Bolt, flange deep recess
Diagram Reference: 18
Get Part
6GR1258400
Joint, hose 3
Diagram Reference: 19
Get Part
6GR4436600
Damper, water seal 2
Diagram Reference: 20
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 21
Get Part
9757510570
Bolt, hexagon w/w deep recess
Diagram Reference: 22
Get Part
9011910040
Bolt, with washer
Diagram Reference: 23
Get Part
9011910M08
Bolt, with washer
Diagram Reference: 24
Get Part
9360816M16
Pin, dowel(6t4)
Diagram Reference: 25
Get Part
6GR1475300
Silencer, exhaust
Diagram Reference: 26
Get Part
6GR4513500
Pipe
Diagram Reference: 28
Get Part
9045035003
Hose clamp assembly
Diagram Reference: 29
Get Part
6GR4271600
Rubber seal 1
Diagram Reference: 30
Get Part
6GR8239800
Plate 3
Diagram Reference: 31
Get Part
9589506012
Bolt, flange deep recess
Diagram Reference: 32
Get Part
9046419M45
Clamp(65j)
Diagram Reference: 33
Get Part
9046412015
Clamp
Diagram Reference: 34
Get Part
