15FWH (1996)
Upper Casing

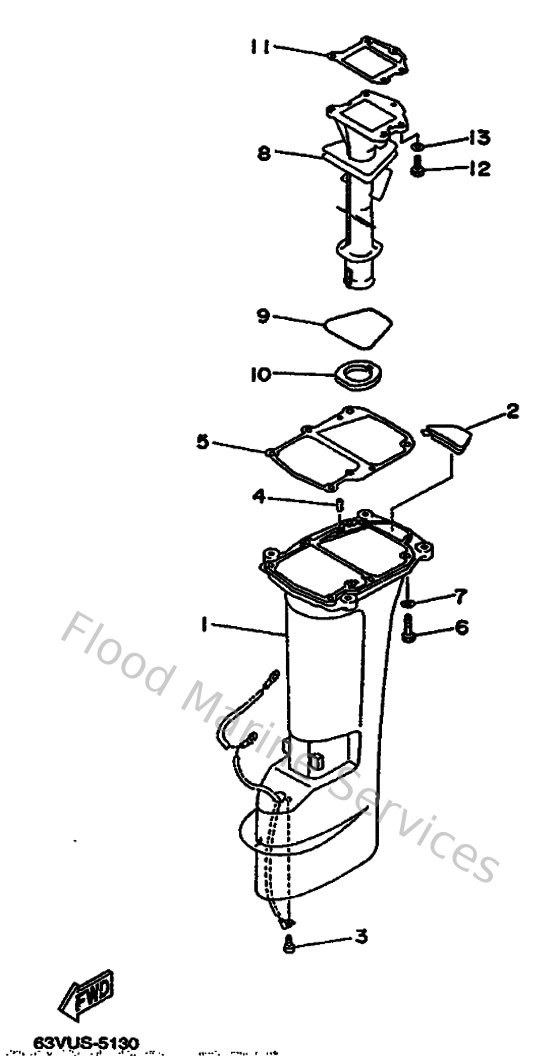

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
63V45111024D
Casing, Upper
Loading…
↗
2
63V451260000
Plate, seal damper
Loading…
↗
3
9015706M0600
Screw, pan head(6m7)
Loading…
↗
4
936061201900
Pin, dowel (614)
Loading…
↗
5
63V45113A100
Gasket, upper casing
Loading…
↗
6
970950803000
Bolt, hexagon (fj1)
Loading…
↗
7
929900860000
Washer, plain (663)
Loading…
↗
8
63V41131005B
Manifold, ext. 1
Loading…
↗
9
9321071MH600
O-ring(63v)
Loading…
↗
10
63V411350000
Gasket, exhaust manifold
Loading…
↗
11
63V41133A100
Gasket, exhaust manifold 1
Loading…
↗
12
970950602000
Bolt(7u8)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
