20CMH (1990)
Upper Casing

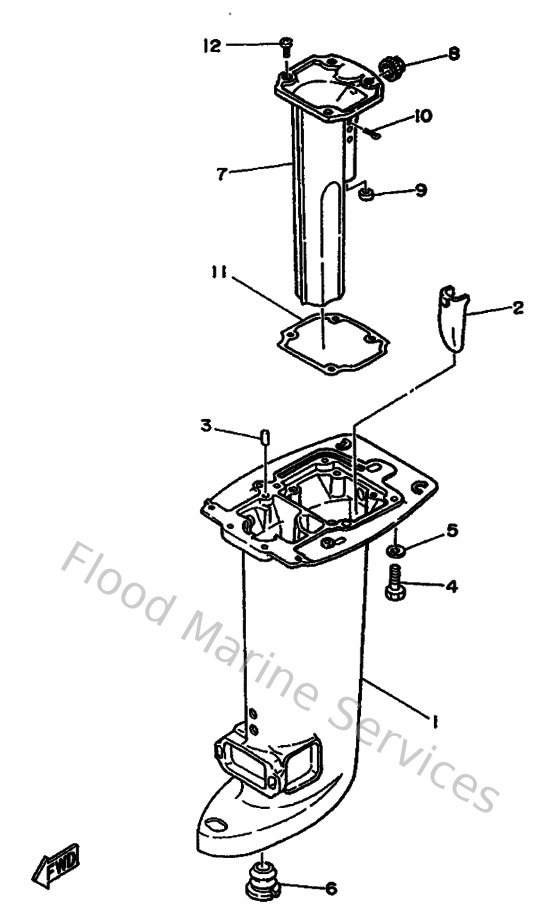

Diagram: Upper Casing
Parts List
Reference
Description
Price
3
936061201900
Pin, dowel (614)
Loading…
↗
4
973950803000
Bolt, hexagon (fj1)
Loading…
↗
5
929900860000
Washer, plain (663)
Loading…
↗
6
689451270000
Seal
Loading…
↗
7
664411310194
Manifold, ext. 1
Loading…
↗
8
664411330000
Gasket, exhaust manifold 1
Loading…
↗
9
664411350000
Gasket, exhaust manifold
Loading…
↗
10
914903003000
Pin, cotter
Loading…
↗
11
664411340000
Gasket, exhaust manifold
Loading…
↗
12
925800601600
Screw pan head
Loading…
↗
