2BMH (1997)
Upper Casing

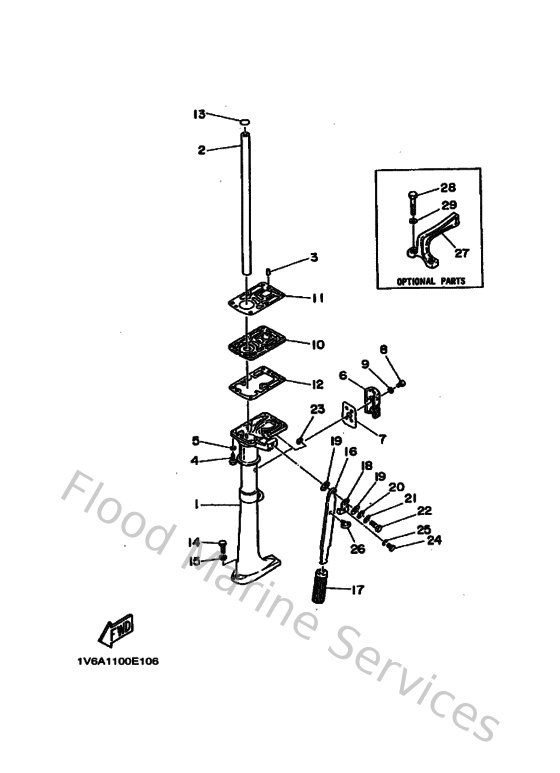

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6A145111024D
Casing, upper
Loading…
↗
2
6A1451130000
Pipe
Loading…
↗
3
936051506500
Pin, dowel
Loading…
↗
4
970950602500
Bolt
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
6A1451510000
Cover, upper casing
Loading…
↗
7
6A1451150000
Gasket, upper casing
Loading…
↗
8
985800601600
Screw pan head
Loading…
↗
10
6A141137005B
Guide,exhaust
Loading…
↗
11
6A114613A000
Gasket,exhaust 1
Loading…
↗
12
64614623A100
Gasket, exhaust
Loading…
↗
13
932101912300
O-ring (646)
Loading…
↗
14
970950603000
Bolt(jf7)
Loading…
↗
16
6A142111004D
Handle, steering
Loading…
↗
17
646421190200
Grip, steering handle
Loading…
↗
18
6A1421810000
Washer
Loading…
↗
19
902010911700
Washer 1 6154367300
Loading…
↗
20
929900820000
Ybs66-8 washer, plain
Loading…
↗
21
929900810000
Ybs67-8 washer, spring
Loading…
↗
22
9010108M1100
Bolt(6a1)
Loading…
↗
23
988800810000
Nut, hex.
Loading…
↗
24
970950601000
Bolt
Loading…
↗
25
929950610000
Washer(6a1)
Loading…
↗
26
646425910000
Holder, shear pin
Loading…
↗
28
973950605500
Bolt, hexagon w/w deep recess
Loading…
↗
