40HM (1992)
Upper Casing

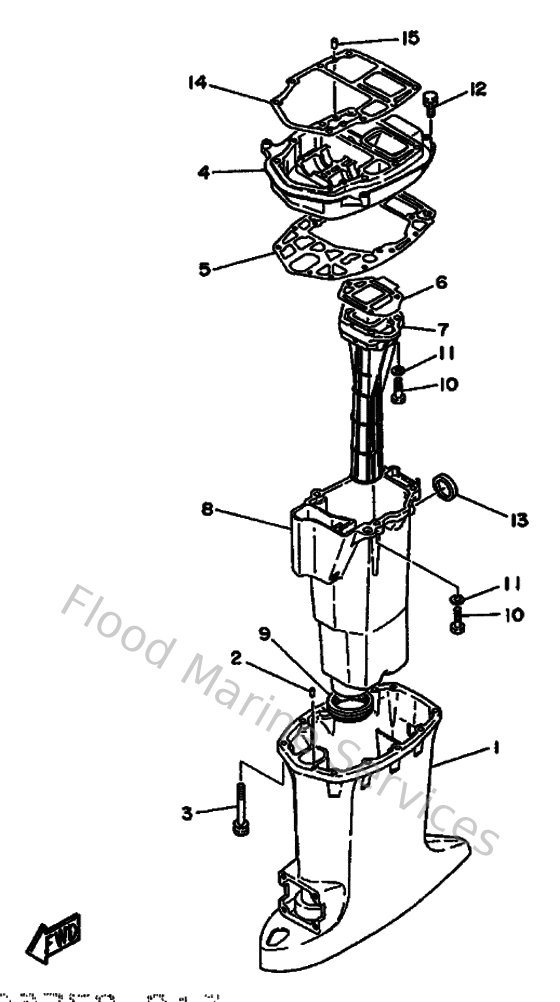

Diagram: Upper Casing
Parts List
Reference
Description
Price
3
9011908M8300
Bolt, with washer(697)
Loading…
↗
4
6H4411370094
Guide, Exhaust
Loading…
↗
5
6H445114A100
Gasket, upper casing
Loading…
↗
9
663451230000
Gasket, muffler
Loading…
↗
10
970800803000
Bolt, hexagon (fj1)
Loading…
↗
11
929900860000
Washer, plain (663)
Loading…
↗
13
6H4411330000
Gasket, exhaust manifold 1
Loading…
↗
14
6H445113A000
Gasket, upper casing
Loading…
↗
15
936061201900
Pin, dowel (614)
Loading…
↗
