9.9DMH (1993)
Upper Casing

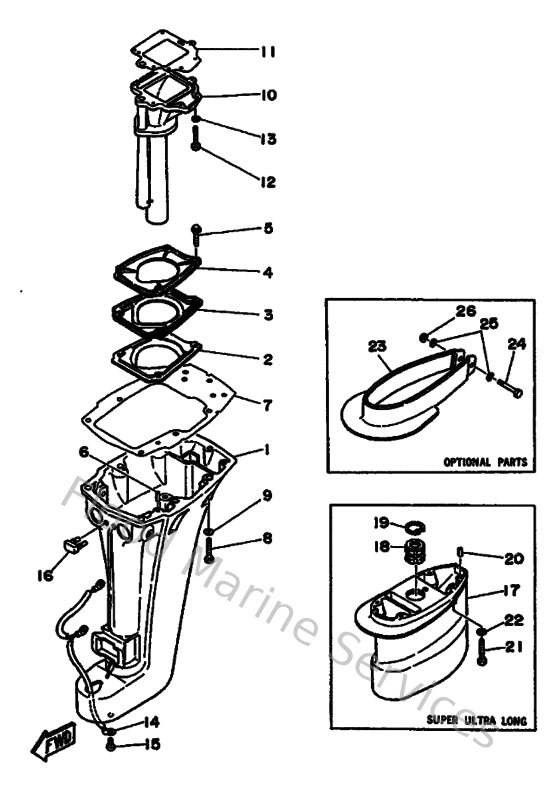

Diagram: Upper Casing
Parts List
Reference
Description
Price
2
68245126005B
Plate, Seal Damper
Loading…
↗
3
682451270000
Seal
Loading…
↗
4
68241116005B
Protector
Loading…
↗
5
9010506M0100
Bolt (6f5)
Loading…
↗
6
936061201900
Pin, dowel (614)
Loading…
↗
7
68245113A300
Gasket, upper casing
Loading…
↗
8
973950804000
Bolt, hexagon
Loading…
↗
9
929900860000
Washer, plain (663)
Loading…
↗
10
68241131015B
Manifold, exhaust
Loading…
↗
11
68241133A000
Gasket,exhaust manifold 1
Loading…
↗
12
973950602000
Bolt(7u8)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
6E7821270000
Wire, lead 2
Loading…
↗
15
9015706M0600
Screw, pan head(6m7)
Loading…
↗
16
682445320000
Stopper, upper mount
Loading…
↗
18
682453180000
Bushing, drive shaft
Loading…
↗
19
934203004200
Circlip (650)
Loading…
↗
21
970950803500
Bolt(70w)
Loading…
↗
24
973950604000
Bolt (682)
Loading…
↗
26
953800670000
Nut
Loading…
↗
