E40XMH (1998)
Upper Casing

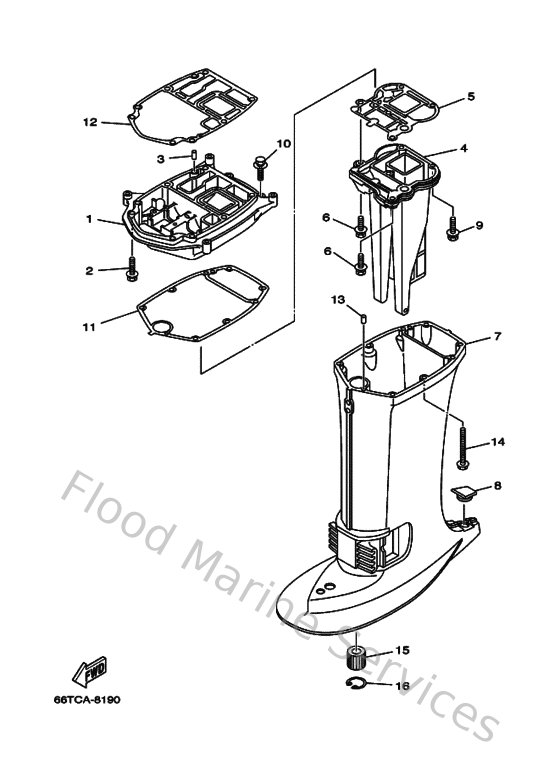

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
66T41137005B
Guide, exhaust
Loading…
↗
2
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
66T41131005B
Manifold, ext. 1
Loading…
↗
5
66T41133A000
Gasket, exhaust manifold 1
Loading…
↗
6
975750853000
Bolt, hexagon w/w deep recess
Loading…
↗
7
66T45111004D
Casing, upper
Loading…
↗
8
63D451550000
Cap
Loading…
↗
9
975750854500
Bolt, hexagon w/w deep recess
Loading…
↗
11
66T45114A000
Gasket, upper casing
Loading…
↗
12
66T45113A000
Gasket, upper casing
Loading…
↗
14
9011908M4200
Bolt, with washer
Loading…
↗
15
66T453180000
Bushing, drive shaft 3
Loading…
↗
16
934203004200
Circlip (650)
Loading…
↗
