E60HM (2001)
Upper Casing

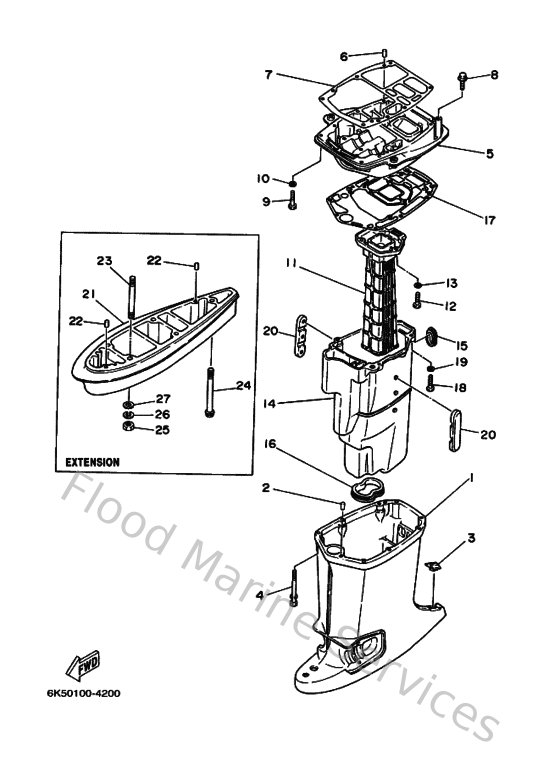

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6H345111114D
Casing, upper
Loading…
↗
2
936061201900
Pin, dowel (614)
Loading…
↗
3
6H3451550000
Cap
Loading…
↗
4
975750868500
Bolt, with washer
Loading…
↗
5
6H3411370194
Guide, exhaust
Loading…
↗
7
6H345113A000
Gasket, upper casing
Loading…
↗
8
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
9
970750803500
Bolt(70w)
Loading…
↗
10
929900810000
Ybs67-8 washer, spring
Loading…
↗
11
6H241131005B
Manifold, ext. 1
Loading…
↗
12
970800803000
Bolt, hexagon (fj1)
Loading…
↗
13
929950810000
Ybs67-8 washer, spring
Loading…
↗
14
6H314711105B
Muffler 1
Loading…
↗
15
6H3451270000
Seal 1
Loading…
↗
16
6H3451230000
Gasket, muffler
Loading…
↗
17
6H345114A100
Gasket, upper casing
Loading…
↗
18
970750803000
Bolt, hexagon (fj1)
Loading…
↗
20
6H3147371000
Damper, muffler
Loading…
↗
21
69645211014D
Extension
Loading…
↗
23
9011610M3100
Bolt, stud(6a3)
Loading…
↗
24
901190815500
Bolt, with washer
Loading…
↗
25
953801060000
Nut(624)
Loading…
↗
26
929901010000
Ybs67-10 washer, spring
Loading…
↗
27
929901060000
Washer, plate
Loading…
↗
