E8DMH (1997)
Upper Casing

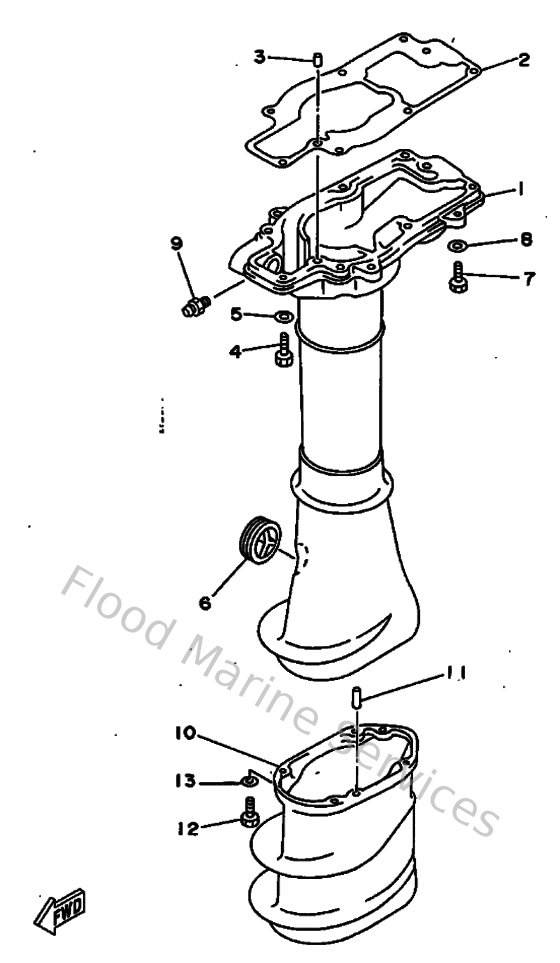

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
67745111014D
Casing, upper
Loading…
↗
2
67745113A000
Gasket, upper casing
Loading…
↗
3
936050804100
Pin, Dowel
Loading…
↗
4
970950602500
Bolt
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
647451510100
Cover, upper casing
Loading…
↗
7
970800602000
Bolt(7u8)
Loading…
↗
9
9370006M0300
Nipple, grease(6a1)
Loading…
↗
10
64745211104D
Extension
Loading…
↗
11
936040806200
Pin,dowel (626)
Loading…
↗
12
970950602000
Bolt(7u8)
Loading…
↗
