F50AE (1998)
Upper Casing

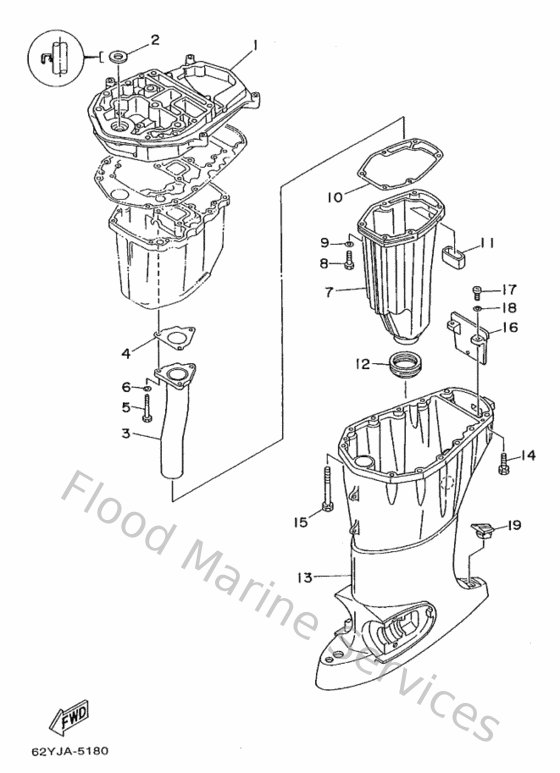

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
62Y411370194
Guide, exhaust
Loading…
↗
2
9310416M0100
Oil seal(6a8)
Loading…
↗
3
62Y411310100
Manifold, ext. 1
Loading…
↗
4
62Y411330000
Gasket, exhaust manifold 1
Loading…
↗
5
970950604500
Bolt, hexagon
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
62Y14711005B
Muffler 1
Loading…
↗
8
970950602500
Bolt
Loading…
↗
10
62Y411340000
Gasket, exhaust manifold
Loading…
↗
11
62Y451270000
Seal
Loading…
↗
12
663451230000
Gasket, muffler
Loading…
↗
13
62Y45111024D
Casing, Upper
Loading…
↗
14
970800803000
Bolt, hexagon (fj1)
Loading…
↗
15
9011908M8200
Bolt, with washer(697)
Loading…
↗
16
62Y451510000
Cover, upper casing
Loading…
↗
17
985800501600
Screw, pan head(6b0)
Loading…
↗
18
929900560000
Washer, plain (646)
Loading…
↗
19
6H3451550000
Cap
Loading…
↗
