Yamaha Outboard Parts - Upper Casing - FT25BE (2001) | Flood Marine

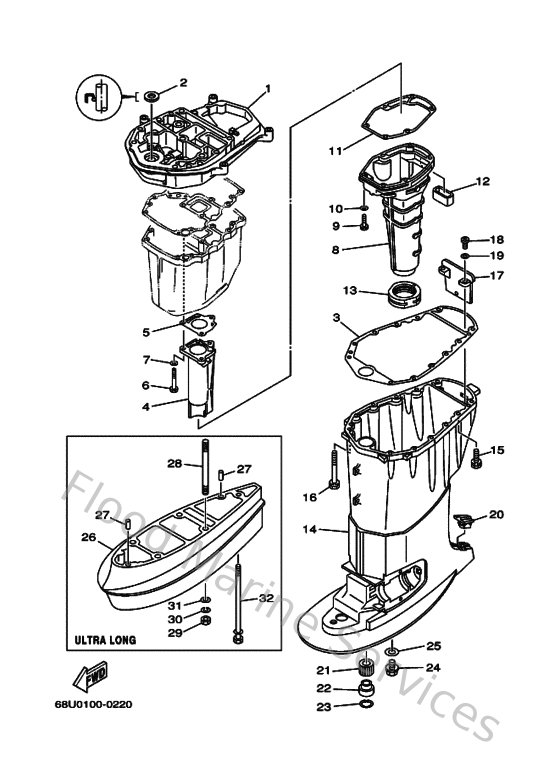

Diagram: Upper Casing

Diagram

Parts List

Reference
Description
Price


1
68U411370094
Guide, exhaust
Loading…

↗
2
9310416M0100
Oil seal(6a8)
Loading…

↗
3
67C451130000
Gasket, upper casing
Loading…

↗
4
68U4113100CA
Manifold, ext. 1
Loading…

↗
5
67C411330000
Gasket, exhaust manifold 1
Loading…

↗
6
970750605000
Bolt(jf7)
Loading…

↗
7
929950660000
Washer, plain (646)
Loading…

↗
8
67C1471112CA
Muffler 1
Loading…

↗
9
970750602500
Bolt
Loading…

↗
11
6BG411340000
Gasket, exhaust manifold
Loading…

↗
12
62Y451270000
Seal
Loading…

↗
13
67C451230000
Gasket, muffler
Loading…

↗
15
970800803000
Bolt, hexagon (fj1)
Loading…

↗
16
9011908M8000
Bolt, with washer(688)
Loading…

↗
17
67C451510000
Cover, upper casing
Loading…

↗
18
978800501600
Screw, pan head(6b0)
Loading…

↗
19
929900560000
Washer, plain (646)
Loading…

↗
20
6C5451550000
Cap
Loading…

↗
21
66T453180000
Bushing, drive shaft 3
Loading…

↗
22
903872300100
Collar
Loading…

↗
23
934203508500
Circlip
Loading…

↗
24
9034014M0600
Plug, straight screw(62y)
Loading…

↗
25
9043014M0900
Gasket
Loading…

↗
26
63D45211024D
Extension
Loading…

↗
27
936061201900
Pin, dowel (614)
Loading…

↗
28
901161003900
Bolt, stud
Loading…

↗
29
953801060000
Nut(624)
Loading…

↗
30
929901010000
Ybs67-10 washer, spring
Loading…

↗
31
929901060000
Washer, plate
Loading…

↗
32
9011908M0000
Bolt, with washer(62x)
Loading…

↗
