5CMH (1985)
Upper Casing & Bracket

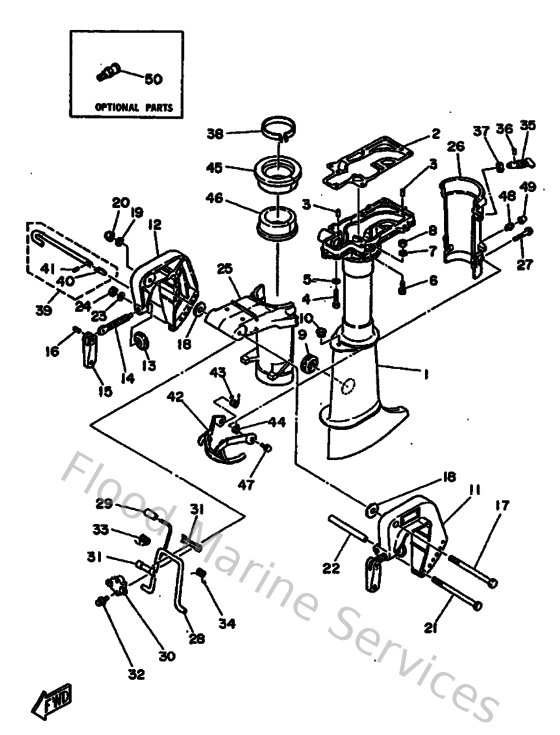

Diagram: Upper Casing & Bracket
Parts List
Reference
Description
Price
2
6E0451130000
Gasket,upper casing
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
973950603000
Bolt(jf7)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
973950601600
Bolt, hexagon deep recess
Loading…
↗
8
9538R0670000
Nut
Loading…
↗
9
647451510100
Cover, upper casing
Loading…
↗
10
9048010M1300
Grommet (6e0)
Loading…
↗
13
648431140100
Pad, transom clamp
Loading…
↗
14
6E0431160000
Screw, transom clamp
Loading…
↗
15
6EEG31180000
Handle, transom cl
Loading…
↗
16
9025404M0000
Pin(6a1)
Loading…
↗
18
9020108M4700
Washer, plate(6e0)
Loading…
↗
19
929900860000
Washer, plain (663)
Loading…
↗
20
957800830000
Nut, nylon (6j8)
Loading…
↗
21
901010633500
Bolt, hexagon (624)
Loading…
↗
22
905600608800
Collar
Loading…
↗
24
953800660000
Nut(661)
Loading…
↗
27
958800603500
Bolt, flange(4nx)
Loading…
↗
28
6E0431810000
Lever, tilt stop 1
Loading…
↗
29
6E0436320000
Knob, tilt
Loading…
↗
30
6E04331300EJ
Bracket, swivel 3
Loading…
↗
31
620431890000
Bushing
Loading…
↗
32
958950602000
Bolt, flange(jk3)
Loading…
↗
33
905081602000
Spring 6474319800
Loading…
↗
34
905081602100
Spring 6474318800
Loading…
↗
36
916902001000
Pin, spring
Loading…
↗
37
953800860000
Nut (661)
Loading…
↗
38
6E0425280200
Plate, friction
Loading…
↗
39
6E0431600100
Tilt rod assembly
Loading…
↗
40
656431650100
Plate, tilt lock
Loading…
↗
41
916903000800
Pin. spring(656)
Loading…
↗
42
6E04361400CA
Plate, tilt lock
Loading…
↗
43
9050814M1000
Spring, torsion (6e0)
Loading…
↗
44
9050814M1100
Spring, torsion (6e0)
Loading…
↗
46
999990333100
Bushing, Pivot Shaft
Loading…
↗
47
958950601000
Bolt, flange(7ht)
Loading…
↗
48
937000600400
Nipple, grease(6a1)
Loading…
↗
49
663451190000
Cap, grease nipple
Loading…
↗
50
6E0281930094
Plug, water check
Loading…
↗
