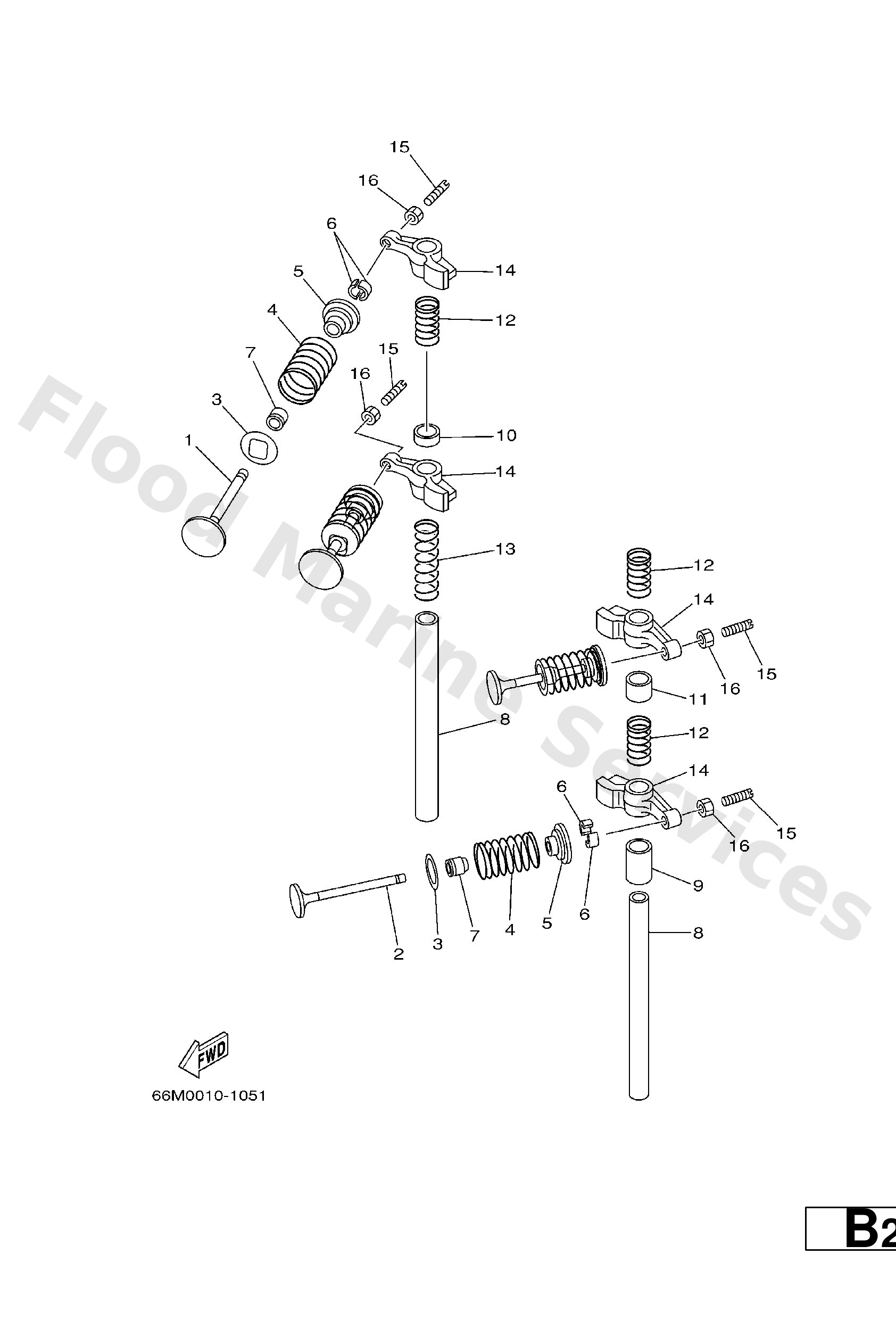

Diagram: VALVE

Diagram

Parts List

66M−12111−00
Valve, intake
Diagram Reference: 1
Get Part
66M−12121−00
Valve, exhaust
Diagram Reference: 2
Get Part
66M−12116−00
Seat, valve spring
Diagram Reference: 3
Get Part
66M−12113−00
Spring, valve inner
Diagram Reference: 4
Get Part
30X−12117−00
Retainer, valve spring
Diagram Reference: 5
Get Part
30X−12118−00
Cotter, valve
Diagram Reference: 6
Get Part
51Y−12119−00
Seal, valve stem
Diagram Reference: 7
Get Part
66M−12146−00
Shaft, rocker
Diagram Reference: 8
Get Part
90387−13M56
Collar (6g8)
Diagram Reference: 9
Get Part
90387−13001
Collar
Diagram Reference: 10
Get Part
90387−13002
Collar
Diagram Reference: 11
Get Part
90501−12M40
Spring, compression (6g8)
Diagram Reference: 12
Get Part
90501−12M41
Spring, Compression
Diagram Reference: 13
Get Part
66M−12151−10
Arm, Valve Rocker
Diagram Reference: 14
Get Part
62Y−12159−00
Screw, Valve Adjusting
Diagram Reference: 15
Get Part
62Y−12158−00
Nut, lock
Diagram Reference: 16
Get Part
