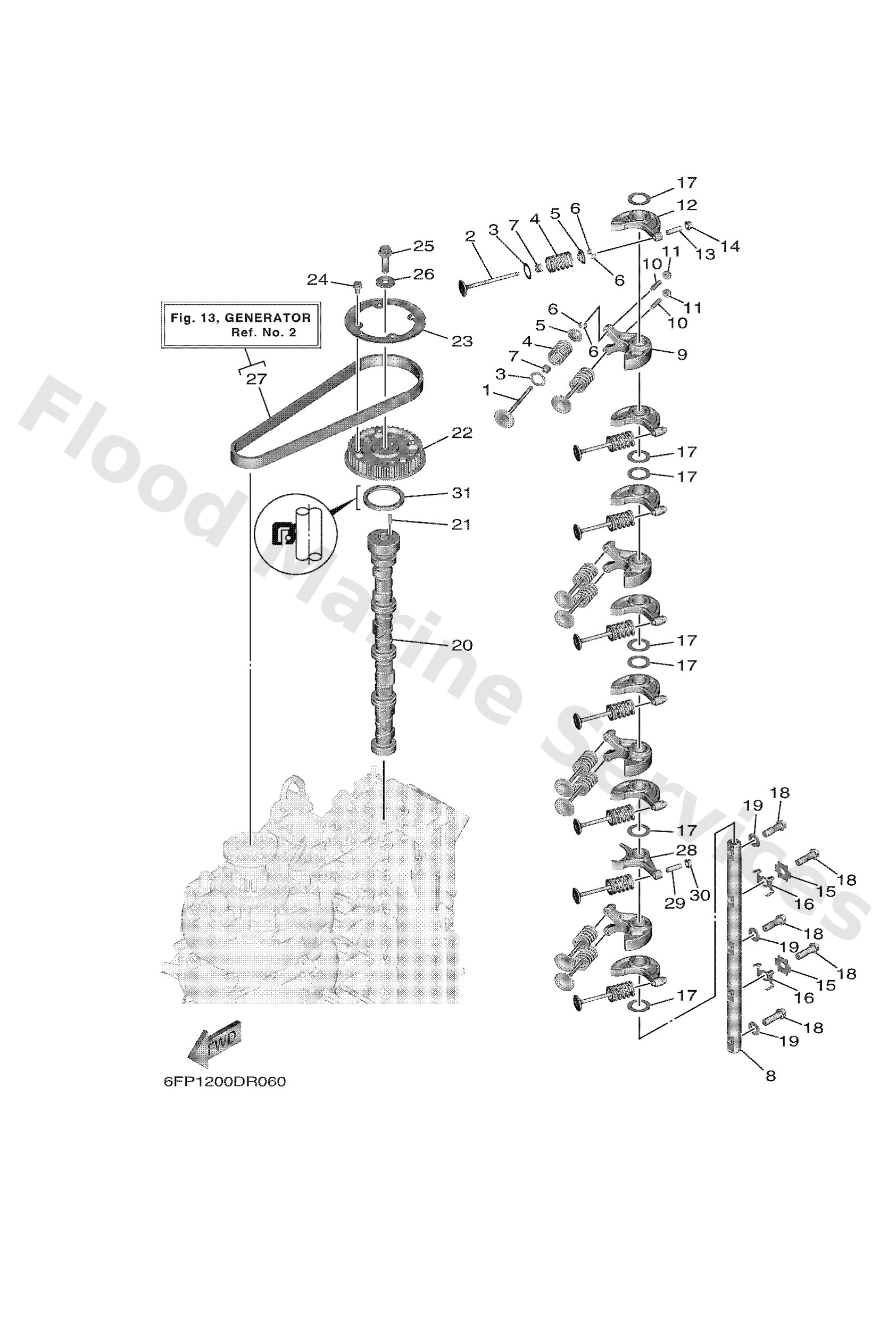

Diagram: VALVE

Diagram

Parts List

6FP1211100
Valve, intake
Diagram Reference: 1
Get Part
6FP1212100
Valve, exhaust
Diagram Reference: 2
Get Part
62Y1211600
Seat, valve spring
Diagram Reference: 3
Get Part
6FP1211300
Spring, valve inner
Diagram Reference: 4
Get Part
30X1211700
Retainer, valve spring
Diagram Reference: 5
Get Part
30X1211800
Cotter, valve
Diagram Reference: 6
Get Part
51Y1211900
Seal, valve stem
Diagram Reference: 7
Get Part
6FP1214600
Shaft, rocker
Diagram Reference: 8
Get Part
6FP1215100
Arm, valve rocker
Diagram Reference: 9
Get Part
6C51215900
Screw, valve adjusting
Diagram Reference: 10
Get Part
6C51215800
Nut, lock
Diagram Reference: 11
Get Part
6FP1216100
Arm, valve rocker 2
Diagram Reference: 12
Get Part
6C51215910
Screw, valve adjusting
Diagram Reference: 13
Get Part
6C51215810
Nut, lock
Diagram Reference: 14
Get Part
6FP1223100
Guide, stopper 1
Diagram Reference: 15
Get Part
6FP1223300
Plate, guide stopper 1
Diagram Reference: 16
Get Part
9020121016
Washer, plate
Diagram Reference: 17
Get Part
9040110050
Bolt, union
Diagram Reference: 18
Get Part
9299010200
958-69527-00 washer, plain
Diagram Reference: 19
Get Part
6FP1217100
Camshaft 1
Diagram Reference: 20
Get Part
9360514143
Pin (2h7)
Diagram Reference: 21
Get Part
6FP1153700
Gear, driven
Diagram Reference: 22
Get Part
6DA1155700
Washer 1
Diagram Reference: 23
Get Part
9589506012
Bolt, flange deep recess
Diagram Reference: 24
Get Part
9581710035
Bolt, washer based (2h9)
Diagram Reference: 25
Get Part
9020110144
Washer plate 810176580000
Diagram Reference: 26
Get Part
6FPW462400
Belt (with rotor bolts)
Diagram Reference: 27
Get Part
6FP1216200
Arm, valve rocker 3
Diagram Reference: 28
Get Part
9310248017
Oil seal
Diagram Reference: 31
