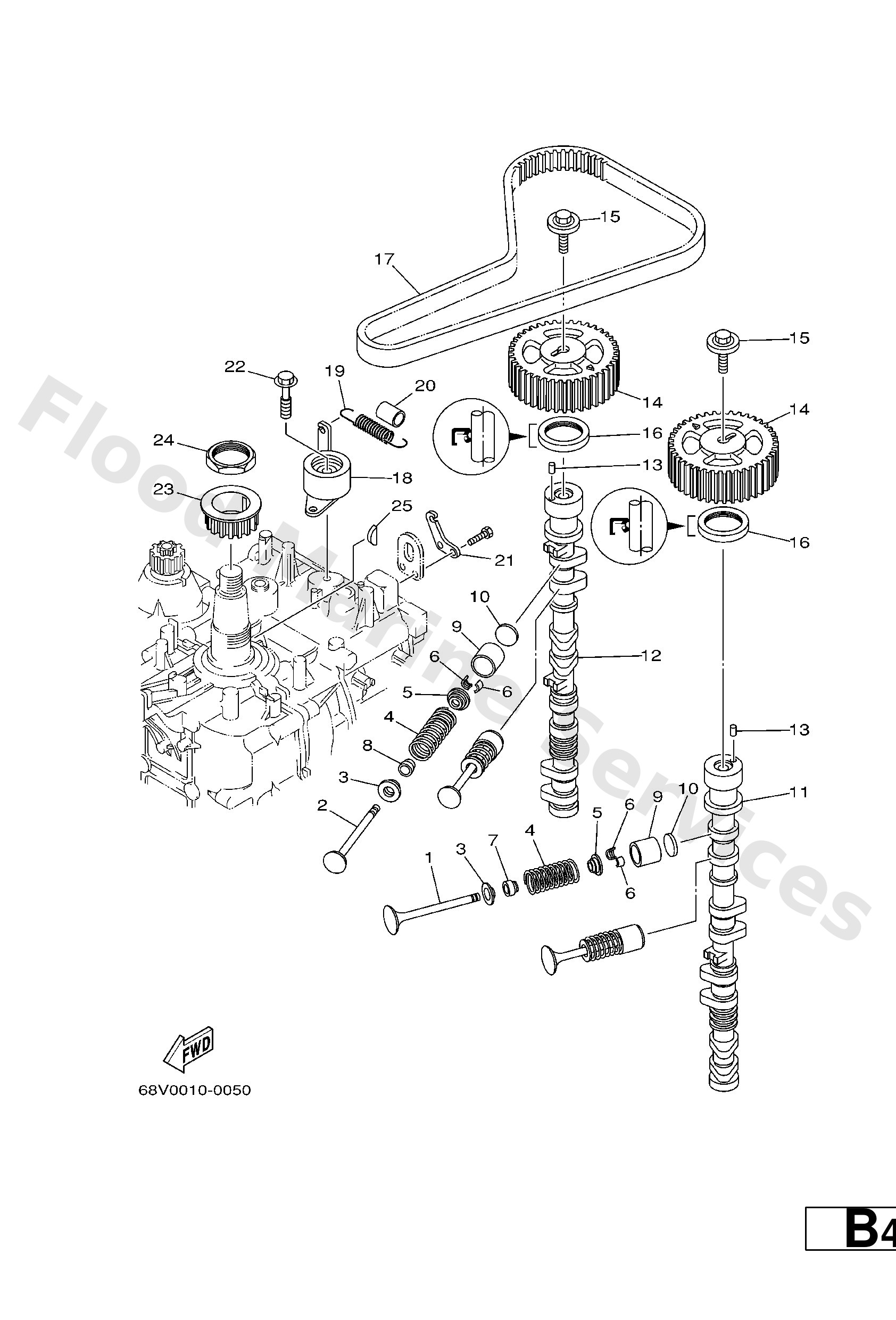

Diagram: VALVE

Diagram

Parts List

68V−12111−00
Valve, intake
Diagram Reference: 1
Get Part
68V−12121−00
Valve, exhaust
Diagram Reference: 2
Get Part
67F−12116−00
Seat, valve spring
Diagram Reference: 3
Get Part
67F−12114−00
Spring, valve outer
Diagram Reference: 4
Get Part
67F−12117−00
Retainer, valve spring
Diagram Reference: 5
Get Part
67F−12118−00
Cotter, valve
Diagram Reference: 6
Get Part
K0A−A3721−00
Seal, valve stem
Diagram Reference: 7
Get Part
K0A−A3722−00
Seal, valve stem 2
Diagram Reference: 8
Get Part
67F−12153−00
Lifter, valve
Diagram Reference: 9
Get Part
67F−12168−C0 (UR)
Pad, adjusting (2.275)
Diagram Reference: 10
Get Part
67F−12168−J0 (UR)
Pad, adjusting (2.425)
Diagram Reference: 10
Get Part
67F−12168−H0 (UR)
Pad, adjusting (2.400)
Diagram Reference: 10
Get Part
67F−12168−G0 (UR)
Pad, adjusting (2.375)
Diagram Reference: 10
Get Part
67F−12168−F0 (UR)
Pad, adjusting (2.350)
Diagram Reference: 10
Get Part
67F−12168−E0 (UR)
Pad, adjusting (2.325)
Diagram Reference: 10
Get Part
67F−12168−D0 (UR)
Pad, adjusting (2.300)
Diagram Reference: 10
Get Part
67F−12168−B0 (UR)
Pad, adjusting (2.250)
Diagram Reference: 10
Get Part
67F−12168−A0 (UR)
Pad, adjusting (2.225)
Diagram Reference: 10
Get Part
67F−12168−70 (UR)
Pad, adjusting (2.175)
Diagram Reference: 10
Get Part
67F−12168−80 (UR)
Pad, adjusting (2.200)
Diagram Reference: 10
Get Part
67F−12168−60 (UR)
Pad, adjusting (2.150)
Diagram Reference: 10
Get Part
67F−12168−50 (UR)
Pad, adjusting (2.125)
Diagram Reference: 10
Get Part
67F−12168−40 (UR)
Pad, adjusting (2.100)
Diagram Reference: 10
Get Part
67F−12168−30 (UR)
Pad, adjusting (2.075)
Diagram Reference: 10
Get Part
67F−12168−20 (UR)
Pad, adjusting (2.050)
Diagram Reference: 10
Get Part
67F−12168−10 (UR)
Pad, adjusting (2.025)
Diagram Reference: 10
Get Part
67F−12168−00 (UR)
Pad, adjusting (2.000)
Diagram Reference: 10
Get Part
67F−12169−10 (UR)
Pad, adjusting (2.800)
Diagram Reference: 10
Get Part
67F−12169−20 (UR)
Pad, adjusting (2.825)
Diagram Reference: 10
Get Part
67F−12169−30 (UR)
Pad, adjusting (2.850)
Diagram Reference: 10
Get Part
67F−12169−40 (UR)
Pad, adjusting (2.875)
Diagram Reference: 10
Get Part
67F−12169−50 (UR)
Pad, adjusting (2.900)
Diagram Reference: 10
Get Part
67F−12169−60 (UR)
Pad, adjusting (2.925)
Diagram Reference: 10
Get Part
67F−12169−70 (UR)
Pad, adjusting (2.950)
Diagram Reference: 10
Get Part
67F−12169−80 (UR)
Pad, adjusting (2.975)
Diagram Reference: 10
Get Part
67F−12169−A0 (UR)
Pad, adjusting (3.000)
Diagram Reference: 10
Get Part
67F−12169−B0 (UR)
Pad, adjusting (3.025)
Diagram Reference: 10
Get Part
67F−12169−C0 (UR)
Pad, adjusting (3.050)
Diagram Reference: 10
Get Part
67F−12169−D0 (UR)
Pad, adjusting (3.075)
Diagram Reference: 10
Get Part
67F−12169−E0 (UR)
Pad, adjusting (3.100)
Diagram Reference: 10
Get Part
67F−12168−X0 (UR)
Pad, adjusting (2.725)
Diagram Reference: 10
Get Part
67F−12168−Y0 (UR)
Pad, adjusting (2.750)
Diagram Reference: 10
Get Part
67F−12169−00 (UR)
Pad, adjusting (2.775)
Diagram Reference: 10
Get Part
67F−12168−K0 (UR)
Pad, adjusting (2.450)
Diagram Reference: 10
Get Part
67F−12168−L0 (UR)
Pad, adjusting (2.475)
Diagram Reference: 10
Get Part
67F−12168−M0 (UR)
Pad, adjusting (2.500)
Diagram Reference: 10
Get Part
67F−12168−N0 (UR)
Pad, adjusting (2.525)
Diagram Reference: 10
Get Part
67F−12168−P0 (UR)
Pad, adjusting (2.550)
Diagram Reference: 10
Get Part
67F−12168−R0 (UR)
Pad, adjusting (2.575)
Diagram Reference: 10
Get Part
67F−12168−S0 (UR)
Pad, adjusting (2.600)
Diagram Reference: 10
Get Part
67F−12168−T0 (UR)
Pad, adjusting (2.625)
Diagram Reference: 10
Get Part
67F−12168−U0 (UR)
Pad, adjusting (2.650)
Diagram Reference: 10
Get Part
67F−12168−V0 (UR)
Pad, adjusting (2.675)
Diagram Reference: 10
Get Part
67F−12168−W0 (UR)
Pad, adjusting (2.700)
Diagram Reference: 10
Get Part
67F−12169−N0 (UR)
Pad, adjusting (3.300)
Diagram Reference: 10
Get Part
67F−12169−M0 (UR)
Pad, adjusting (3.275)
Diagram Reference: 10
Get Part
67F−12169−L0 (UR)
Pad, adjusting (3.250)
Diagram Reference: 10
Get Part
67F−12169−K0 (UR)
Pad, adjusting (3.225)
Diagram Reference: 10
Get Part
67F−12169−H0 (UR)
Pad, adjusting (3.175)
Diagram Reference: 10
Get Part
67F−12169−G0 (UR)
Pad, adjusting (3.150)
Diagram Reference: 10
Get Part
67F−12169−F0 (UR)
Pad, adjusting (3.125)
Diagram Reference: 10
Get Part
67F−12169−J0 (UR)
Pad, adjusting (3.200)
Diagram Reference: 10
Get Part
67F−12171−00
Camshaft 1
Diagram Reference: 11
Get Part
67F−12181−00
Camshaft 2
Diagram Reference: 12
Get Part
93605−10108
Pin, dowel (8g8)
Diagram Reference: 13
Get Part
67F−11537−00
Gear, driven
Diagram Reference: 14
Get Part
90119−10M06
Bolt
Diagram Reference: 15
Get Part
93102−38M59
Oil seal
Diagram Reference: 16
Get Part
67F−46241−00
Belt
Diagram Reference: 17
Get Part
67F−11590−00
Tensioner assembly
Diagram Reference: 18
Get Part
90506−16M39
Spring, tension
Diagram Reference: 19
Get Part
90445−15M03
Hose (l23)
Diagram Reference: 20
Get Part
67F−11595−00
Plate,valve
Diagram Reference: 21
Get Part
90119−10M72
Bolt, with washer(6m6)
Diagram Reference: 22
Get Part
67F−11536−00
5−
Diagram Reference: 23
Get Part
90170−40003
Nut
Diagram Reference: 24
Get Part
90280−04008
Key woodruff 604115450000
Diagram Reference: 25
