F150AET (2009)
VALVE

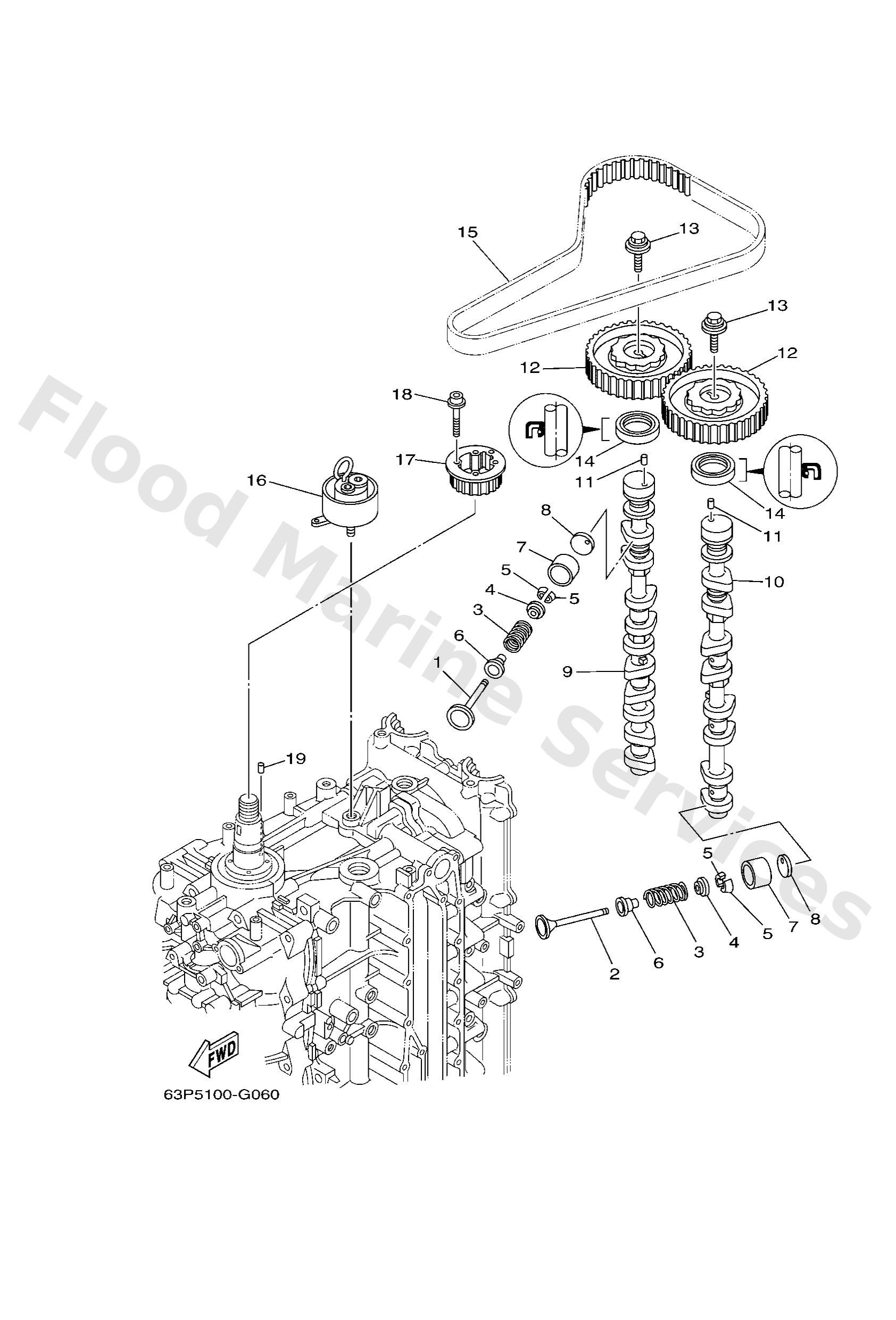

Diagram: VALVE
Parts List
69J1211100
Valve, intake
Diagram Reference: 1
Get Part
69J1212100
Valve, exhaust
Diagram Reference: 2
Get Part
69J1211301
Spring, valve inner
Diagram Reference: 3
Get Part
69J1211701
Retainer, valve spring
Diagram Reference: 4
Get Part
69J1211800
Cotter, valve
Diagram Reference: 5
Get Part
69J1211900
Seal, valve stem
Diagram Reference: 6
Get Part
69J1215300
Lifter, valve
Diagram Reference: 7
Get Part
6S112168K0
(UR)
Pad, adjusting (2.700)
Diagram Reference: 8
Get Part
6S112168J0
(UR)
Pad, adjusting (2.680)
Diagram Reference: 8
Get Part
6S112168H0
(UR)
Pad, Adjusting (2.660)
Diagram Reference: 8
Get Part
6S112168G0
(UR)
Pad, adjusting (2.640)
Diagram Reference: 8
Get Part
6S112168F0
(UR)
Pad, adjusting (2.620)
Diagram Reference: 8
Get Part
6S112168E0
(UR)
Pad, adjusting (2.600)
Diagram Reference: 8
Get Part
6S112168D0
(UR)
Pad, adjusting (2.580)
Diagram Reference: 8
Get Part
6S112168C0
(UR)
Pad, adjusting (2.560)
Diagram Reference: 8
Get Part
6S112168B0
(UR)
Pad, adjusting (2.540)
Diagram Reference: 8
Get Part
6S112168A0
(UR)
Pad, adjusting (2.520)
Diagram Reference: 8
Get Part
6S11216880
(UR)
Pad, adjusting (2.480)
Diagram Reference: 8
Get Part
6S11216870
(UR)
Pad, adjusting (2.460)
Diagram Reference: 8
Get Part
6S11216860
(UR)
Pad, adjusting (2.440)
Diagram Reference: 8
Get Part
6S11216850
(UR)
Pad, adjusting (2.420)
Diagram Reference: 8
Get Part
6S11216840
(UR)
Pad, adjusting (2.400)
Diagram Reference: 8
Get Part
6S11216830
(UR)
Pad, adjusting (2.380)
Diagram Reference: 8
Get Part
6S11216820
(UR)
Pad, adjusting (2.360)
Diagram Reference: 8
Get Part
6S11216810
(UR)
Pad, adjusting (2.340)
Diagram Reference: 8
Get Part
6S11216800
(UR)
Pad, adjusting (2.320)
Diagram Reference: 8
Get Part
6S11216890
(UR)
Pad, adjusting (2.500)
Diagram Reference: 8
Get Part
6S112168U0
(UR)
Pad, adjusting (2.860)
Diagram Reference: 8
Get Part
6S11216900
(UR)
Pad, adjusting (2.960)
Diagram Reference: 8
Get Part
6S112168Y0
(UR)
Pad, adjusting (2.940)
Diagram Reference: 8
Get Part
6S112168X0
(UR)
Pad, adjusting (2.920)
Diagram Reference: 8
Get Part
6S112168W0
(UR)
Pad, adjusting (2.900)
Diagram Reference: 8
Get Part
6S112168V0
(UR)
Pad, adjusting (2.880)
Diagram Reference: 8
Get Part
6S112168S0
(UR)
Pad, adjusting (2.820)
Diagram Reference: 8
Get Part
6S112168R0
(UR)
Pad, adjusting (2.800)
Diagram Reference: 8
Get Part
6S112168P0
(UR)
Pad, Adjusting (2.780)
Diagram Reference: 8
Get Part
6S112168N0
(UR)
Pad, adjusting (2.760)
Diagram Reference: 8
Get Part
6S112168M0
(UR)
Pad, adjusting (2.740)
Diagram Reference: 8
Get Part
6S112168L0
(UR)
Pad, adjusting (2.720)
Diagram Reference: 8
Get Part
6S112168T0
(UR)
Pad, Adjusting (2.840)
Diagram Reference: 8
Get Part
63P1217100
Camshaft 1
Diagram Reference: 9
Get Part
63P1218100
Camshaft 2
Diagram Reference: 10
Get Part
9360510108
Pin, dowel (8g8)
Diagram Reference: 11
Get Part
63P1153700
Gear, driven
Diagram Reference: 12
Get Part
68V1215700
Bolt
Diagram Reference: 13
Get Part
9310238008
Oil seal
Diagram Reference: 14
Get Part
63P4624100
Belt
Diagram Reference: 15
Get Part
63P1159001
Tensioner assembly
Diagram Reference: 16
Get Part
63P1153601
Gear, drive
Diagram Reference: 17
Get Part
9011005020
Bolt, hexagon socket head
Diagram Reference: 18
Get Part
9360517002
Pin, dowel
Diagram Reference: 19
Get Part
