F150FET (2024)
VALVE

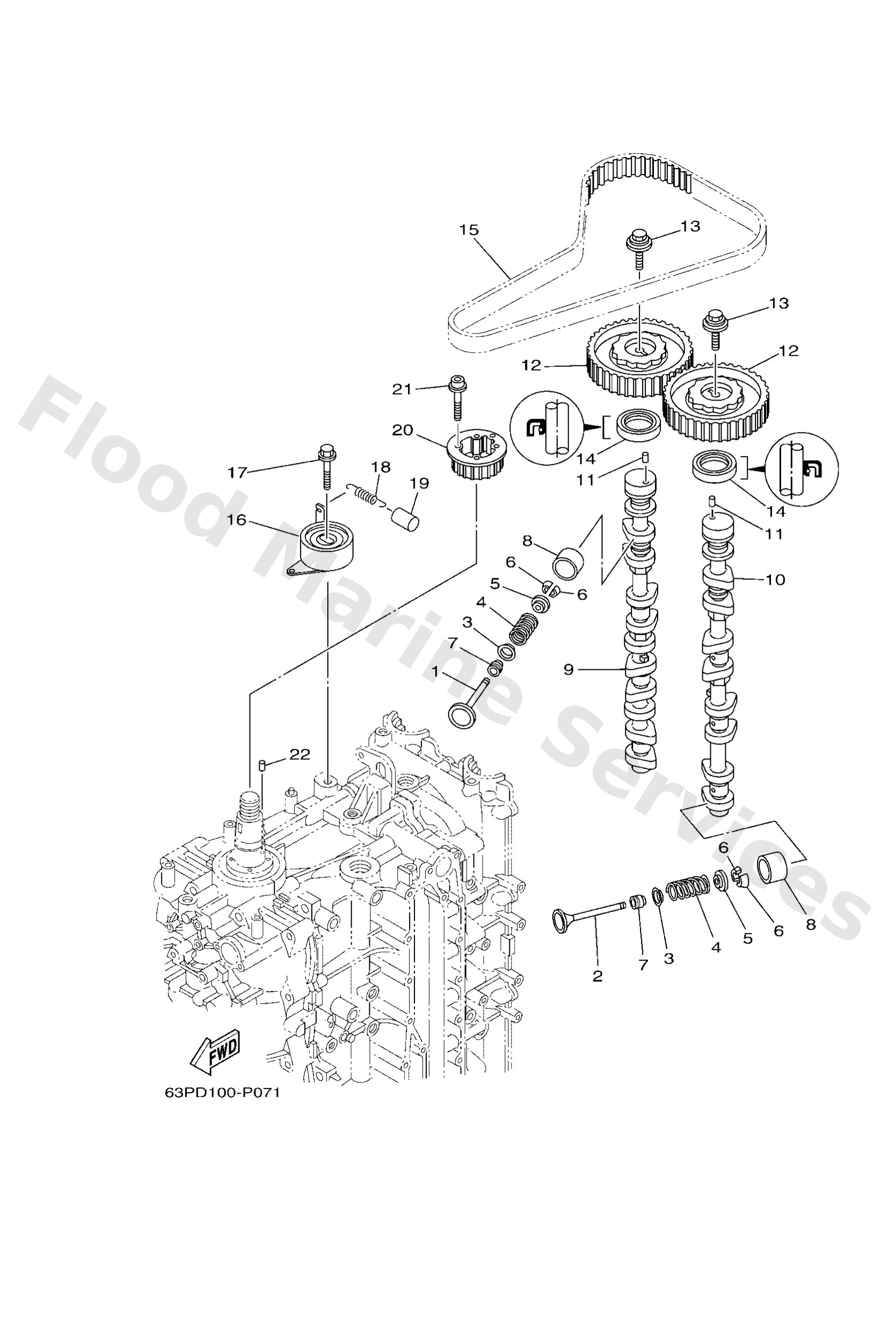

Diagram: VALVE
Parts List
63P1211100
Valve, intake
Diagram Reference: 1
Get Part
6BM1212100
Valve, exhaust
Diagram Reference: 2
Get Part
K0FA374300
Seat, valve spring
Diagram Reference: 3
Get Part
6CB1211300
Spring, valve inner
Diagram Reference: 4
Get Part
K0FA374100
Retainer, valve spring
Diagram Reference: 5
Get Part
K0FA374200
Lock, valve spring retainer
Diagram Reference: 6
Get Part
51Y1211900
Seal, valve stem
Diagram Reference: 7
Get Part
K0FA375100
(UR)
Lifter, valvek (3.000)
Diagram Reference: 8
Get Part
K0FA375110
(UR)
Lifter, valve (3.025)
Diagram Reference: 8
Get Part
K0FA375120
(UR)
Lifter, valve (3.050)
Diagram Reference: 8
Get Part
K0FA375130
(UR)
Lifter, valve (3.075)
Diagram Reference: 8
Get Part
K0FA375140
(UR)
Lifter, valve (3.100)
Diagram Reference: 8
Get Part
K0FA375150
(UR)
Lifter, valve (3.122)
Diagram Reference: 8
Get Part
K0FA375160
(UR)
Lifter, valve (3.142)
Diagram Reference: 8
Get Part
K0FA375170
(UR)
Lifter, valve (3.162)
Diagram Reference: 8
Get Part
K0FA375180
(UR)
Lifter, valve (3.182)
Diagram Reference: 8
Get Part
K0FA375190
(UR)
Lifter, valve (3.202)
Diagram Reference: 8
Get Part
K0FA3751A0
(UR)
Lifter, valve (3.222)
Diagram Reference: 8
Get Part
K0FA3751B0
(UR)
Lifter, valve (3.242)
Diagram Reference: 8
Get Part
K0FA3751C0
(UR)
Lifter, valve (3.262)
Diagram Reference: 8
Get Part
K0FA3751D0
(UR)
Lifter, valve (3.282)
Diagram Reference: 8
Get Part
K0FA3751E0
(UR)
Lifter, valve (3.302)
Diagram Reference: 8
Get Part
K0FA3751F0
(UR)
Lifter, valve (3.322)
Diagram Reference: 8
Get Part
K0FA3751G0
(UR)
Lifter, valve (3.342)
Diagram Reference: 8
Get Part
K0FA3751H0
(UR)
Lifter, valve (3.362)
Diagram Reference: 8
Get Part
K0FA3751J0
(UR)
Lifter, valve (3.382)
Diagram Reference: 8
Get Part
K0FA3751K0
(UR)
Lifter, valve (3.402)
Diagram Reference: 8
Get Part
K0FA3751L0
(UR)
Lifter, valve (3.422)
Diagram Reference: 8
Get Part
K0FA3751M0
(UR)
Lifter, valve (3.442)
Diagram Reference: 8
Get Part
K0FA3751N0
(UR)
Lifter, valve (3.462)
Diagram Reference: 8
Get Part
K0FA3751P0
(UR)
Lifter, valve (3.482)
Diagram Reference: 8
Get Part
K0FA3751R0
(UR)
Lifter, valve (3.502)
Diagram Reference: 8
Get Part
K0FA3751S0
(UR)
Lifter, valve (3.522)
Diagram Reference: 8
Get Part
K0FA3751T0
(UR)
Lifter, valve (3.542)
Diagram Reference: 8
Get Part
K0FA375300
(UR)
Lifter, valve (3.562)
Diagram Reference: 8
Get Part
K0FA375310
(UR)
Lifter, valve (3.582)
Diagram Reference: 8
Get Part
K0FA375320
(UR)
Lifter, valve (3.602)
Diagram Reference: 8
Get Part
K0FA375330
(UR)
Lifter, valve (3.625)
Diagram Reference: 8
Get Part
K0FA375340
(UR)
Lifter, valve (3.650)
Diagram Reference: 8
Get Part
K0FA375350
(UR)
Lifter, valve (3.675)
Diagram Reference: 8
Get Part
K0FA375360
(UR)
Lifter, valve (3.700)
Diagram Reference: 8
Get Part
K0FA375370
(UR)
Lifter, valve (3.725)
Diagram Reference: 8
Get Part
63P1217110
Camshaft 1
Diagram Reference: 9
Get Part
63P1218110
Camshaft 2
Diagram Reference: 10
Get Part
9360510108
Pin, dowel (8g8)
Diagram Reference: 11
Get Part
63P1153700
Gear, driven
Diagram Reference: 12
Get Part
9011910050
Bolt, with washer
Diagram Reference: 13
Get Part
9310238008
Oil seal
Diagram Reference: 14
Get Part
63P4624100
Belt
Diagram Reference: 15
Get Part
63P1159010
Tensioner assembly
Diagram Reference: 16
Get Part
9011910M07
Bolt (6f5)
Diagram Reference: 17
Get Part
9050616M39
Spring, tension
Diagram Reference: 18
Get Part
9044515M03
Hose (l23)
Diagram Reference: 19
Get Part
63P1153601
Gear, drive
Diagram Reference: 20
Get Part
9011005020
Bolt, hexagon socket head
Diagram Reference: 21
Get Part
9360517002
Pin, dowel
Diagram Reference: 22
Get Part
