F2.5AMH (2003)
VALVE

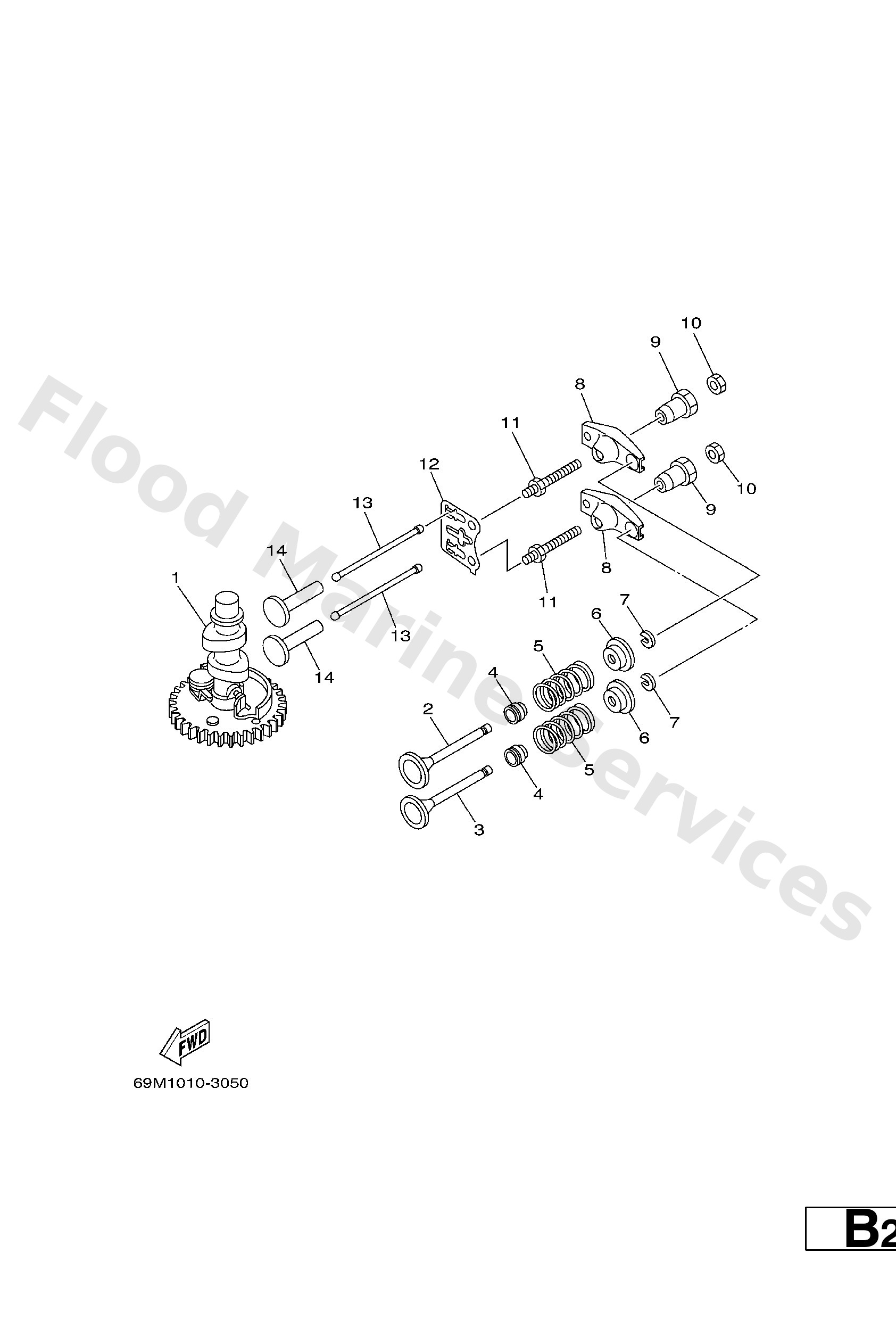

Diagram: VALVE
Parts List
Reference
Description
Price
1
69M−12170−20
Camshaft assembly 1
Loading…
↗
2
67D−12111−00
Valve, intake
Loading…
↗
3
67D−12121−00
Valve, exhaust
Loading…
↗
4
51Y−12119−00
Seal, valve stem
Loading…
↗
5
68D−E2113−00
Spring, valve inne
Loading…
↗
6
7NJ−12117−00
Retainer, valve spring
Loading…
↗
7
7NJ−12118−00
Cotter, valve
Loading…
↗
8
67D−12151−00
Arm, valve rocker
Loading…
↗
9
7FK−12165−00
Pivot, rocker arm
Loading…
↗
10
7FK−12158−00
Nut, lock
Loading…
↗
11
67D−12157−00
Bolt
Loading…
↗
12
69M−E2155−00
Guide, push rod
Loading…
↗
13
69M−12154−00
Rod, valve push
Loading…
↗
14
JA9−12153−00
Lifter, valve
Loading…
↗
